Datasheet ADR130 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Precision Series Sub-Band Gap Voltage Reference |
| Pages / Page | 16 / 3 — Data Sheet. ADR130. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table 1. … |
| Revision | D |
| File Format / Size | PDF / 629 Kb |
| Document Language | English |

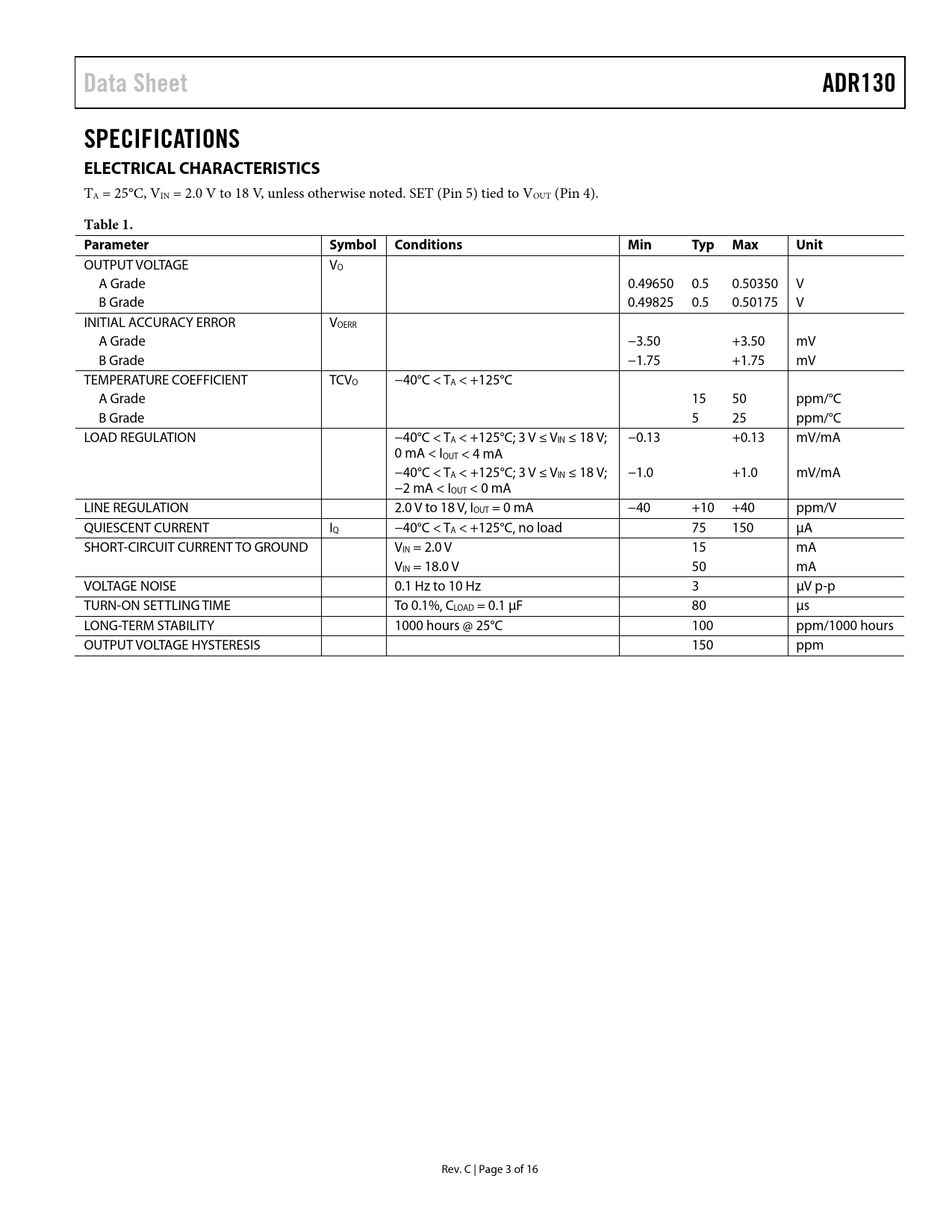

Data Sheet. ADR130. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table 1. Parameter. Symbol Conditions. Min. Typ Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet ADR130 SPECIFICATIONS ELECTRICAL CHARACTERISTICS
TA = 25°C, VIN = 2.0 V to 18 V, unless otherwise noted. SET (Pin 5) tied to VOUT (Pin 4).
Table 1. Parameter Symbol Conditions Min Typ Max Unit
OUTPUT VOLTAGE VO A Grade 0.49650 0.5 0.50350 V B Grade 0.49825 0.5 0.50175 V INITIAL ACCURACY ERROR VOERR A Grade −3.50 +3.50 mV B Grade −1.75 +1.75 mV TEMPERATURE COEFFICIENT TCVO −40°C < TA < +125°C A Grade 15 50 ppm/°C B Grade 5 25 ppm/°C LOAD REGULATION −40°C < TA < +125°C; 3 V ≤ VIN ≤ 18 V; −0.13 +0.13 mV/mA 0 mA < IOUT < 4 mA −40°C < TA < +125°C; 3 V ≤ VIN ≤ 18 V; −1.0 +1.0 mV/mA −2 mA < IOUT < 0 mA LINE REGULATION 2.0 V to 18 V, IOUT = 0 mA −40 +10 +40 ppm/V QUIESCENT CURRENT IQ −40°C < TA < +125°C, no load 75 150 µA SHORT-CIRCUIT CURRENT TO GROUND VIN = 2.0 V 15 mA VIN = 18.0 V 50 mA VOLTAGE NOISE 0.1 Hz to 10 Hz 3 µV p-p TURN-ON SETTLING TIME To 0.1%, CLOAD = 0.1 µF 80 µs LONG-TERM STABILITY 1000 hours @ 25°C 100 ppm/1000 hours OUTPUT VOLTAGE HYSTERESIS 150 ppm Rev. C | Page 3 of 16 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Terminology Theory of Operation Power Dissipation Considerations Input Capacitor Output Capacitor Application Notes Basic Voltage Reference Connection Stacking Reference ICs for Arbitrary Outputs Precision Current Source Outline Dimensions Ordering Guide
