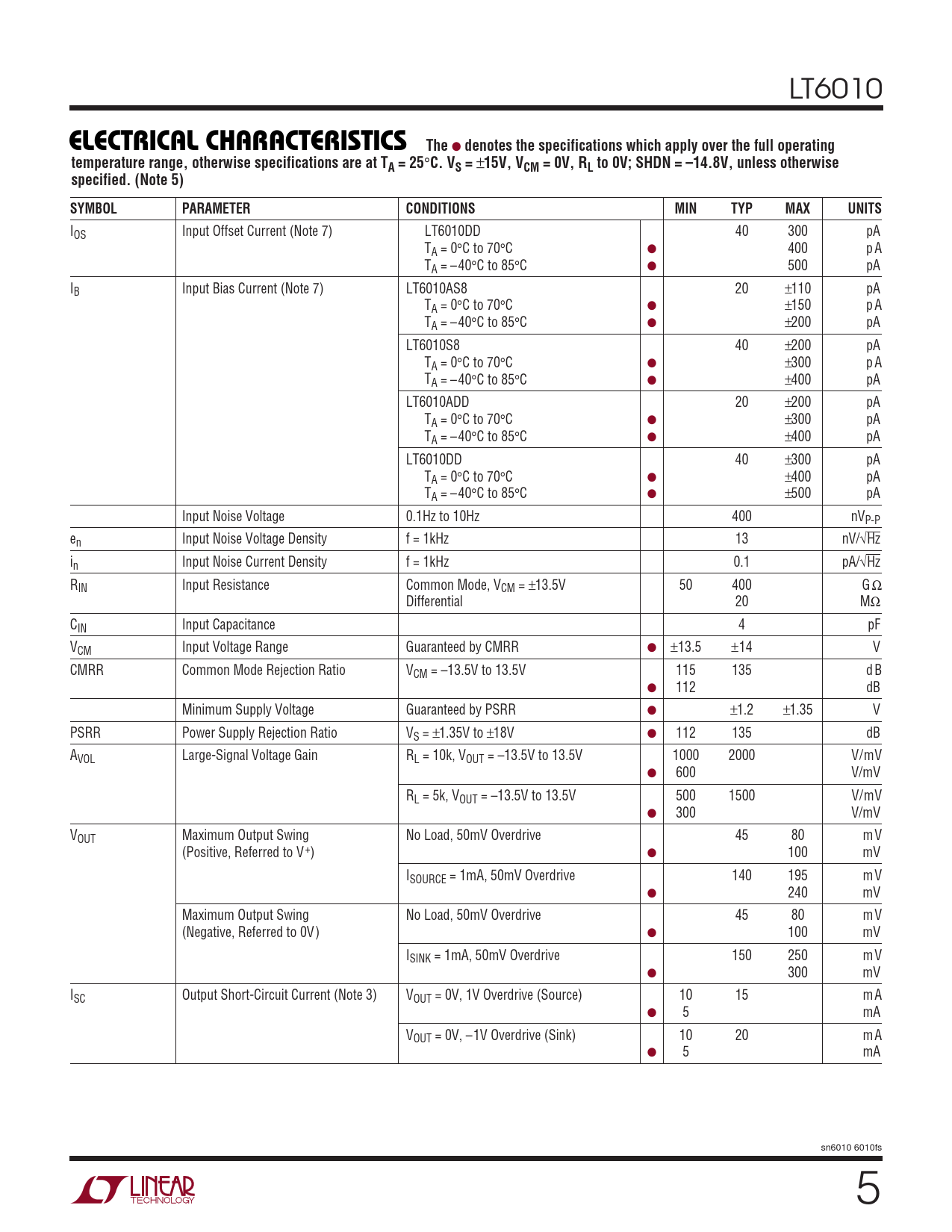

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LT6010
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25
°
C. VS =
±
15V, VCM = 0V, RL to 0V; SHDN = –14.8V, unless otherwise specified. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
IOS Input Offset Current (Note 7) LT6010DD 40 300 pA TA = 0°C to 70°C ● 400 p A TA = –40°C to 85°C ● 500 pA IB Input Bias Current (Note 7) LT6010AS8 20 ±110 pA TA = 0°C to 70°C ● ±150 p A TA = –40°C to 85°C ● ±200 pA LT6010S8 40 ±200 pA TA = 0°C to 70°C ● ±300 p A TA = –40°C to 85°C ● ±400 pA LT6010ADD 20 ±200 pA TA = 0°C to 70°C ● ±300 pA TA = –40°C to 85°C ● ±400 pA LT6010DD 40 ±300 pA TA = 0°C to 70°C ● ±400 pA TA = –40°C to 85°C ● ±500 pA Input Noise Voltage 0.1Hz to 10Hz 400 nVP-P en Input Noise Voltage Density f = 1kHz 13 nV/√Hz in Input Noise Current Density f = 1kHz 0.1 pA/√Hz RIN Input Resistance Common Mode, VCM = ±13.5V 50 400 G Ω Differential 20 MΩ CIN Input Capacitance 4 pF VCM Input Voltage Range Guaranteed by CMRR ● ±13.5 ±14 V CMRR Common Mode Rejection Ratio VCM = –13.5V to 13.5V 115 135 d B ● 112 dB Minimum Supply Voltage Guaranteed by PSRR ● ±1.2 ±1.35 V PSRR Power Supply Rejection Ratio VS = ±1.35V to ±18V ● 112 135 dB AVOL Large-Signal Voltage Gain RL = 10k, VOUT = –13.5V to 13.5V 1000 2000 V/mV ● 600 V/mV RL = 5k, VOUT = –13.5V to 13.5V 500 1500 V/mV ● 300 V/mV VOUT Maximum Output Swing No Load, 50mV Overdrive 45 80 m V (Positive, Referred to V+) ● 100 mV ISOURCE = 1mA, 50mV Overdrive 140 195 m V ● 240 mV Maximum Output Swing No Load, 50mV Overdrive 45 80 m V (Negative, Referred to 0V) ● 100 mV ISINK = 1mA, 50mV Overdrive 150 250 m V ● 300 mV ISC Output Short-Circuit Current (Note 3) VOUT = 0V, 1V Overdrive (Source) 10 15 m A ● 5 mA VOUT = 0V, –1V Overdrive (Sink) 10 20 m A ● 5 mA sn6010 6010fs 5
