Datasheet LTC1049 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Low Power Zero-Drift Operational Amplifier with Internal Capacitors |
| Pages / Page | 12 / 8 — Typical applicaTions. Low Power, Single Supply, Low Offset … |
| File Format / Size | PDF / 203 Kb |
| Document Language | English |
Typical applicaTions. Low Power, Single Supply, Low Offset Instrumentation Amp
Model Line for this Datasheet
Text Version of Document
LTC1049

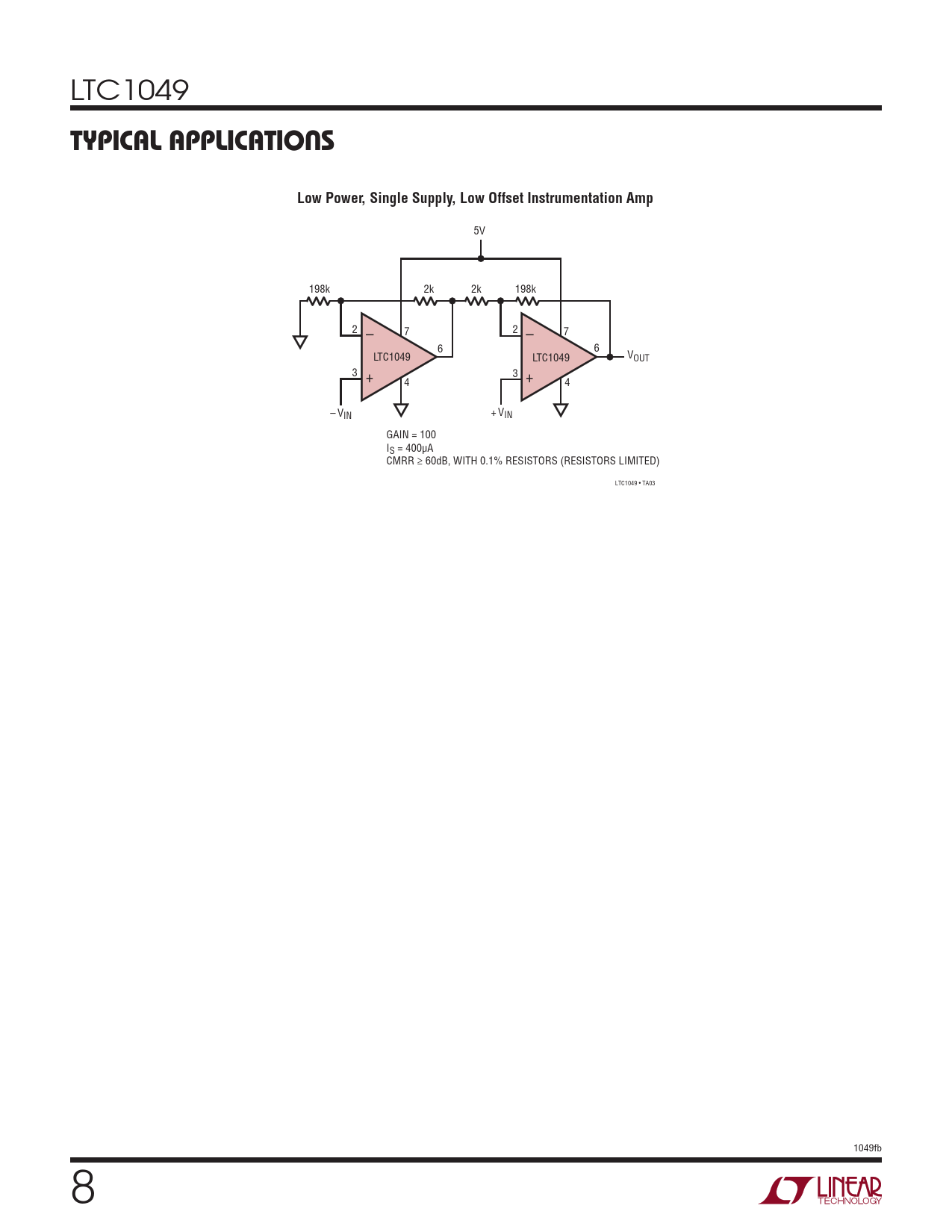

Typical applicaTions Low Power, Single Supply, Low Offset Instrumentation Amp
5V 198k 2k 2k 198k 2 – 7 2 – 7 6 6 LTC1049 V LTC1049 OUT 3 + 3 4 + 4 – VIN + VIN GAIN = 100 IS = 400µA CMRR ≥ 60dB, WITH 0.1% RESISTORS (RESISTORS LIMITED) LTC1049 • TA03 1049fb 8 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Package/order information Electrical Characteristics Typical Performance Characteristics Test Circuits Applications Information Typical Applications Package Description Typical Application
