Datasheet LTC1049 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Low Power Zero-Drift Operational Amplifier with Internal Capacitors |
| Pages / Page | 12 / 9 — package DescripTion. J8 Package. 8-Lead CERDIP (Narrow .300 Inch, … |
| File Format / Size | PDF / 203 Kb |
| Document Language | English |
package DescripTion. J8 Package. 8-Lead CERDIP (Narrow .300 Inch, Hermetic). OBSOLETE PACKAGE
Model Line for this Datasheet
Text Version of Document
LTC1049

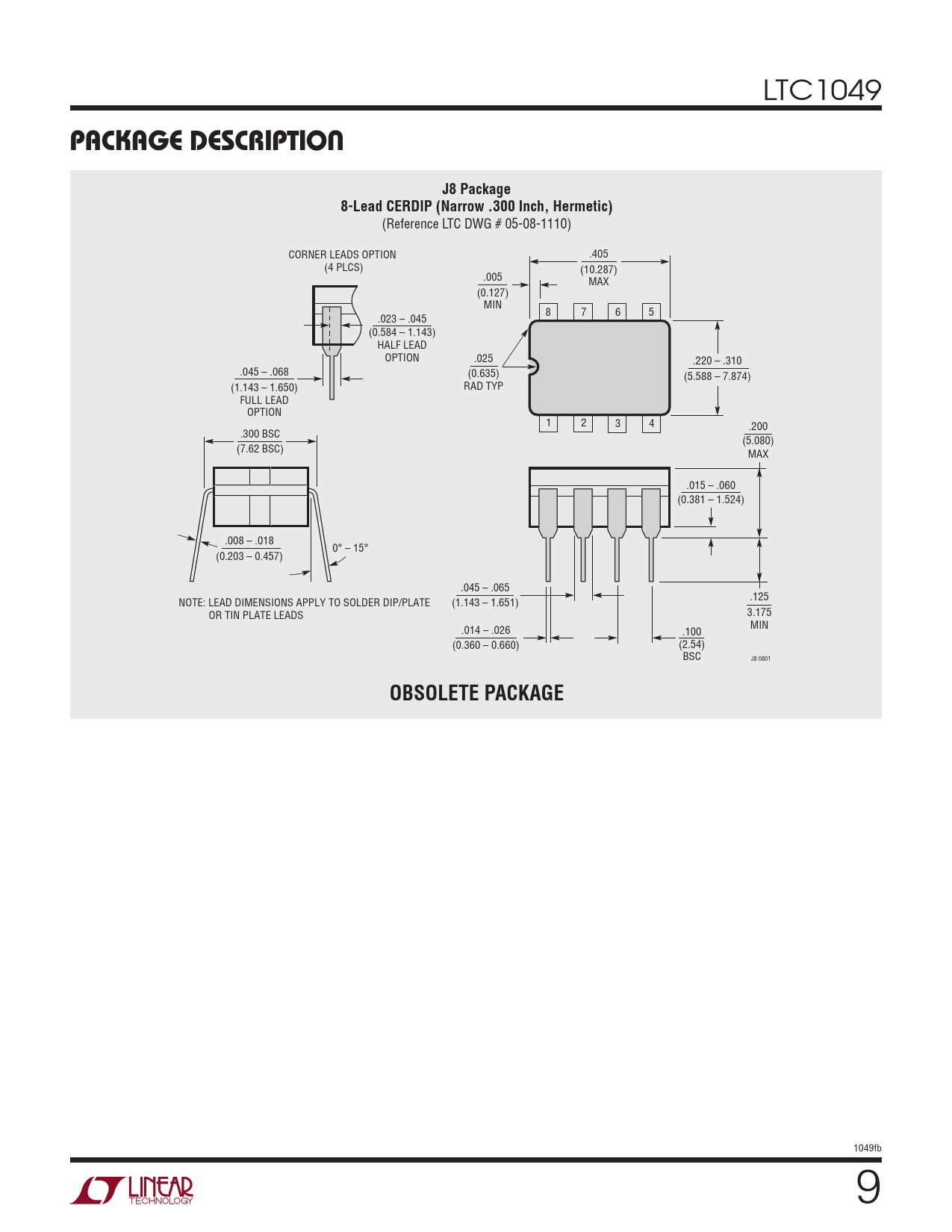

package DescripTion J8 Package 8-Lead CERDIP (Narrow .300 Inch, Hermetic)
(Reference LTC DWG # 05-08-1110) CORNER LEADS OPTION .405 (4 PLCS) (10.287) .005 MAX (0.127) MIN 8 7 6 5 .023 – .045 (0.584 – 1.143) HALF LEAD OPTION .025 .220 – .310 .045 – .068 (0.635) (5.588 – 7.874) (1.143 – 1.650) RAD TYP FULL LEAD OPTION 1 2 3 4 .200 .300 BSC (5.080) (7.62 BSC) MAX .015 – .060 (0.381 – 1.524) .008 – .018 0° – 15° (0.203 – 0.457) .045 – .065 .125 NOTE: LEAD DIMENSIONS APPLY TO SOLDER DIP/PLATE (1.143 – 1.651) 3.175 OR TIN PLATE LEADS .014 – .026 MIN .100 (0.360 – 0.660) (2.54) BSC J8 0801
