Datasheet ADA4945-1 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | High-Speed, ±0.3µV/°C Offset Drift, Fully Differential ADC Driver |
| Pages / Page | 18 / 6 — ADA4945-1. Preliminary Technical Data. Full Power Mode. Low Power Mode. … |
| Revision | PrC |
| File Format / Size | PDF / 468 Kb |
| Document Language | English |

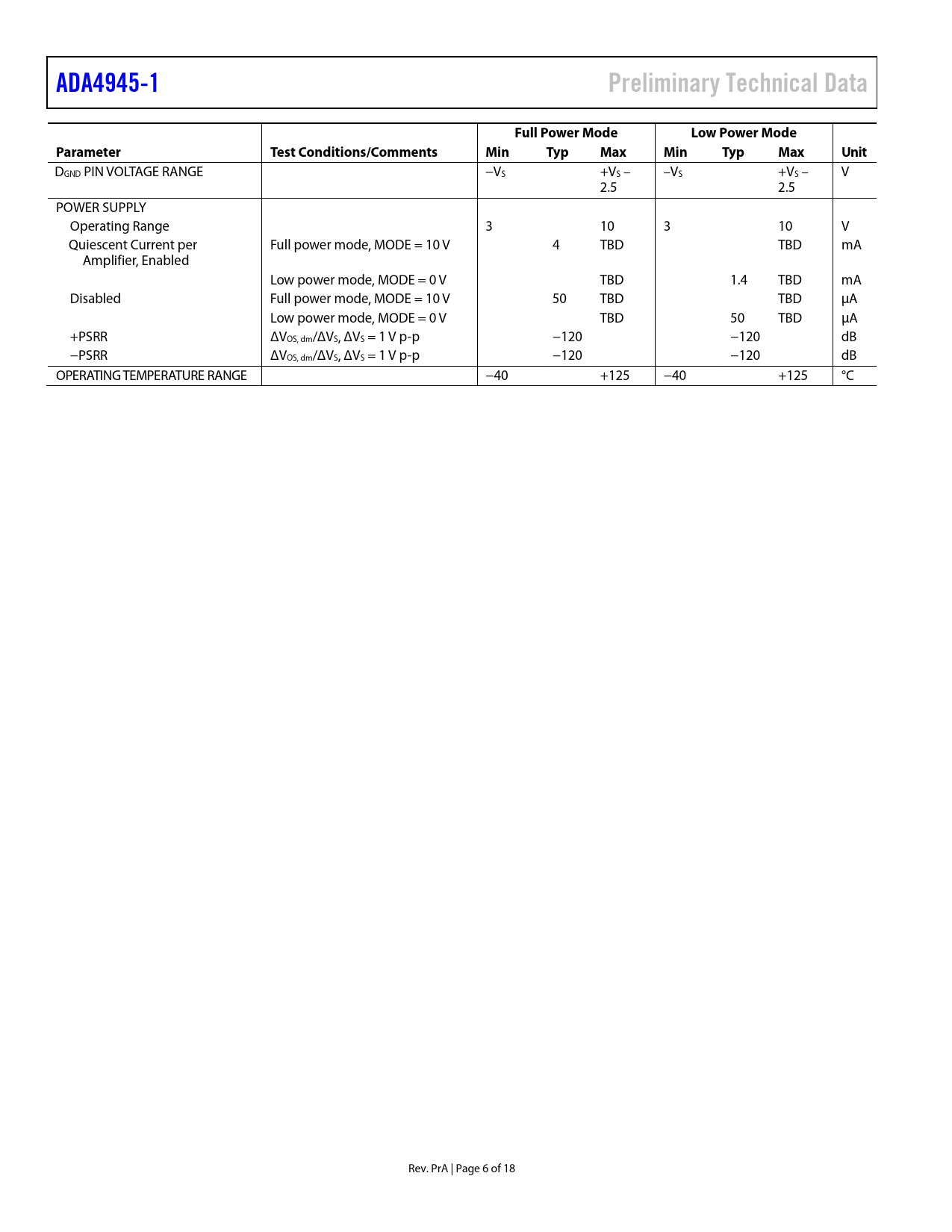

ADA4945-1. Preliminary Technical Data. Full Power Mode. Low Power Mode. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
ADA4945-1 Preliminary Technical Data Full Power Mode Low Power Mode Parameter Test Conditions/Comments Min Typ Max Min Typ Max Unit
DGND PIN VOLTAGE RANGE −VS +VS – –VS +VS – V 2.5 2.5 POWER SUPPLY Operating Range 3 10 3 10 V Quiescent Current per Full power mode, MODE = 10 V 4 TBD TBD mA Amplifier, Enabled Low power mode, MODE = 0 V TBD 1.4 TBD mA Disabled Full power mode, MODE = 10 V 50 TBD TBD µA Low power mode, MODE = 0 V TBD 50 TBD µA +PSRR ΔVOS, dm/ΔVS, ΔVS = 1 V p-p −120 −120 dB −PSRR ΔVOS, dm/ΔVS, ΔVS = 1 V p-p −120 −120 dB OPERATING TEMPERATURE RANGE −40 +125 −40 +125 °C Rev. PrA | Page 6 of 18 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Specifications Supply Voltage (VS) = 10 V Positive Input (+DIN) or Negative Input (–DIN) to Differential Output Voltage (VOUT, dm) Performance VOCM to VOUT, cm Performance General Performance VS = 5 V +DIN or –DIN to VOUT, dm Performance VOCM to VOUT, cm Performance General Performance VS = 3 V +DIN or –DIN to VOUT, dm Performance VOCM to VOUT, cm Performance General Performance Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Terminology Outline Dimensions
DGND PIN VOLTAGE RANGE −VS +VS – –VS +VS – V 2.5 2.5 POWER SUPPLY Operating Range 3 10 3 10 V Quiescent Current per Full power mode, MODE = 10 V 4 TBD TBD mA Amplifier, Enabled Low power mode, MODE = 0 V TBD 1.4 TBD mA Disabled Full power mode, MODE = 10 V 50 TBD TBD µA Low power mode, MODE = 0 V TBD 50 TBD µA +PSRR ΔVOS, dm/ΔVS, ΔVS = 1 V p-p −120 −120 dB −PSRR ΔVOS, dm/ΔVS, ΔVS = 1 V p-p −120 −120 dB OPERATING TEMPERATURE RANGE −40 +125 −40 +125 °C Rev. PrA | Page 6 of 18 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Specifications Supply Voltage (VS) = 10 V Positive Input (+DIN) or Negative Input (–DIN) to Differential Output Voltage (VOUT, dm) Performance VOCM to VOUT, cm Performance General Performance VS = 5 V +DIN or –DIN to VOUT, dm Performance VOCM to VOUT, cm Performance General Performance VS = 3 V +DIN or –DIN to VOUT, dm Performance VOCM to VOUT, cm Performance General Performance Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Pin Configuration and Function Descriptions Terminology Outline Dimensions
