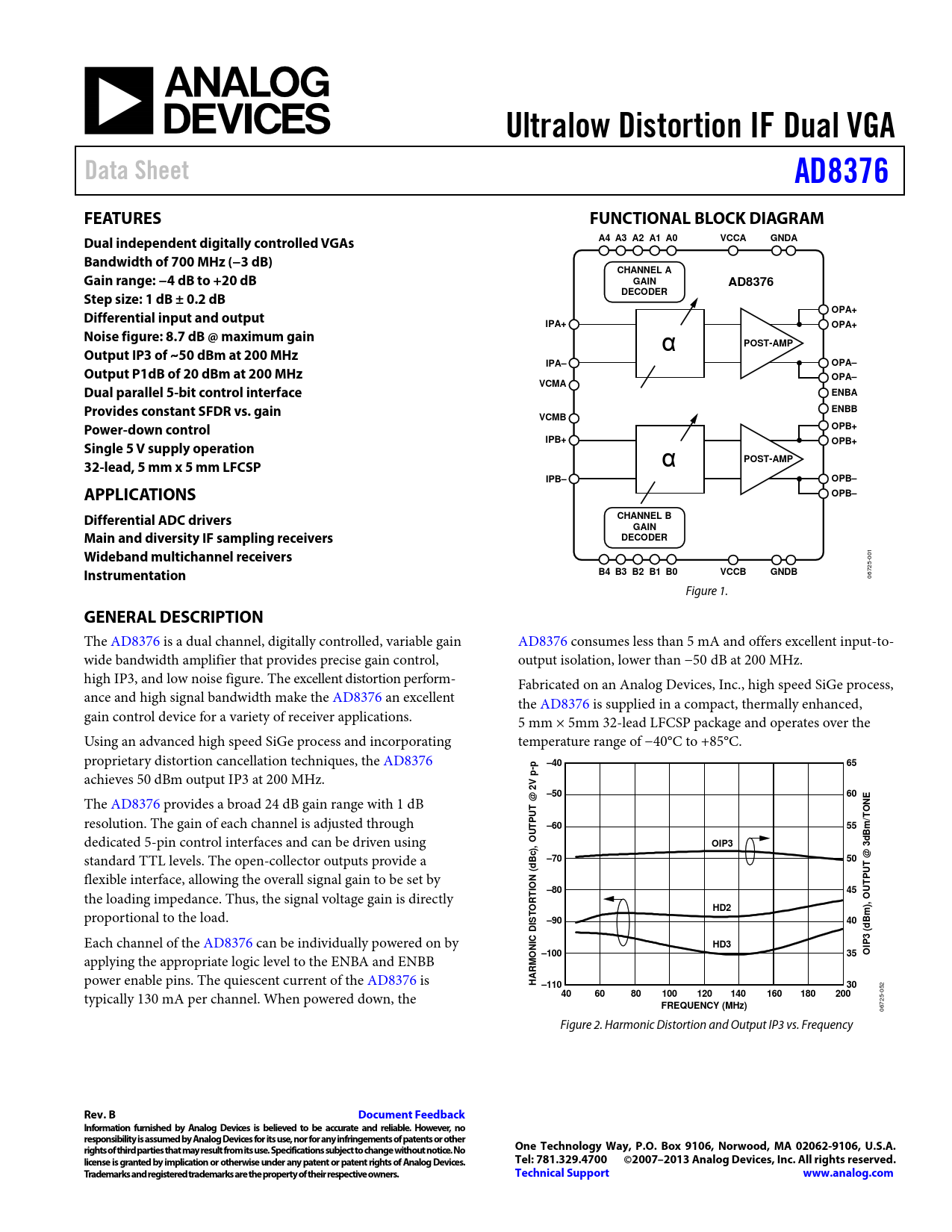

Ultralow Distortion IF Dual VGA Data Sheet AD8376 FEATURES FUNCTIONAL BLOCK DIAGRAM Dual independent digitally controlled VGAs A4 A3 A2 A1 A0 VCCA GNDA Bandwidth of 700 MHz (−3 dB) CHANNEL A Gain range: −4 dB to +20 dB GAIN AD8376 Step size: 1 dB ± 0.2 dB DECODER Differential input and output OPA+ IPA+ OPA+ Noise figure: 8.7 dB @ maximum gain POST-AMP
α
Output IP3 of ~50 dBm at 200 MHz IPA– OPA– Output P1dB of 20 dBm at 200 MHz OPA– VCMA Dual parallel 5-bit control interface ENBA Provides constant SFDR vs. gain ENBB VCMB Power-down control OPB+ IPB+ Single 5 V supply operation OPB+ 32-lead, 5 mm x 5 mm LFCSP POST-AMP
α
IPB– OPB– APPLICATIONS OPB– Differential ADC drivers CHANNEL B GAIN Main and diversity IF sampling receivers DECODER Wideband multichannel receivers
001
Instrumentation B4 B3 B2 B1 B0 VCCB GNDB
06725- Figure 1.
GENERAL DESCRIPTION
The AD8376 is a dual channel, digitally controlled, variable gain AD8376 consumes less than 5 mA and offers excellent input-to- wide bandwidth amplifier that provides precise gain control, output isolation, lower than −50 dB at 200 MHz. high IP3, and low noise figure. The excel ent distortion perform- Fabricated on an Analog Devices, Inc., high speed SiGe process, ance and high signal bandwidth make the AD8376 an excellent the AD8376 is supplied in a compact, thermally enhanced, gain control device for a variety of receiver applications. 5 mm × 5mm 32-lead LFCSP package and operates over the Using an advanced high speed SiGe process and incorporating temperature range of −40°C to +85°C. proprietary distortion cancel ation techniques, the AD8376
p –40 65
achieves 50 dBm output IP3 at 200 MHz.
p- V 2 –50 60
The AD8376 provides a broad 24 dB gain range with 1 dB
E T @ U
resolution. The gain of each channel is adjusted through
/TON TP –60 55 m
dedicated 5-pin control interfaces and can be driven using
dB OIP3 ), OU 3
standard TTL levels. The open-col ector outputs provide a
c –70 50 dB T @ U
flexible interface, allowing the overall signal gain to be set by
( TP
the loading impedance. Thus, the signal voltage gain is directly
–80 45 TION ), OU
proportional to the load.
HD2 TOR m IS –90 40 dB D (
Each channel of the AD8376 can be individually powered on by
3 IC HD3 OIP
applying the appropriate logic level to the ENBA and ENBB
ON –100 35 M R
power enable pins. The quiescent current of the AD8376 is
A H –110 30
typical y 130 mA per channel. When powered down, the
40 60 80 100 120 140 160 180 200
052
FREQUENCY (MHz)
06725- Figure 2. Harmonic Distortion and Output IP3 vs. Frequency
