Datasheet AD8376 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Ultralow Distortion IF Dual VGA |
| Pages / Page | 24 / 5 — Data Sheet. AD8376. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. … |
| Revision | B |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |

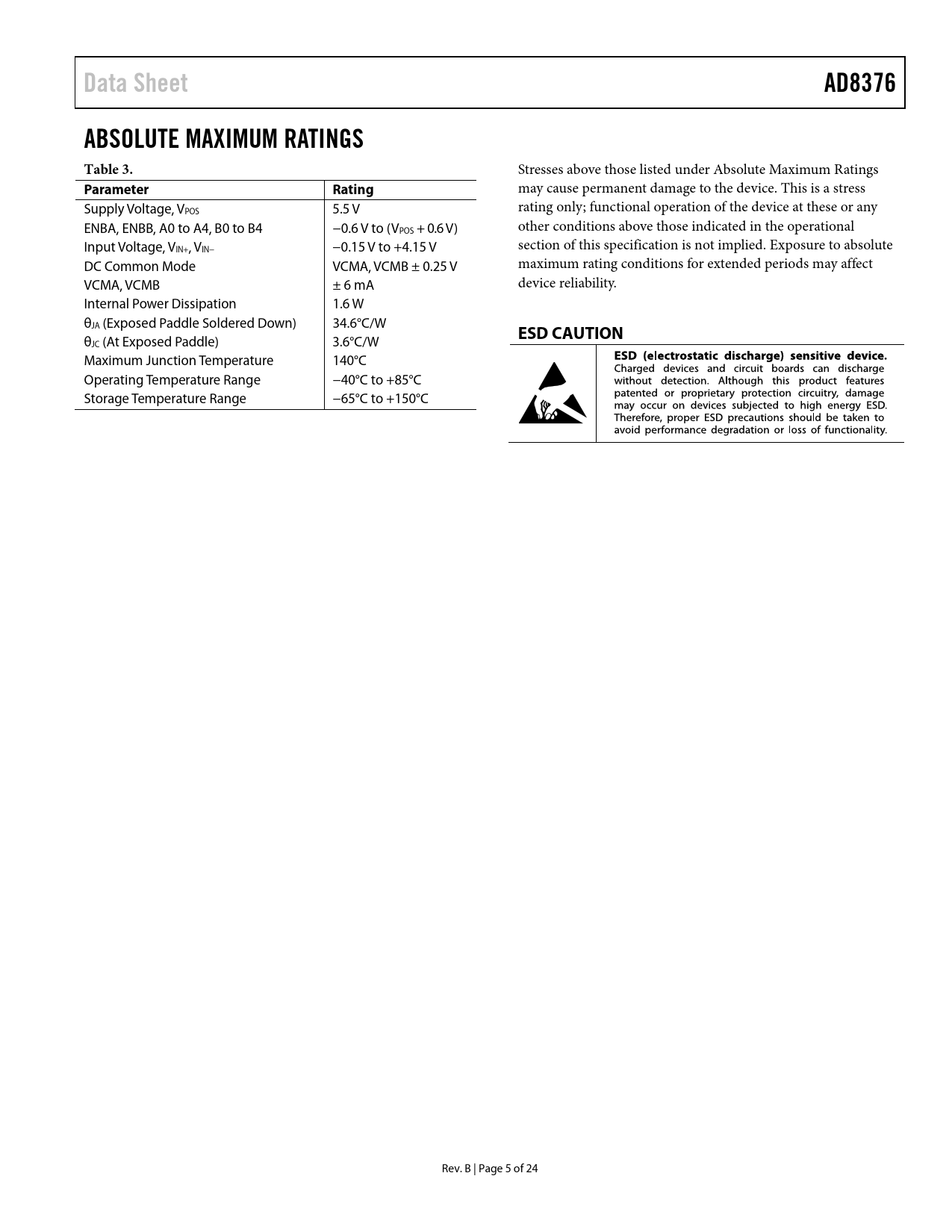

Data Sheet. AD8376. ABSOLUTE MAXIMUM RATINGS Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8376 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage, VPOS 5.5 V rating only; functional operation of the device at these or any ENBA, ENBB, A0 to A4, B0 to B4 −0.6 V to (VPOS + 0.6 V) other conditions above those indicated in the operational Input Voltage, VIN+, VIN− −0.15 V to +4.15 V section of this specification is not implied. Exposure to absolute DC Common Mode VCMA, VCMB ± 0.25 V maximum rating conditions for extended periods may affect VCMA, VCMB ± 6 mA device reliability. Internal Power Dissipation 1.6 W θJA (Exposed Paddle Soldered Down) 34.6°C/W
ESD CAUTION
θJC (At Exposed Paddle) 3.6°C/W Maximum Junction Temperature 140°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Rev. B | Page 5 of 24 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Circuit Description Basic Structure Input System Output Amplifier Gain Control Applications Basic Connections Single-Ended-to-Differential Conversion Broadband Operation ADC Interfacing Layout Considerations Characterization Test Circuits Differential-to-Differential Characterization Evaluation Board Outline Dimensions Ordering Guide
