LT6233/LT6233-10 LT6234/LT6235
absoluTe MaxiMuM raTings (Note 1)
Total Supply Voltage (V+ to V–) ..12.6V Junction Temperature (DD Package) .. 125°C Input Current (Note 2) ... ±40mA Storage Temperature Range .. –65°C to 150°C Output Short-Circuit Duration (Note 3) .. Indefinite Storage Temperature Range Operating Temperature Range (Note 4)..–40°C to 85°C (DD Package) .. –65°C to 125°C Specified Temperature Range (Note 5) ..–40°C to 85°C Lead Temperature (Soldering, 10 sec) ...300°C Junction Temperature ... 150°C
pin conFiguraTion

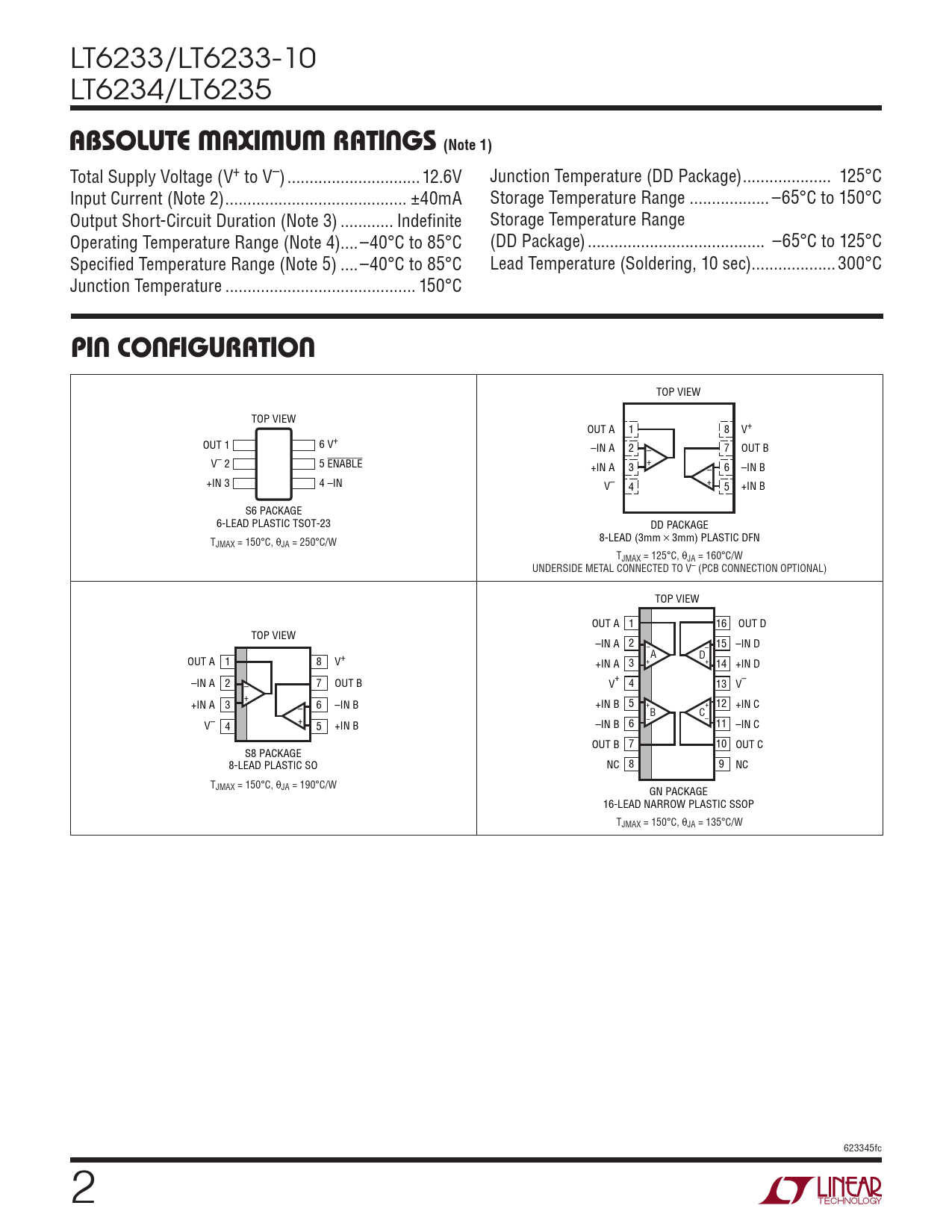

TOP VIEW TOP VIEW OUT A 1 8 V+ OUT 1 6 V+ –IN A 2 – 7 OUT B V– 2 5 ENABLE +IN A 3 + – 6 –IN B +IN 3 4 –IN V– 4 + 5 +IN B S6 PACKAGE 6-LEAD PLASTIC TSOT-23 DD PACKAGE T 8-LEAD (3mm × 3mm) PLASTIC DFN JMAX = 150°C, θJA = 250°C/W TJMAX = 125°C, θJA = 160°C/W UNDERSIDE METAL CONNECTED TO V– (PCB CONNECTION OPTIONAL) TOP VIEW OUT A 1 16 OUT D TOP VIEW –IN A 2 – – 15 –IN D A D OUT A 1 8 V+ +IN A 3 + + 14 +IN D –IN A 2 – 7 OUT B V+ 4 13 V– +IN A 3 + 6 –IN B +IN B 5 + – + 12 +IN C –B C – V– 4 + 5 +IN B –IN B 6 11 –IN C OUT B 7 10 OUT C S8 PACKAGE 8-LEAD PLASTIC SO NC 8 9 NC TJMAX = 150°C, θJA = 190°C/W GN PACKAGE 16-LEAD NARROW PLASTIC SSOP TJMAX = 150°C, θJA = 135°C/W 623345fc 2 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications Package Description Revision History Typical Applications Related Parts
