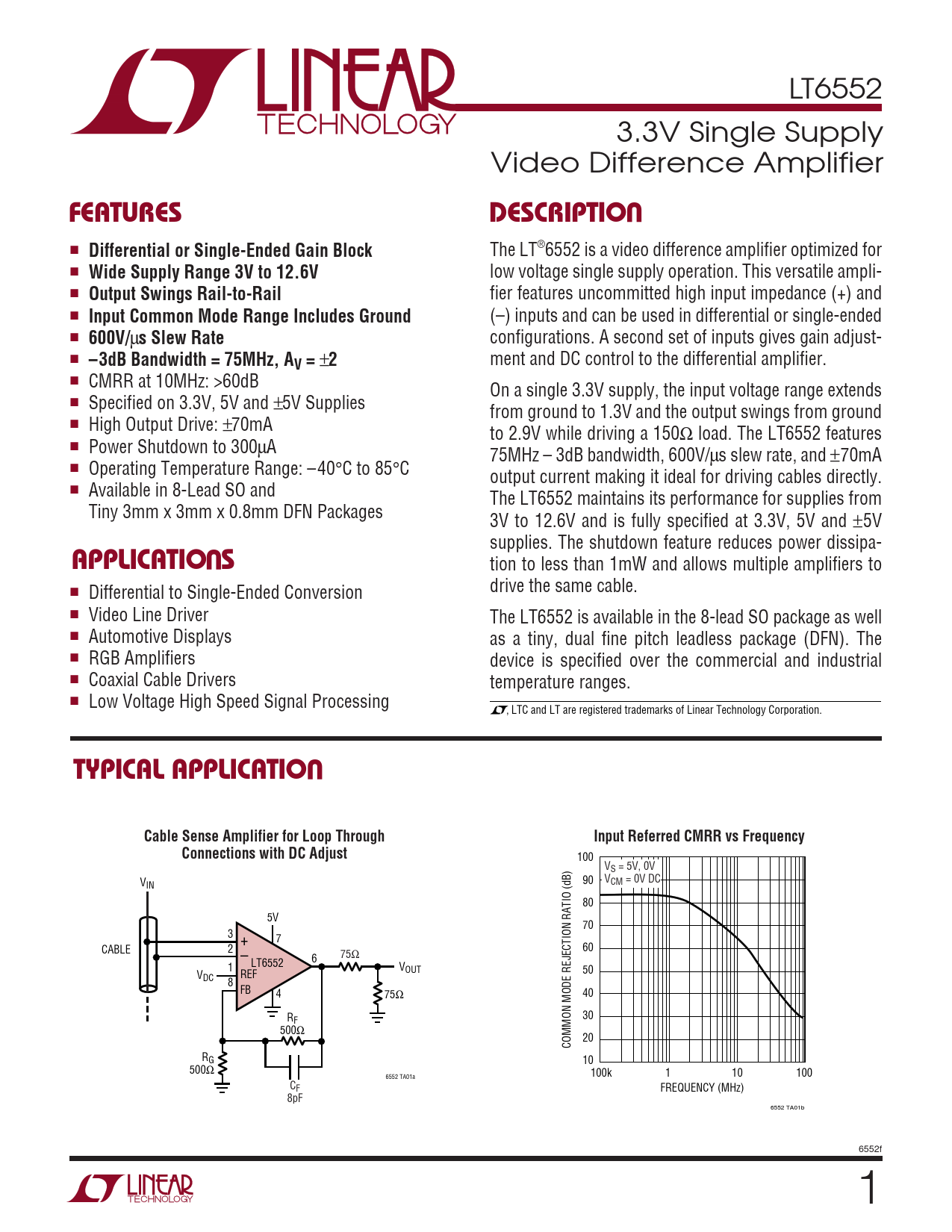

LT6552 3.3V Single Supply Video Difference Amplifier
U FEATURES DESCRIPTIO
■
Differential or Single-Ended Gain Block
The LT®6552 is a video difference amplifier optimized for ■
Wide Supply Range 3V to 12.6V
low voltage single supply operation. This versatile ampli- ■
Output Swings Rail-to-Rail
fier features uncommitted high input impedance (+) and ■
Input Common Mode Range Includes Ground
(–) inputs and can be used in differential or single-ended ■
600V/
µ
s Slew Rate
configurations. A second set of inputs gives gain adjust- ■
–3dB Bandwidth = 75MHz, A
ment and DC control to the differential amplifier.
V =
±
2
■ CMRR at 10MHz: >60dB On a single 3.3V supply, the input voltage range extends ■ Specified on 3.3V, 5V and ±5V Supplies from ground to 1.3V and the output swings from ground ■ High Output Drive: ±70mA to 2.9V while driving a 150Ω load. The LT6552 features ■ Power Shutdown to 300µA 75MHz – 3dB bandwidth, 600V/µs slew rate, and ±70mA ■ Operating Temperature Range: –40°C to 85°C output current making it ideal for driving cables directly. ■ Available in 8-Lead SO and The LT6552 maintains its performance for supplies from Tiny 3mm x 3mm x 0.8mm DFN Packages 3V to 12.6V and is fully specified at 3.3V, 5V and ±5V
U
supplies. The shutdown feature reduces power dissipa-
APPLICATIO S
tion to less than 1mW and allows multiple amplifiers to ■ Differential to Single-Ended Conversion drive the same cable. ■ Video Line Driver The LT6552 is available in the 8-lead SO package as well ■ Automotive Displays as a tiny, dual fine pitch leadless package (DFN). The ■ RGB Amplifiers device is specified over the commercial and industrial ■ Coaxial Cable Drivers temperature ranges. ■ Low Voltage High Speed Signal Processing , LTC and LT are registered trademarks of Linear Technology Corporation.
U TYPICAL APPLICATIO Cable Sense Amplifier for Loop Through Input Referred CMRR vs Frequency Connections with DC Adjust
100 VS = 5V, 0V V 90 V IN CM = 0V DC 80 5V 70 3 7 + CABLE 2 60 – 6 75Ω LT6552 1 VOUT V REF 50 DC 8 FB 4 75Ω 40 R 30 F 500Ω 20 COMMON MODE REJECTION RATIO (dB) RG 10 500Ω 100k 1 10 100 6552 TA01a CF FREQUENCY (MHz) 8pF 6552 TA01b 6552f 1
