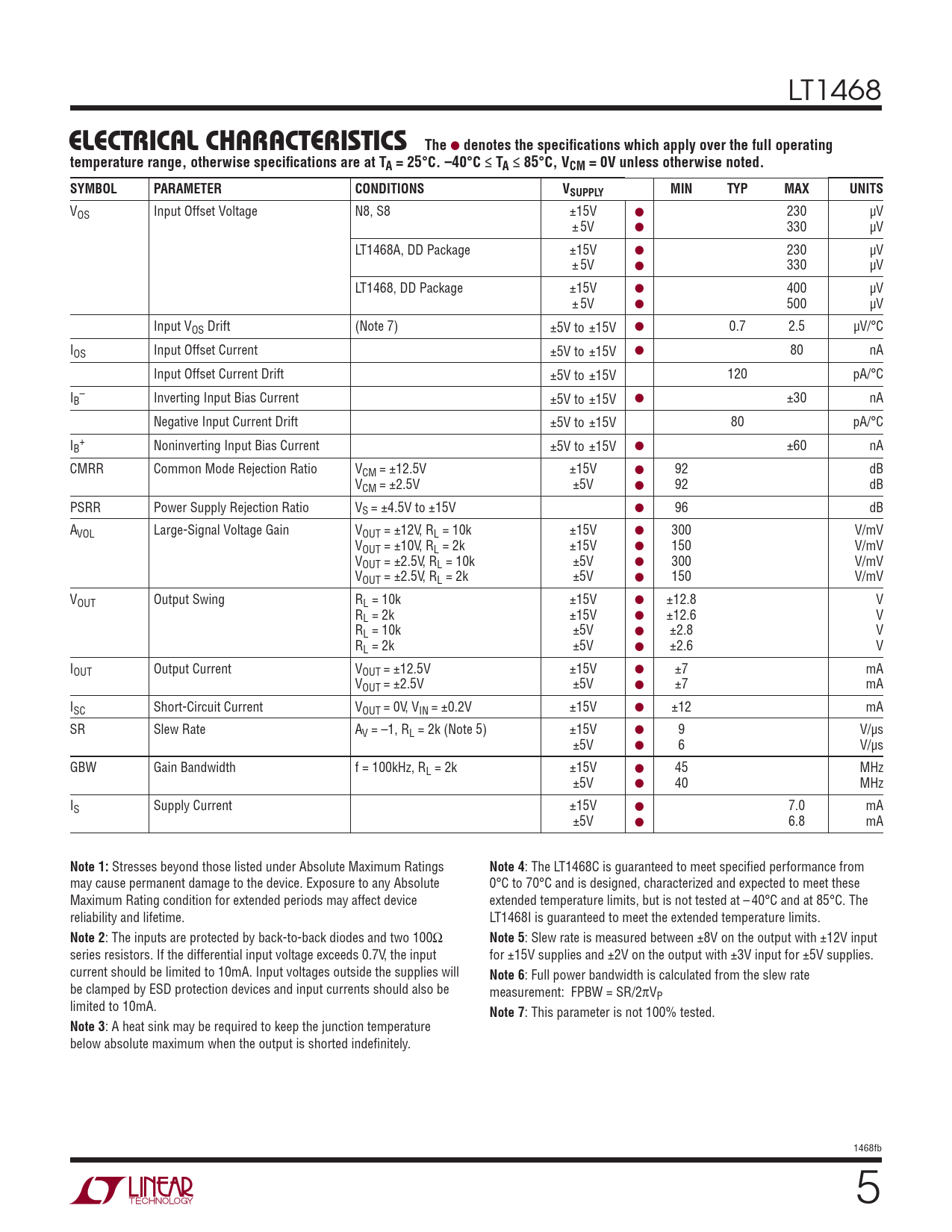

LT1468
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. –40°C ≤ TA ≤ 85°C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage N8, S8 ±15V ● 230 μV ± 5V ● 330 μV LT1468A, DD Package ±15V ● 230 μV ± 5V ● 330 μV LT1468, DD Package ±15V ● 400 μV ± 5V ● 500 μV Input VOS Drift (Note 7) ±5V to ±15V ● 0.7 2.5 μV/°C IOS Input Offset Current ±5V to ±15V ● 80 nA Input Offset Current Drift ±5V to ±15V 120 pA/°C I – B Inverting Input Bias Current ±5V to ±15V ● ±30 nA Negative Input Current Drift ±5V to ±15V 80 pA/°C I + B Noninverting Input Bias Current ±5V to ±15V ● ±60 nA CMRR Common Mode Rejection Ratio VCM = ±12.5V ±15V ● 92 dB VCM = ±2.5V ±5V ● 92 dB PSRR Power Supply Rejection Ratio VS = ±4.5V to ±15V ● 96 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 10k ±15V ● 300 V/mV VOUT = ±10V, RL = 2k ±15V ● 150 V/mV VOUT = ±2.5V, RL = 10k ±5V ● 300 V/mV VOUT = ±2.5V, RL = 2k ±5V ● 150 V/mV VOUT Output Swing RL = 10k ±15V ● ±12.8 V RL = 2k ±15V ● ±12.6 V RL = 10k ±5V ● ±2.8 V RL = 2k ±5V ● ±2.6 V IOUT Output Current VOUT = ±12.5V ±15V ● ±7 mA VOUT = ±2.5V ±5V ● ±7 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±0.2V ±15V ● ±12 mA SR Slew Rate AV = –1, RL = 2k (Note 5) ±15V ● 9 V/μs ±5V ● 6 V/μs GBW Gain Bandwidth f = 100kHz, RL = 2k ±15V ● 45 MHz ±5V ● 40 MHz IS Supply Current ±15V ● 7.0 mA ±5V ● 6.8 mA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 4
: The LT1468C is guaranteed to meet specifi ed performance from may cause permanent damage to the device. Exposure to any Absolute 0°C to 70°C and is designed, characterized and expected to meet these Maximum Rating condition for extended periods may affect device extended temperature limits, but is not tested at – 40°C and at 85°C. The reliability and lifetime. LT1468I is guaranteed to meet the extended temperature limits.
Note 2
: The inputs are protected by back-to-back diodes and two 100Ω
Note 5
: Slew rate is measured between ±8V on the output with ±12V input series resistors. If the differential input voltage exceeds 0.7V, the input for ±15V supplies and ±2V on the output with ±3V input for ±5V supplies. current should be limited to 10mA. Input voltages outside the supplies will
Note 6
: Full power bandwidth is calculated from the slew rate be clamped by ESD protection devices and input currents should also be measurement: FPBW = SR/2πVP limited to 10mA.
Note 7
: This parameter is not 100% tested.
Note 3
: A heat sink may be required to keep the junction temperature below absolute maximum when the output is shorted indefi nitely. 1468fb 5
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. –40°C ≤ TA ≤ 85°C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage N8, S8 ±15V ● 230 μV ± 5V ● 330 μV LT1468A, DD Package ±15V ● 230 μV ± 5V ● 330 μV LT1468, DD Package ±15V ● 400 μV ± 5V ● 500 μV Input VOS Drift (Note 7) ±5V to ±15V ● 0.7 2.5 μV/°C IOS Input Offset Current ±5V to ±15V ● 80 nA Input Offset Current Drift ±5V to ±15V 120 pA/°C I – B Inverting Input Bias Current ±5V to ±15V ● ±30 nA Negative Input Current Drift ±5V to ±15V 80 pA/°C I + B Noninverting Input Bias Current ±5V to ±15V ● ±60 nA CMRR Common Mode Rejection Ratio VCM = ±12.5V ±15V ● 92 dB VCM = ±2.5V ±5V ● 92 dB PSRR Power Supply Rejection Ratio VS = ±4.5V to ±15V ● 96 dB AVOL Large-Signal Voltage Gain VOUT = ±12V, RL = 10k ±15V ● 300 V/mV VOUT = ±10V, RL = 2k ±15V ● 150 V/mV VOUT = ±2.5V, RL = 10k ±5V ● 300 V/mV VOUT = ±2.5V, RL = 2k ±5V ● 150 V/mV VOUT Output Swing RL = 10k ±15V ● ±12.8 V RL = 2k ±15V ● ±12.6 V RL = 10k ±5V ● ±2.8 V RL = 2k ±5V ● ±2.6 V IOUT Output Current VOUT = ±12.5V ±15V ● ±7 mA VOUT = ±2.5V ±5V ● ±7 mA ISC Short-Circuit Current VOUT = 0V, VIN = ±0.2V ±15V ● ±12 mA SR Slew Rate AV = –1, RL = 2k (Note 5) ±15V ● 9 V/μs ±5V ● 6 V/μs GBW Gain Bandwidth f = 100kHz, RL = 2k ±15V ● 45 MHz ±5V ● 40 MHz IS Supply Current ±15V ● 7.0 mA ±5V ● 6.8 mA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 4
: The LT1468C is guaranteed to meet specifi ed performance from may cause permanent damage to the device. Exposure to any Absolute 0°C to 70°C and is designed, characterized and expected to meet these Maximum Rating condition for extended periods may affect device extended temperature limits, but is not tested at – 40°C and at 85°C. The reliability and lifetime. LT1468I is guaranteed to meet the extended temperature limits.
Note 2
: The inputs are protected by back-to-back diodes and two 100Ω
Note 5
: Slew rate is measured between ±8V on the output with ±12V input series resistors. If the differential input voltage exceeds 0.7V, the input for ±15V supplies and ±2V on the output with ±3V input for ±5V supplies. current should be limited to 10mA. Input voltages outside the supplies will
Note 6
: Full power bandwidth is calculated from the slew rate be clamped by ESD protection devices and input currents should also be measurement: FPBW = SR/2πVP limited to 10mA.
Note 7
: This parameter is not 100% tested.
Note 3
: A heat sink may be required to keep the junction temperature below absolute maximum when the output is shorted indefi nitely. 1468fb 5
