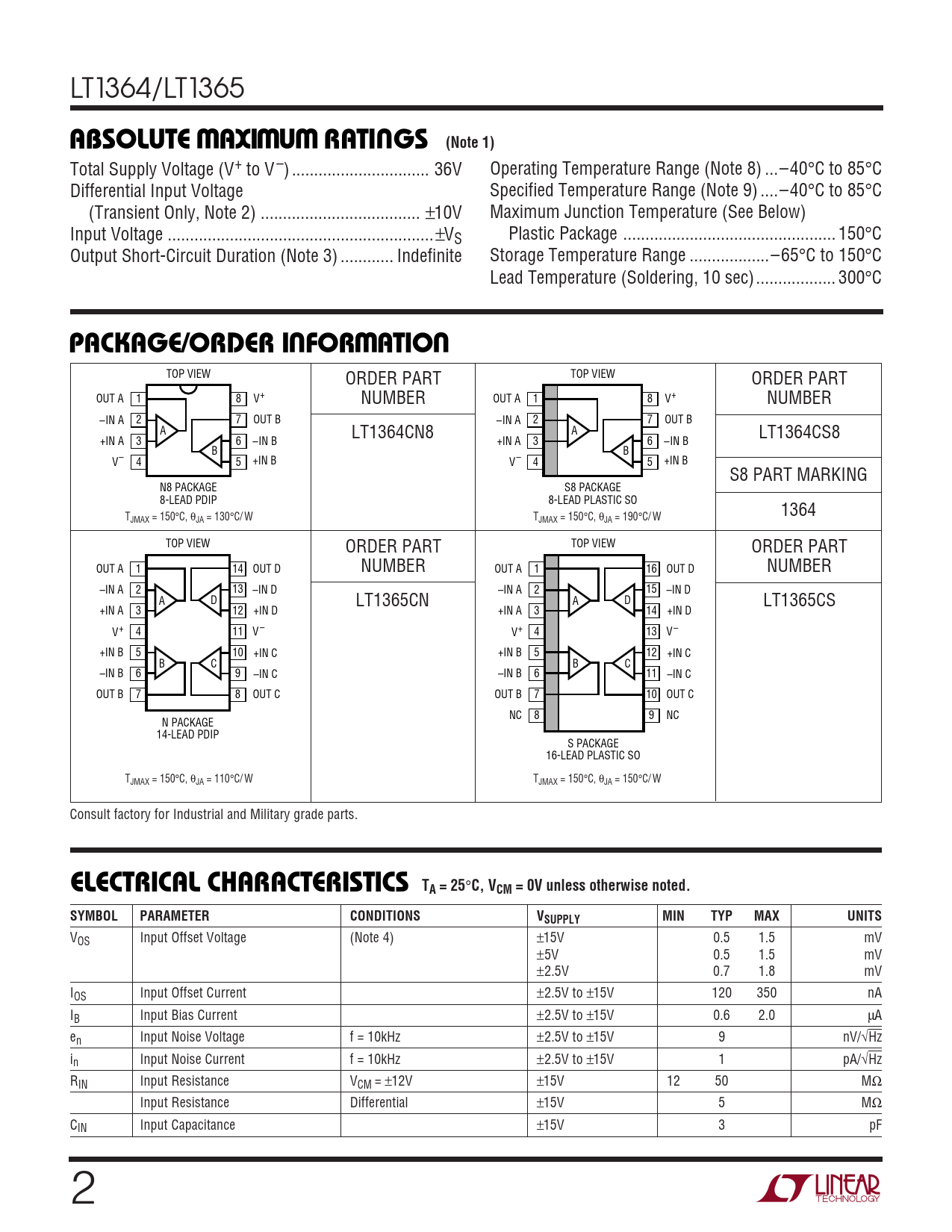

LT1364/LT1365
W W W U ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V –) ... 36V Operating Temperature Range (Note 8) ...–40°C to 85°C Differential Input Voltage Specified Temperature Range (Note 9) ..–40°C to 85°C (Transient Only, Note 2) .. ±10V Maximum Junction Temperature (See Below) Input Voltage .. ±VS Plastic Package .. 150°C Output Short-Circuit Duration (Note 3) .. Indefinite Storage Temperature Range ..–65°C to 150°C Lead Temperature (Soldering, 10 sec).. 300°C
U W U PACKAGE/ORDER INFORMATION
TOP VIEW ORDER PART TOP VIEW ORDER PART OUT A 1 8 V+ NUMBER OUT A 1 8 V+ NUMBER –IN A 2 7 OUT B –IN A 2 7 OUT B A LT1364CN8 A LT1364CS8 +IN A 3 6 –IN B +IN A 3 6 –IN B B B V– 4 5 +IN B V – 4 5 +IN B S8 PART MARKING N8 PACKAGE S8 PACKAGE 8-LEAD PDIP 8-LEAD PLASTIC SO 1364 T T JMAX = 150°C, θJA = 130°C/ W JMAX = 150°C, θJA = 190°C/ W TOP VIEW ORDER PART TOP VIEW ORDER PART OUT A 1 14 OUT D NUMBER OUT A 1 16 OUT D NUMBER –IN A 2 13 –IN D –IN A 2 15 –IN D A D LT1365CN A D LT1365CS +IN A 3 12 +IN D +IN A 3 14 +IN D V+ 4 11 V – V+ 4 13 V – +IN B 5 10 +IN C +IN B 5 12 +IN C B C B C –IN B 6 9 –IN C –IN B 6 11 –IN C OUT B 7 8 OUT C OUT B 7 10 OUT C NC 8 9 NC N PACKAGE 14-LEAD PDIP S PACKAGE 16-LEAD PLASTIC SO T T JMAX = 150°C, θJA = 110°C/ W JMAX = 150°C, θJA = 150°C/ W Consult factory for Industrial and Military grade parts.
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS VSUPPLY MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) ±15V 0.5 1.5 mV ±5V 0.5 1.5 mV ±2.5V 0.7 1.8 mV IOS Input Offset Current ±2.5V to ±15V 120 350 nA IB Input Bias Current ±2.5V to ±15V 0.6 2.0 µA en Input Noise Voltage f = 10kHz ±2.5V to ±15V 9 nV/√Hz in Input Noise Current f = 10kHz ±2.5V to ±15V 1 pA/√Hz RIN Input Resistance VCM = ±12V ±15V 12 50 MΩ Input Resistance Differential ±15V 5 MΩ CIN Input Capacitance ±15V 3 pF 2
