Datasheet LT6015, LT6016, LT6017 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amps |
| Pages / Page | 22 / 5 — e lecTrical characTerisTics The. denotes the specifications which apply … |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |

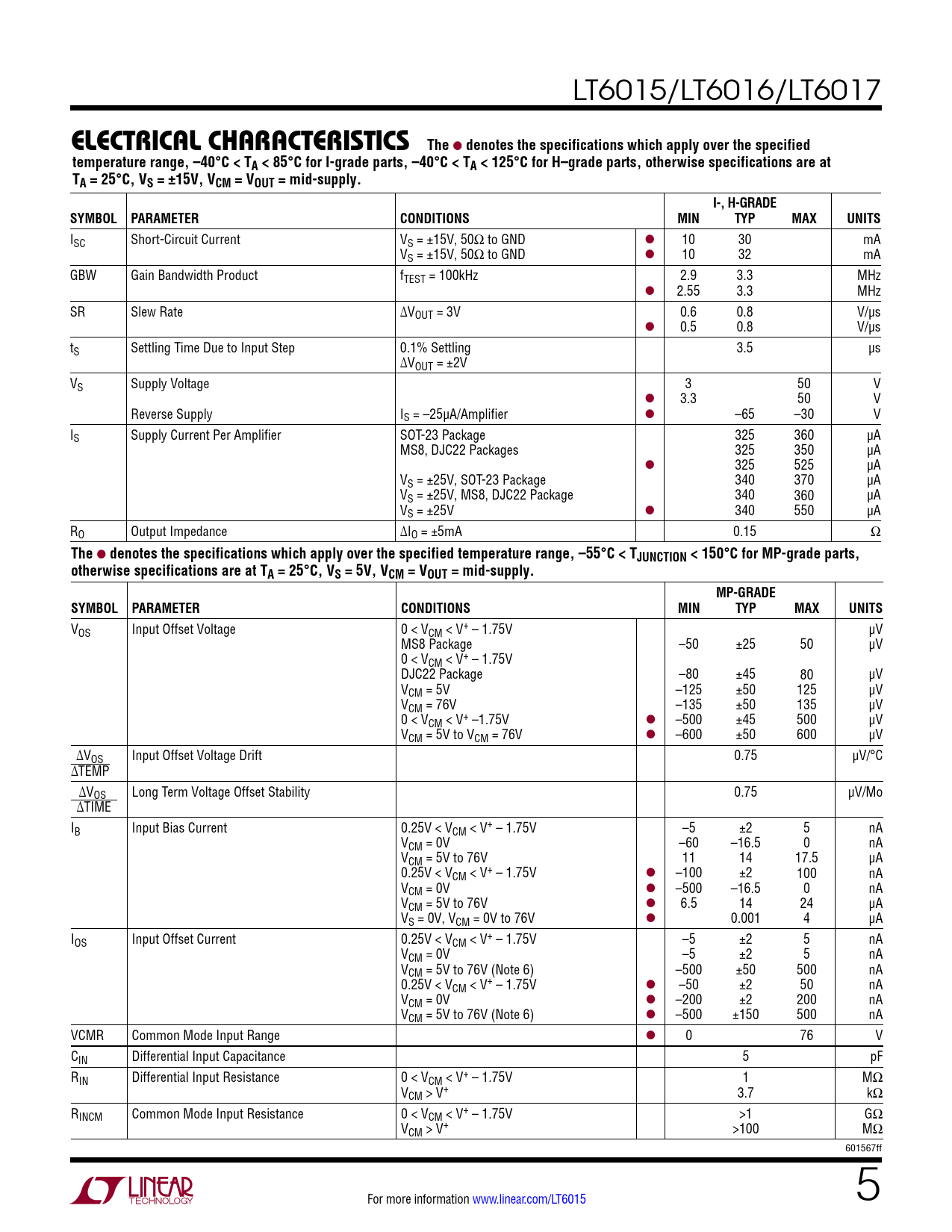

e lecTrical characTerisTics The. denotes the specifications which apply over the specified
Model Line for this Datasheet
Text Version of Document
LT6015/LT6016/LT6017
e lecTrical characTerisTics The
l
denotes the specifications which apply over the specified temperature range, –40°C < TA < 85°C for I-grade parts, –40°C < TA < 125°C for H–grade parts, otherwise specifications are at TA = 25°C, VS = ±15V, VCM = VOUT = mid-supply. I-, H-GRADE SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
ISC Short-Circuit Current VS = ±15V, 50Ω to GND l 10 30 mA VS = ±15V, 50Ω to GND l 10 32 mA GBW Gain Bandwidth Product fTEST = 100kHz 2.9 3.3 MHz l 2.55 3.3 MHz SR Slew Rate ∆VOUT = 3V 0.6 0.8 V/µs l 0.5 0.8 V/µs tS Settling Time Due to Input Step 0.1% Settling 3.5 µs ∆VOUT = ±2V VS Supply Voltage 3 50 V l 3.3 50 V Reverse Supply IS = –25µA/Amplifier l –65 –30 V IS Supply Current Per Amplifier SOT-23 Package 325 360 µA MS8, DJC22 Packages 325 350 µA l 325 525 µA VS = ±25V, SOT-23 Package 340 370 µA VS = ±25V, MS8, DJC22 Package 340 360 µA VS = ±25V l 340 550 µA RO Output Impedance ∆IO = ±5mA 0.15 Ω
The
l
denotes the specifications which apply over the specified temperature range, –55°C < TJUNCTION < 150°C for MP-grade parts, otherwise specifications are at TA = 25°C, VS = 5V, VCM = VOUT = mid-supply. MP-GRADE SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 0 < VCM < V+ – 1.75V µV MS8 Package –50 ±25 50 µV 0 < VCM < V+ – 1.75V DJC22 Package –80 ±45 80 µV VCM = 5V –125 ±50 125 µV VCM = 76V –135 ±50 135 µV 0 < VCM < V+ –1.75V l –500 ±45 500 µV VCM = 5V to VCM = 76V l –600 ±50 600 µV ∆VOS Input Offset Voltage Drift 0.75 µV/°C ∆TEMP ∆VOS Long Term Voltage Offset Stability 0.75 µV/Mo ∆TIME IB Input Bias Current 0.25V < VCM < V+ – 1.75V –5 ±2 5 nA VCM = 0V –60 –16.5 0 nA VCM = 5V to 76V 11 14 17.5 µA 0.25V < VCM < V+ – 1.75V l –100 ±2 100 nA VCM = 0V l –500 –16.5 0 nA VCM = 5V to 76V l 6.5 14 24 µA VS = 0V, VCM = 0V to 76V l 0.001 4 µA IOS Input Offset Current 0.25V < VCM < V+ – 1.75V –5 ±2 5 nA VCM = 0V –5 ±2 5 nA VCM = 5V to 76V (Note 6) –500 ±50 500 nA 0.25V < VCM < V+ – 1.75V l –50 ±2 50 nA VCM = 0V l –200 ±2 200 nA VCM = 5V to 76V (Note 6) l –500 ±150 500 nA VCMR Common Mode Input Range l 0 76 V CIN Differential Input Capacitance 5 pF RIN Differential Input Resistance 0 < VCM < V+ – 1.75V 1 MΩ VCM > V+ 3.7 kΩ RINCM Common Mode Input Resistance 0 < VCM < V+ – 1.75V >1 GΩ VCM > V+ >100 MΩ 601567ff For more information www.linear.com/LT6015 5 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Simplified Schematic Typical Applications Package Description Revision History Related Parts
