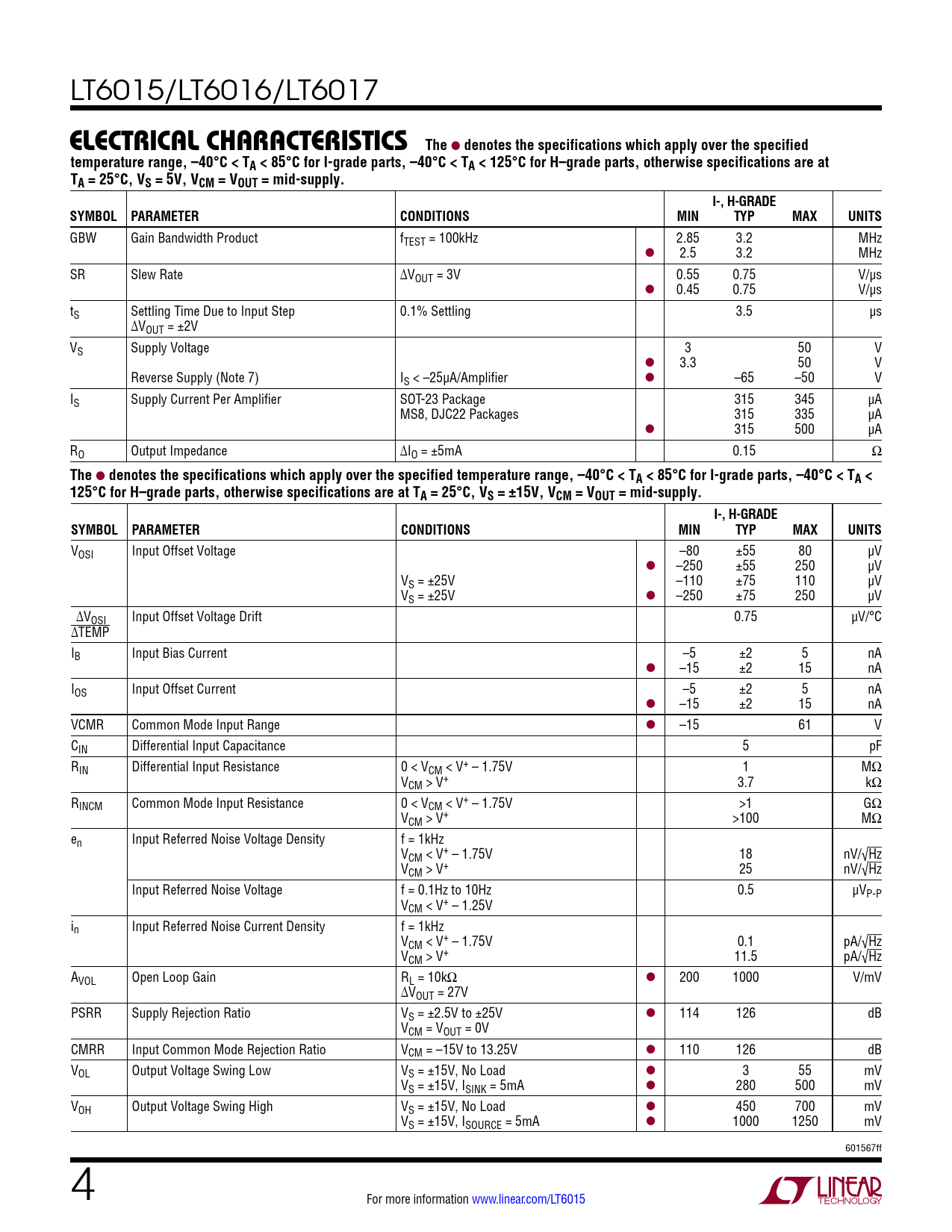

e lecTrical characTerisTics The. denotes the specifications which apply over the specified
Model Line for this Datasheet
Text Version of Document
LT6015/LT6016/LT6017
e lecTrical characTerisTics The
l
denotes the specifications which apply over the specified temperature range, –40°C < TA < 85°C for I-grade parts, –40°C < TA < 125°C for H–grade parts, otherwise specifications are at TA = 25°C, VS = 5V, VCM = VOUT = mid-supply. I-, H-GRADE SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
GBW Gain Bandwidth Product fTEST = 100kHz 2.85 3.2 MHz l 2.5 3.2 MHz SR Slew Rate ∆VOUT = 3V 0.55 0.75 V/µs l 0.45 0.75 V/µs tS Settling Time Due to Input Step 0.1% Settling 3.5 µs ∆VOUT = ±2V VS Supply Voltage 3 50 V l 3.3 50 V Reverse Supply (Note 7) IS < –25µA/Amplifier l –65 –50 V IS Supply Current Per Amplifier SOT-23 Package 315 345 µA MS8, DJC22 Packages 315 335 µA l 315 500 µA RO Output Impedance ∆IO = ±5mA 0.15 Ω
