Datasheet LT1413 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Single Supply, Dual Precision Op Amp |
| Pages / Page | 8 / 3 — ELECTRICAL CHAR C. A TERISTICS VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, TA = … |
| File Format / Size | PDF / 254 Kb |
| Document Language | English |

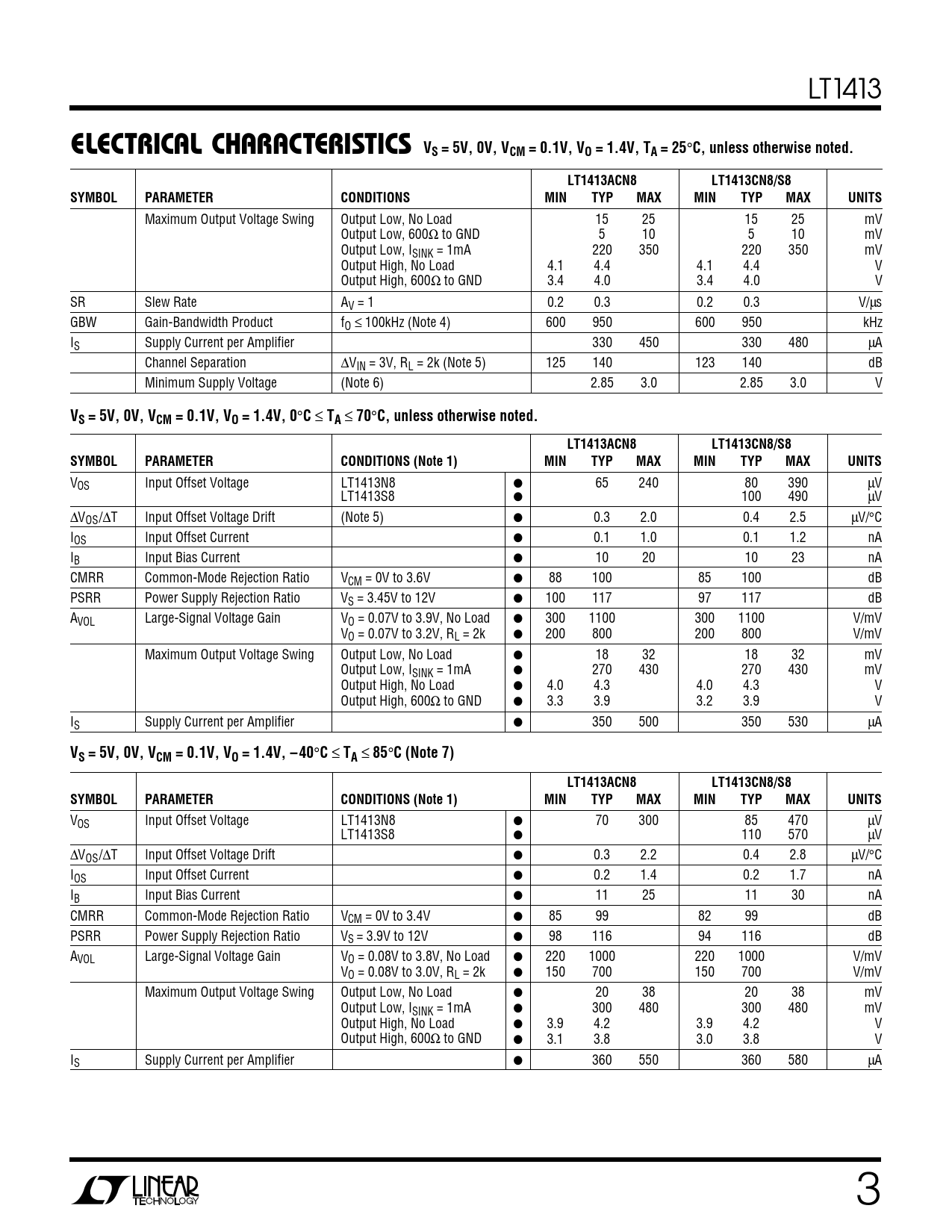

ELECTRICAL CHAR C. A TERISTICS VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, TA = 25. C, unless otherwise noted. LT1413ACN8. LT1413CN8/S8
Model Line for this Datasheet
Text Version of Document
LT1413
ELECTRICAL CHAR C A TERISTICS VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, TA = 25
°
C, unless otherwise noted. LT1413ACN8 LT1413CN8/S8 SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Maximum Output Voltage Swing Output Low, No Load 15 25 15 25 mV Output Low, 600Ω to GND 5 10 5 10 mV Output Low, ISINK = 1mA 220 350 220 350 mV Output High, No Load 4.1 4.4 4.1 4.4 V Output High, 600Ω to GND 3.4 4.0 3.4 4.0 V SR Slew Rate AV = 1 0.2 0.3 0.2 0.3 V/µs GBW Gain-Bandwidth Product fO ≤ 100kHz (Note 4) 600 950 600 950 kHz IS Supply Current per Amplifier 330 450 330 480 µA Channel Separation ∆VIN = 3V, RL = 2k (Note 5) 125 140 123 140 dB Minimum Supply Voltage (Note 6) 2.85 3.0 2.85 3.0 V
VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, 0
°
C
≤
TA
≤
70
°
C, unless otherwise noted. LT1413ACN8 LT1413CN8/S8 SYMBOL PARAMETER CONDITIONS (Note 1) MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage LT1413N8 ● 65 240 80 390 µV LT1413S8 ● 100 490 µV ∆VOS/∆T Input Offset Voltage Drift (Note 5) ● 0.3 2.0 0.4 2.5 µV/°C IOS Input Offset Current ● 0.1 1.0 0.1 1.2 nA IB Input Bias Current ● 10 20 10 23 nA CMRR Common-Mode Rejection Ratio VCM = 0V to 3.6V ● 88 100 85 100 dB PSRR Power Supply Rejection Ratio VS = 3.45V to 12V ● 100 117 97 117 dB AVOL Large-Signal Voltage Gain VO = 0.07V to 3.9V, No Load ● 300 1100 300 1100 V/mV VO = 0.07V to 3.2V, RL = 2k ● 200 800 200 800 V/mV Maximum Output Voltage Swing Output Low, No Load ● 18 32 18 32 mV Output Low, ISINK = 1mA ● 270 430 270 430 mV Output High, No Load ● 4.0 4.3 4.0 4.3 V Output High, 600Ω to GND ● 3.3 3.9 3.2 3.9 V IS Supply Current per Amplifier ● 350 500 350 530 µA
VS = 5V, 0V, VCM = 0.1V, VO = 1.4V, –40
°
C
≤
TA
≤
85
°
C (Note 7) LT1413ACN8 LT1413CN8/S8 SYMBOL PARAMETER CONDITIONS (Note 1) MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage LT1413N8 ● 70 300 85 470 µV LT1413S8 ● 110 570 µV ∆VOS/∆T Input Offset Voltage Drift ● 0.3 2.2 0.4 2.8 µV/°C IOS Input Offset Current ● 0.2 1.4 0.2 1.7 nA IB Input Bias Current ● 11 25 11 30 nA CMRR Common-Mode Rejection Ratio VCM = 0V to 3.4V ● 85 99 82 99 dB PSRR Power Supply Rejection Ratio VS = 3.9V to 12V ● 98 116 94 116 dB AVOL Large-Signal Voltage Gain VO = 0.08V to 3.8V, No Load ● 220 1000 220 1000 V/mV VO = 0.08V to 3.0V, RL = 2k ● 150 700 150 700 V/mV Maximum Output Voltage Swing Output Low, No Load ● 20 38 20 38 mV Output Low, ISINK = 1mA ● 300 480 300 480 mV Output High, No Load ● 3.9 4.2 3.9 4.2 V Output High, 600Ω to GND ● 3.1 3.8 3.0 3.8 V IS Supply Current per Amplifier ● 360 550 360 580 µA 3
