Datasheet LT1215, LT1216 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 23MHz, 50V/µs, Single Supply Dual and Quad Precision Op Amps |
| Pages / Page | 20 / 7 — 3.3V ELECTRICAL CH. ARA TERISTICS. VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, TA … |
| File Format / Size | PDF / 347 Kb |
| Document Language | English |

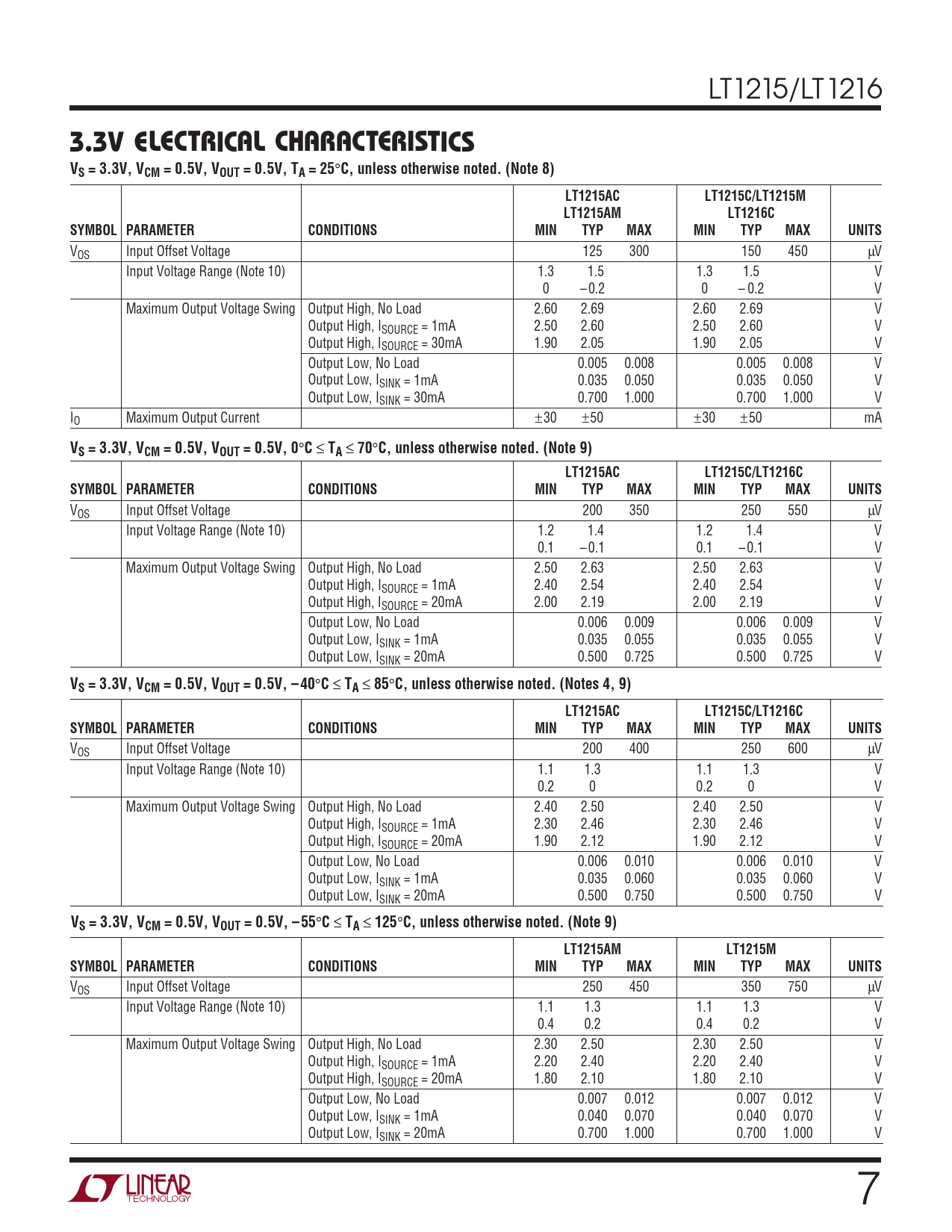

3.3V ELECTRICAL CH. ARA TERISTICS. VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, TA = 25. C, unless otherwise noted. (Note 8). LT1215AC
Model Line for this Datasheet
Text Version of Document
LT1215/LT1216
3.3V ELECTRICAL CH C ARA TERISTICS VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, TA = 25
°
C, unless otherwise noted. (Note 8) LT1215AC LT1215C/LT1215M LT1215AM LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 125 300 150 450 µV Input Voltage Range (Note 10) 1.3 1.5 1.3 1.5 V 0 – 0.2 0 – 0.2 V Maximum Output Voltage Swing Output High, No Load 2.60 2.69 2.60 2.69 V Output High, ISOURCE = 1mA 2.50 2.60 2.50 2.60 V Output High, ISOURCE = 30mA 1.90 2.05 1.90 2.05 V Output Low, No Load 0.005 0.008 0.005 0.008 V Output Low, ISINK = 1mA 0.035 0.050 0.035 0.050 V Output Low, ISINK = 30mA 0.700 1.000 0.700 1.000 V IO Maximum Output Current ±30 ±50 ±30 ±50 mA
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, 0
°
C
≤
TA
≤
70
°
C, unless otherwise noted. (Note 9) LT1215AC LT1215C/LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 200 350 250 550 µV Input Voltage Range (Note 10) 1.2 1.4 1.2 1.4 V 0.1 – 0.1 0.1 – 0.1 V Maximum Output Voltage Swing Output High, No Load 2.50 2.63 2.50 2.63 V Output High, ISOURCE = 1mA 2.40 2.54 2.40 2.54 V Output High, ISOURCE = 20mA 2.00 2.19 2.00 2.19 V Output Low, No Load 0.006 0.009 0.006 0.009 V Output Low, ISINK = 1mA 0.035 0.055 0.035 0.055 V Output Low, ISINK = 20mA 0.500 0.725 0.500 0.725 V
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, – 40
°
C
≤
TA
≤
85
°
C, unless otherwise noted. (Notes 4, 9) LT1215AC LT1215C/LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 200 400 250 600 µV Input Voltage Range (Note 10) 1.1 1.3 1.1 1.3 V 0.2 0 0.2 0 V Maximum Output Voltage Swing Output High, No Load 2.40 2.50 2.40 2.50 V Output High, ISOURCE = 1mA 2.30 2.46 2.30 2.46 V Output High, ISOURCE = 20mA 1.90 2.12 1.90 2.12 V Output Low, No Load 0.006 0.010 0.006 0.010 V Output Low, ISINK = 1mA 0.035 0.060 0.035 0.060 V Output Low, ISINK = 20mA 0.500 0.750 0.500 0.750 V
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, – 55
°
C
≤
TA
≤
125
°
C, unless otherwise noted. (Note 9) LT1215AM LT1215M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 250 450 350 750 µV Input Voltage Range (Note 10) 1.1 1.3 1.1 1.3 V 0.4 0.2 0.4 0.2 V Maximum Output Voltage Swing Output High, No Load 2.30 2.50 2.30 2.50 V Output High, ISOURCE = 1mA 2.20 2.40 2.20 2.40 V Output High, ISOURCE = 20mA 1.80 2.10 1.80 2.10 V Output Low, No Load 0.007 0.012 0.007 0.012 V Output Low, ISINK = 1mA 0.040 0.070 0.040 0.070 V Output Low, ISINK = 20mA 0.700 1.000 0.700 1.000 V 7
3.3V ELECTRICAL CH C ARA TERISTICS VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, TA = 25
°
C, unless otherwise noted. (Note 8) LT1215AC LT1215C/LT1215M LT1215AM LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 125 300 150 450 µV Input Voltage Range (Note 10) 1.3 1.5 1.3 1.5 V 0 – 0.2 0 – 0.2 V Maximum Output Voltage Swing Output High, No Load 2.60 2.69 2.60 2.69 V Output High, ISOURCE = 1mA 2.50 2.60 2.50 2.60 V Output High, ISOURCE = 30mA 1.90 2.05 1.90 2.05 V Output Low, No Load 0.005 0.008 0.005 0.008 V Output Low, ISINK = 1mA 0.035 0.050 0.035 0.050 V Output Low, ISINK = 30mA 0.700 1.000 0.700 1.000 V IO Maximum Output Current ±30 ±50 ±30 ±50 mA
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, 0
°
C
≤
TA
≤
70
°
C, unless otherwise noted. (Note 9) LT1215AC LT1215C/LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 200 350 250 550 µV Input Voltage Range (Note 10) 1.2 1.4 1.2 1.4 V 0.1 – 0.1 0.1 – 0.1 V Maximum Output Voltage Swing Output High, No Load 2.50 2.63 2.50 2.63 V Output High, ISOURCE = 1mA 2.40 2.54 2.40 2.54 V Output High, ISOURCE = 20mA 2.00 2.19 2.00 2.19 V Output Low, No Load 0.006 0.009 0.006 0.009 V Output Low, ISINK = 1mA 0.035 0.055 0.035 0.055 V Output Low, ISINK = 20mA 0.500 0.725 0.500 0.725 V
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, – 40
°
C
≤
TA
≤
85
°
C, unless otherwise noted. (Notes 4, 9) LT1215AC LT1215C/LT1216C SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 200 400 250 600 µV Input Voltage Range (Note 10) 1.1 1.3 1.1 1.3 V 0.2 0 0.2 0 V Maximum Output Voltage Swing Output High, No Load 2.40 2.50 2.40 2.50 V Output High, ISOURCE = 1mA 2.30 2.46 2.30 2.46 V Output High, ISOURCE = 20mA 1.90 2.12 1.90 2.12 V Output Low, No Load 0.006 0.010 0.006 0.010 V Output Low, ISINK = 1mA 0.035 0.060 0.035 0.060 V Output Low, ISINK = 20mA 0.500 0.750 0.500 0.750 V
VS = 3.3V, VCM = 0.5V, VOUT = 0.5V, – 55
°
C
≤
TA
≤
125
°
C, unless otherwise noted. (Note 9) LT1215AM LT1215M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage 250 450 350 750 µV Input Voltage Range (Note 10) 1.1 1.3 1.1 1.3 V 0.4 0.2 0.4 0.2 V Maximum Output Voltage Swing Output High, No Load 2.30 2.50 2.30 2.50 V Output High, ISOURCE = 1mA 2.20 2.40 2.20 2.40 V Output High, ISOURCE = 20mA 1.80 2.10 1.80 2.10 V Output Low, No Load 0.007 0.012 0.007 0.012 V Output Low, ISINK = 1mA 0.040 0.070 0.040 0.070 V Output Low, ISINK = 20mA 0.700 1.000 0.700 1.000 V 7
