Datasheet LTC6261, LTC6262, LTC6263 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 30MHz, 240µA Power Efficient Rail-to-Rail I/O Op Amps |
| Pages / Page | 26 / 4 — 5V electricAl chArActeristics. The. denotes the specifications which … |
| File Format / Size | PDF / 1.8 Mb |
| Document Language | English |
5V electricAl chArActeristics. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
- LTC6261HDC#PBF LTC6261HDC#TRMPBF LTC6261HDC#TRPBF LTC6261HS6#PBF LTC6261HS6#TRMPBF LTC6261HS6#TRPBF LTC6261IDC#PBF LTC6261IDC#TRMPBF LTC6261IDC#TRPBF LTC6261IS6#PBF LTC6261IS6#TRMPBF LTC6261IS6#TRPBF
- LTC6262HDC#PBF LTC6262HDC#TRMPBF LTC6262HDC#TRPBF LTC6262HMS#PBF LTC6262HMS#TRPBF LTC6262HMS8#PBF LTC6262HMS8#TRPBF LTC6262HTS8#PBF LTC6262HTS8#TRMPBF LTC6262HTS8#TRPBF LTC6262IDC#PBF LTC6262IDC#TRMPBF LTC6262IDC#TRPBF LTC6262IMS#PBF LTC6262IMS#TRPBF LTC6262IMS8#PBF LTC6262IMS8#TRPBF LTC6262ITS8#PBF LTC6262ITS8#TRMPBF LTC6262ITS8#TRPBF
Text Version of Document
LTC6261/LTC6262/LTC6263
5V electricAl chArActeristics The
l

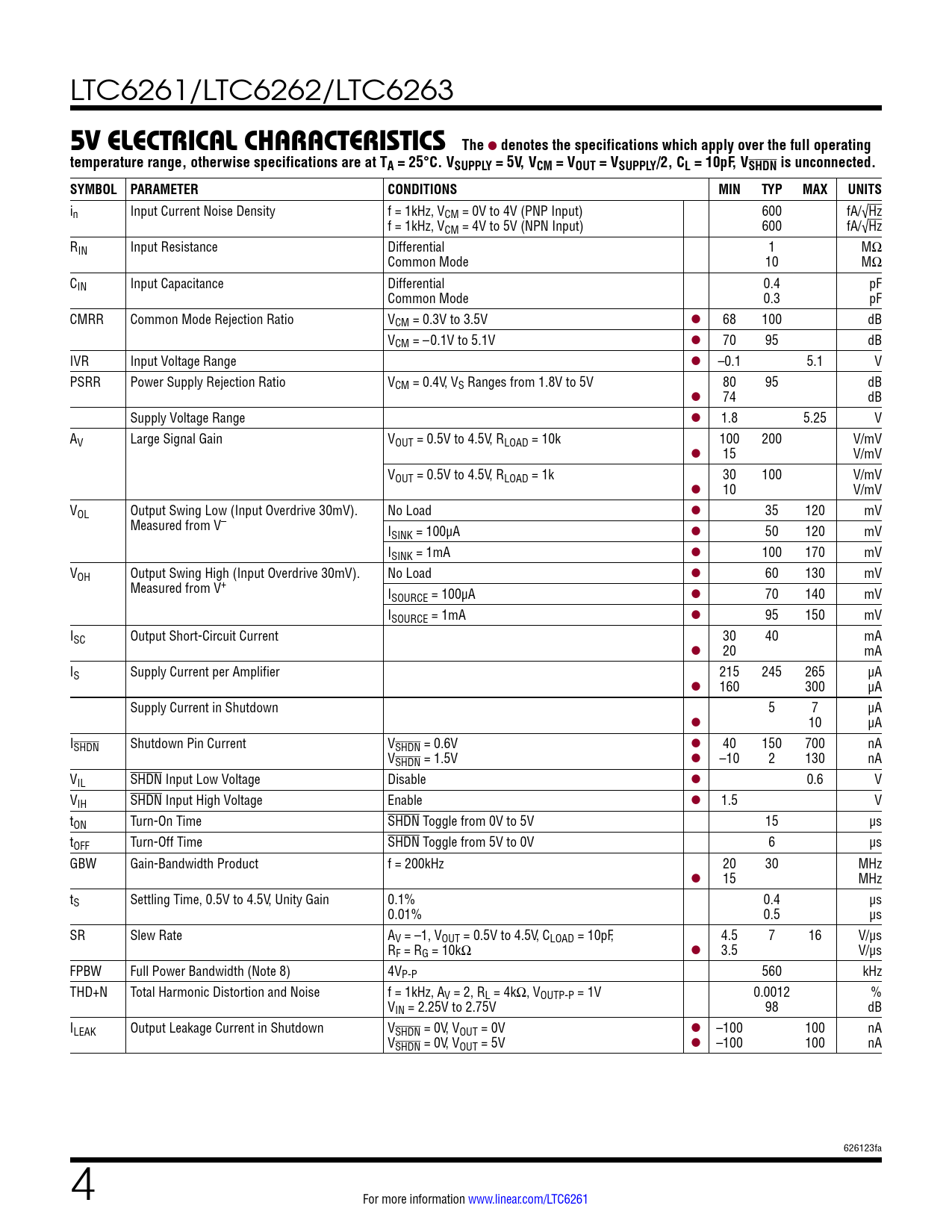

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VSUPPLY = 5V, VCM = VOUT = VSUPPLY/2, CL = 10pF, VSHDN is unconnected. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
in Input Current Noise Density f = 1kHz, VCM = 0V to 4V (PNP Input) 600 fA/√Hz f = 1kHz, VCM = 4V to 5V (NPN Input) 600 fA/√Hz RIN Input Resistance Differential 1 MΩ Common Mode 10 MΩ CIN Input Capacitance Differential 0.4 pF Common Mode 0.3 pF CMRR Common Mode Rejection Ratio VCM = 0.3V to 3.5V l 68 100 dB VCM = –0.1V to 5.1V l 70 95 dB IVR Input Voltage Range l –0.1 5.1 V PSRR Power Supply Rejection Ratio VCM = 0.4V, VS Ranges from 1.8V to 5V 80 95 dB l 74 dB Supply Voltage Range l 1.8 5.25 V AV Large Signal Gain VOUT = 0.5V to 4.5V, RLOAD = 10k 100 200 V/mV l 15 V/mV VOUT = 0.5V to 4.5V, RLOAD = 1k 30 100 V/mV l 10 V/mV VOL Output Swing Low (Input Overdrive 30mV). No Load l 35 120 mV Measured from V– ISINK = 100µA l 50 120 mV ISINK = 1mA l 100 170 mV VOH Output Swing High (Input Overdrive 30mV). No Load l 60 130 mV Measured from V+ ISOURCE = 100µA l 70 140 mV ISOURCE = 1mA l 95 150 mV ISC Output Short-Circuit Current 30 40 mA l 20 mA IS Supply Current per Amplifier 215 245 265 µA l 160 300 µA Supply Current in Shutdown 5 7 µA l 10 µA ISHDN Shutdown Pin Current VSHDN = 0.6V l 40 150 700 nA VSHDN = 1.5V l –10 2 130 nA VIL SHDN Input Low Voltage Disable l 0.6 V VIH SHDN Input High Voltage Enable l 1.5 V tON Turn-On Time SHDN Toggle from 0V to 5V 15 µs tOFF Turn-Off Time SHDN Toggle from 5V to 0V 6 µs GBW Gain-Bandwidth Product f = 200kHz 20 30 MHz l 15 MHz tS Settling Time, 0.5V to 4.5V, Unity Gain 0.1% 0.4 µs 0.01% 0.5 µs SR Slew Rate AV = –1, VOUT = 0.5V to 4.5V, CLOAD = 10pF, 4.5 7 16 V/µs RF = RG = 10kΩ l 3.5 V/µs FPBW Full Power Bandwidth (Note 8) 4VP-P 560 kHz THD+N Total Harmonic Distortion and Noise f = 1kHz, AV = 2, RL = 4kΩ, VOUTP-P = 1V 0.0012 % VIN = 2.25V to 2.75V 98 dB ILEAK Output Leakage Current in Shutdown VSHDN = 0V, VOUT = 0V l –100 100 nA VSHDN = 0V, VOUT = 5V l –100 100 nA 626123fa 4 For more information www.linear.com/LTC6261 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information 5V Electrical Characteristics 1.8V Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Operation Applications Information Package Description Typical Application Related Parts
