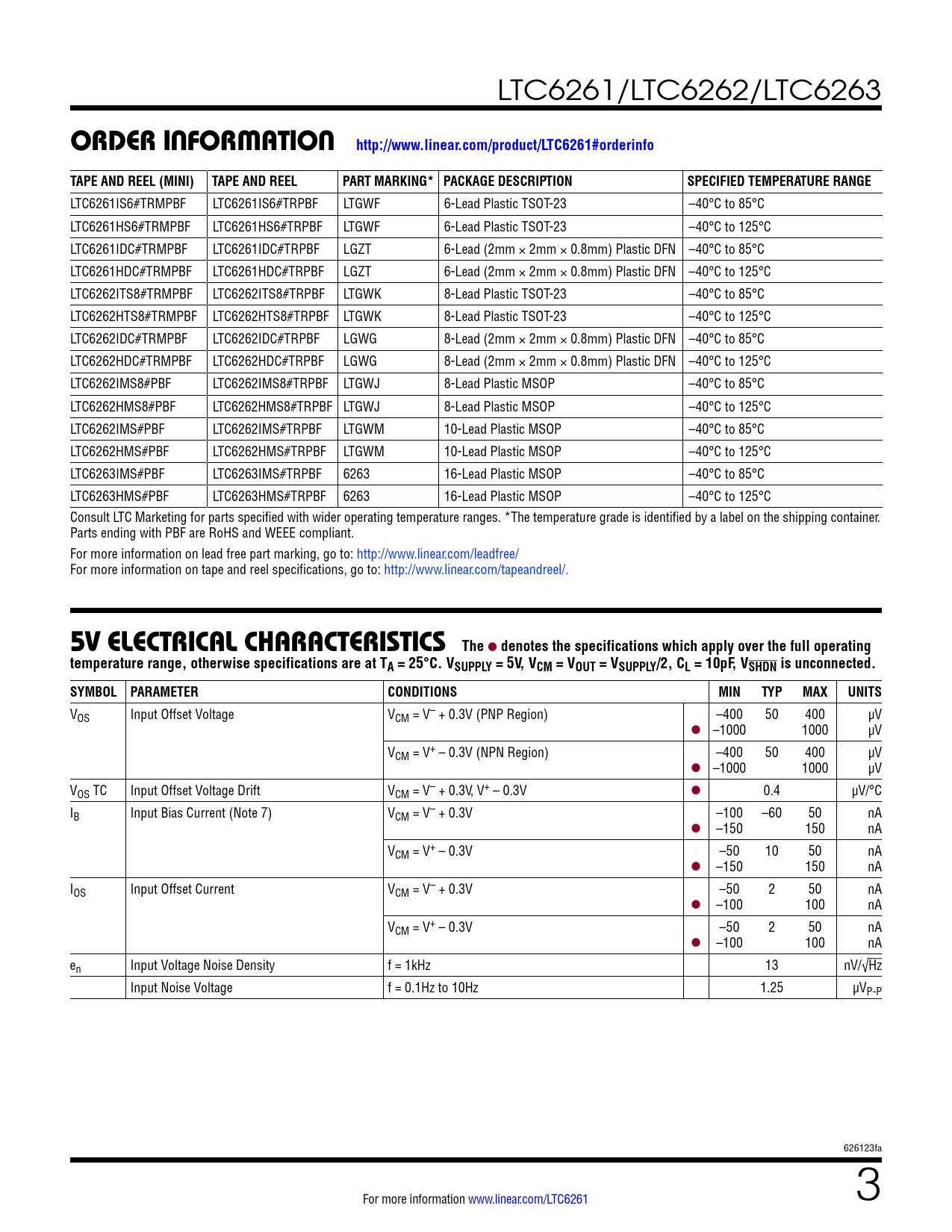

LTC6261/LTC6262/LTC6263
orDer inForMAtion http://www.linear.com/product/LTC6261#orderinfo TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6261IS6#TRMPBF LTC6261IS6#TRPBF LTGWF 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6261HS6#TRMPBF LTC6261HS6#TRPBF LTGWF 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6261IDC#TRMPBF LTC6261IDC#TRPBF LGZT 6-Lead (2mm × 2mm × 0.8mm) Plastic DFN –40°C to 85°C LTC6261HDC#TRMPBF LTC6261HDC#TRPBF LGZT 6-Lead (2mm × 2mm × 0.8mm) Plastic DFN –40°C to 125°C LTC6262ITS8#TRMPBF LTC6262ITS8#TRPBF LTGWK 8-Lead Plastic TSOT-23 –40°C to 85°C LTC6262HTS8#TRMPBF LTC6262HTS8#TRPBF LTGWK 8-Lead Plastic TSOT-23 –40°C to 125°C LTC6262IDC#TRMPBF LTC6262IDC#TRPBF LGWG 8-Lead (2mm × 2mm × 0.8mm) Plastic DFN –40°C to 85°C LTC6262HDC#TRMPBF LTC6262HDC#TRPBF LGWG 8-Lead (2mm × 2mm × 0.8mm) Plastic DFN –40°C to 125°C LTC6262IMS8#PBF LTC6262IMS8#TRPBF LTGWJ 8-Lead Plastic MSOP –40°C to 85°C LTC6262HMS8#PBF LTC6262HMS8#TRPBF LTGWJ 8-Lead Plastic MSOP –40°C to 125°C LTC6262IMS#PBF LTC6262IMS#TRPBF LTGWM 10-Lead Plastic MSOP –40°C to 85°C LTC6262HMS#PBF LTC6262HMS#TRPBF LTGWM 10-Lead Plastic MSOP –40°C to 125°C LTC6263IMS#PBF LTC6263IMS#TRPBF 6263 16-Lead Plastic MSOP –40°C to 85°C LTC6263HMS#PBF LTC6263HMS#TRPBF 6263 16-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Parts ending with PBF are RoHS and WEEE compliant. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/.
5V electricAl chArActeristics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VSUPPLY = 5V, VCM = VOUT = VSUPPLY/2, CL = 10pF, VSHDN is unconnected. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V– + 0.3V (PNP Region) –400 50 400 µV l –1000 1000 µV VCM = V+ – 0.3V (NPN Region) –400 50 400 µV l –1000 1000 µV VOS TC Input Offset Voltage Drift VCM = V– + 0.3V, V+ – 0.3V l 0.4 µV/°C IB Input Bias Current (Note 7) VCM = V– + 0.3V –100 –60 50 nA l –150 150 nA VCM = V+ – 0.3V –50 10 50 nA l –150 150 nA IOS Input Offset Current VCM = V– + 0.3V –50 2 50 nA l –100 100 nA VCM = V+ – 0.3V –50 2 50 nA l –100 100 nA en Input Voltage Noise Density f = 1kHz 13 nV/√Hz Input Noise Voltage f = 0.1Hz to 10Hz 1.25 µVP-P 626123fa For more information www.linear.com/LTC6261 3 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information 5V Electrical Characteristics 1.8V Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Operation Applications Information Package Description Typical Application Related Parts
