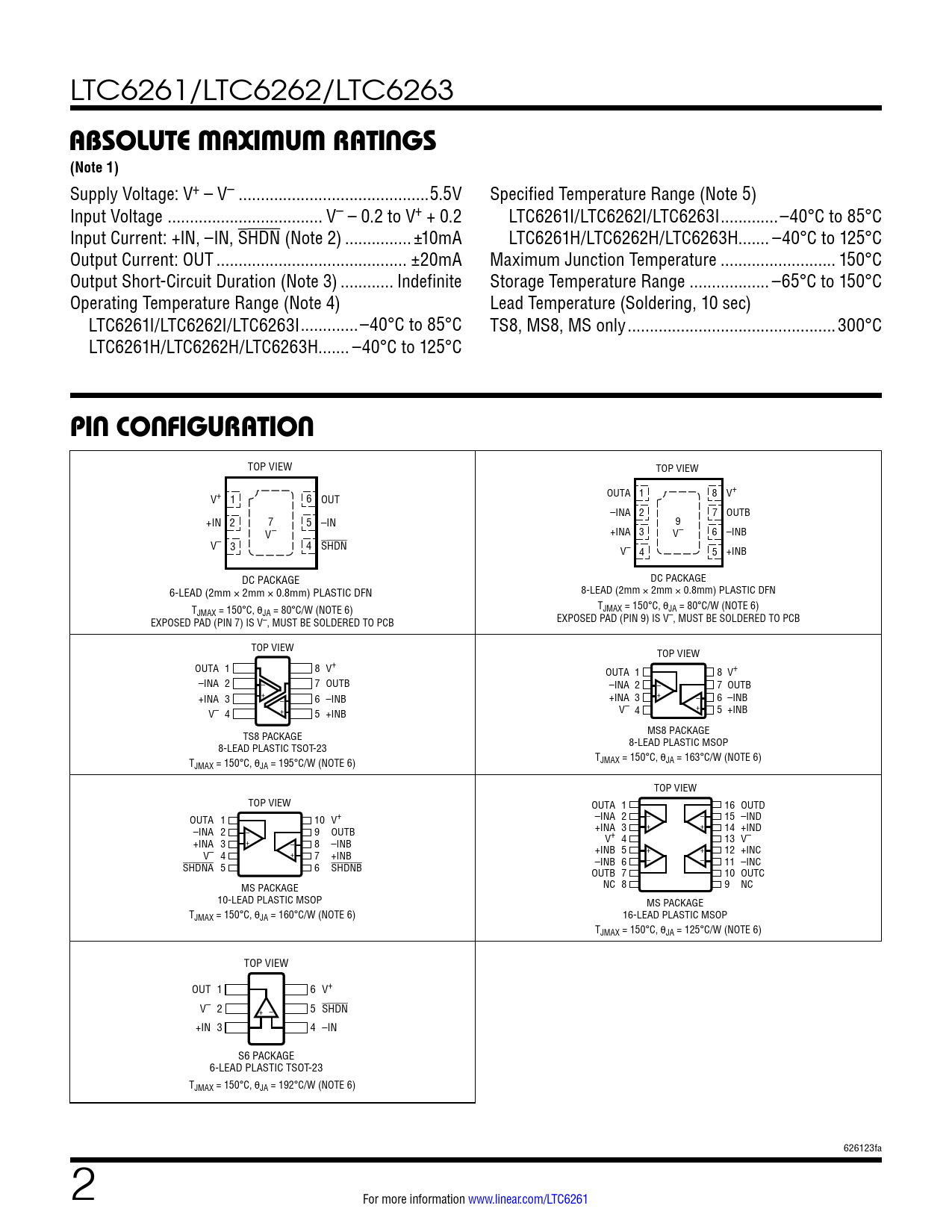

LTC6261/LTC6262/LTC6263
Absolute MAxiMuM rAtings (Note 1)
Supply Voltage: V+ – V– ...5.5V Specified Temperature Range (Note 5) Input Voltage ... V– – 0.2 to V+ + 0.2 LTC6261I/LTC6262I/LTC6263I ...–40°C to 85°C Input Current: +IN, –IN, SHDN (Note 2) ... ±10mA LTC6261H/LTC6262H/LTC6263H... –40°C to 125°C Output Current: OUT ... ±20mA Maximum Junction Temperature .. 150°C Output Short-Circuit Duration (Note 3) .. Indefinite Storage Temperature Range .. –65°C to 150°C Operating Temperature Range (Note 4) Lead Temperature (Soldering, 10 sec) LTC6261I/LTC6262I/LTC6263I ...–40°C to 85°C TS8, MS8, MS only ...300°C LTC6261H/LTC6262H/LTC6263H... –40°C to 125°C
pin conFigurAtion
TOP VIEW TOP VIEW V+ 1 6 OUT OUTA 1 8 V+ –INA 2 7 OUTB +IN 2 7 5 –IN 9 V– +INA 3 V– 6 –INB V– 3 4 SHDN V– 4 5 +INB DC PACKAGE DC PACKAGE 6-LEAD (2mm × 2mm × 0.8mm) PLASTIC DFN 8-LEAD (2mm × 2mm × 0.8mm) PLASTIC DFN T T JMAX = 150°C, qJA = 80°C/W (NOTE 6) JMAX = 150°C, qJA = 80°C/W (NOTE 6) EXPOSED PAD (PIN 7) IS V–, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 9) IS V–, MUST BE SOLDERED TO PCB TOP VIEW TOP VIEW OUTA 1 8 V+ OUTA 1 8 V+ –INA 2 – 7 OUTB –INA 2 – 7 OUTB + + +INA 3 – 6 –INB +INA 3 – 6 –INB + V– + 4 5 +INB V– 4 5 +INB TS8 PACKAGE MS8 PACKAGE 8-LEAD PLASTIC TSOT-23 8-LEAD PLASTIC MSOP T TJMAX = 150°C, qJA = 163°C/W (NOTE 6) JMAX = 150°C, qJA = 195°C/W (NOTE 6) TOP VIEW TOP VIEW OUTA 1 16 OUTD – – OUTA 1 10 V+ –INA 2 15 –IND + + –INA 2 – 9 OUTB +INA 3 14 +IND +INA 3 + – 8 –INB V+ 4 13 V– V– 4 + 7 +INB +INB 5 + + 12 +INC – – SHDNA 5 6 SHDNB –INB 6 11 –INC OUTB 7 10 OUTC MS PACKAGE NC 8 9 NC 10-LEAD PLASTIC MSOP MS PACKAGE TJMAX = 150°C, qJA = 160°C/W (NOTE 6) 16-LEAD PLASTIC MSOP TJMAX = 150°C, qJA = 125°C/W (NOTE 6) TOP VIEW OUT 1 6 V+ V– 2 + – 5 SHDN +IN 3 4 –IN S6 PACKAGE 6-LEAD PLASTIC TSOT-23 TJMAX = 150°C, qJA = 192°C/W (NOTE 6) 626123fa 2 For more information www.linear.com/LTC6261 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information 5V Electrical Characteristics 1.8V Electrical Characteristics Typical Performance Characteristics Pin Functions Simplified Schematic Operation Applications Information Package Description Typical Application Related Parts
