LTC3672B-2
ELECTRICAL CHARACTERISTICS The
l

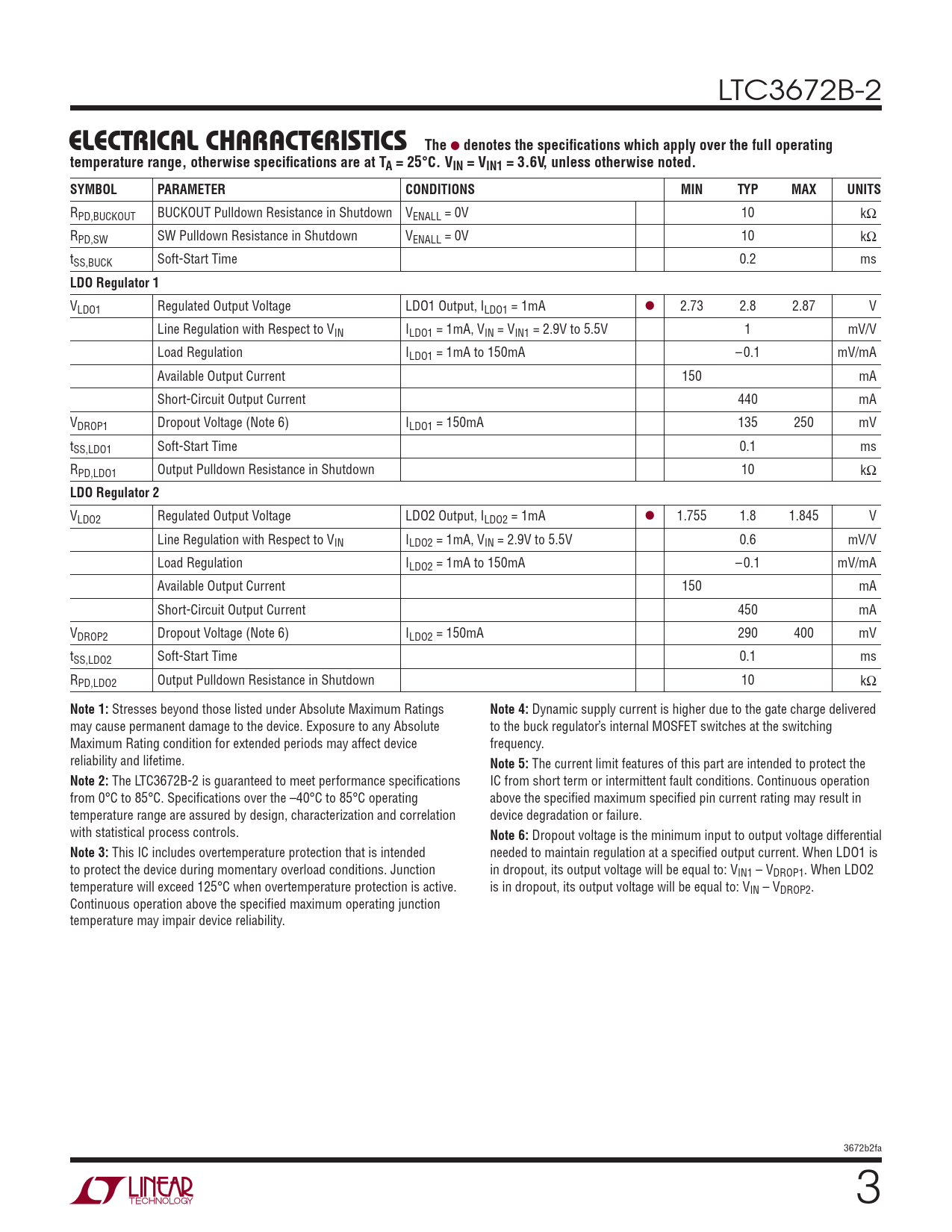

denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN = VIN1 = 3.6V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
RPD,BUCKOUT BUCKOUT Pulldown Resistance in Shutdown VENALL = 0V 10 kΩ RPD,SW SW Pulldown Resistance in Shutdown VENALL = 0V 10 kΩ tSS,BUCK Soft-Start Time 0.2 ms
LDO Regulator 1
VLDO1 Regulated Output Voltage LDO1 Output, ILDO1 = 1mA l 2.73 2.8 2.87 V Line Regulation with Respect to VIN ILDO1 = 1mA, VIN = VIN1 = 2.9V to 5.5V 1 mV/V Load Regulation ILDO1 = 1mA to 150mA –0.1 mV/mA Available Output Current 150 mA Short-Circuit Output Current 440 mA VDROP1 Dropout Voltage (Note 6) ILDO1 = 150mA 135 250 mV tSS,LDO1 Soft-Start Time 0.1 ms RPD,LDO1 Output Pulldown Resistance in Shutdown 10 kΩ
LDO Regulator 2
VLDO2 Regulated Output Voltage LDO2 Output, ILDO2 = 1mA l 1.755 1.8 1.845 V Line Regulation with Respect to VIN ILDO2 = 1mA, VIN = 2.9V to 5.5V 0.6 mV/V Load Regulation ILDO2 = 1mA to 150mA –0.1 mV/mA Available Output Current 150 mA Short-Circuit Output Current 450 mA VDROP2 Dropout Voltage (Note 6) ILDO2 = 150mA 290 400 mV tSS,LDO2 Soft-Start Time 0.1 ms RPD,LDO2 Output Pulldown Resistance in Shutdown 10 kΩ
