Single/Dual/Quad, Low-Cost, UCSP/SOT23, Low-Power, Rail-to-Rail I/O Op Amps. AC ELECTRICAL CHARACTERISTICS. PARAMETER. SYMBOL
Model Line for this Datasheet
Text Version of Document

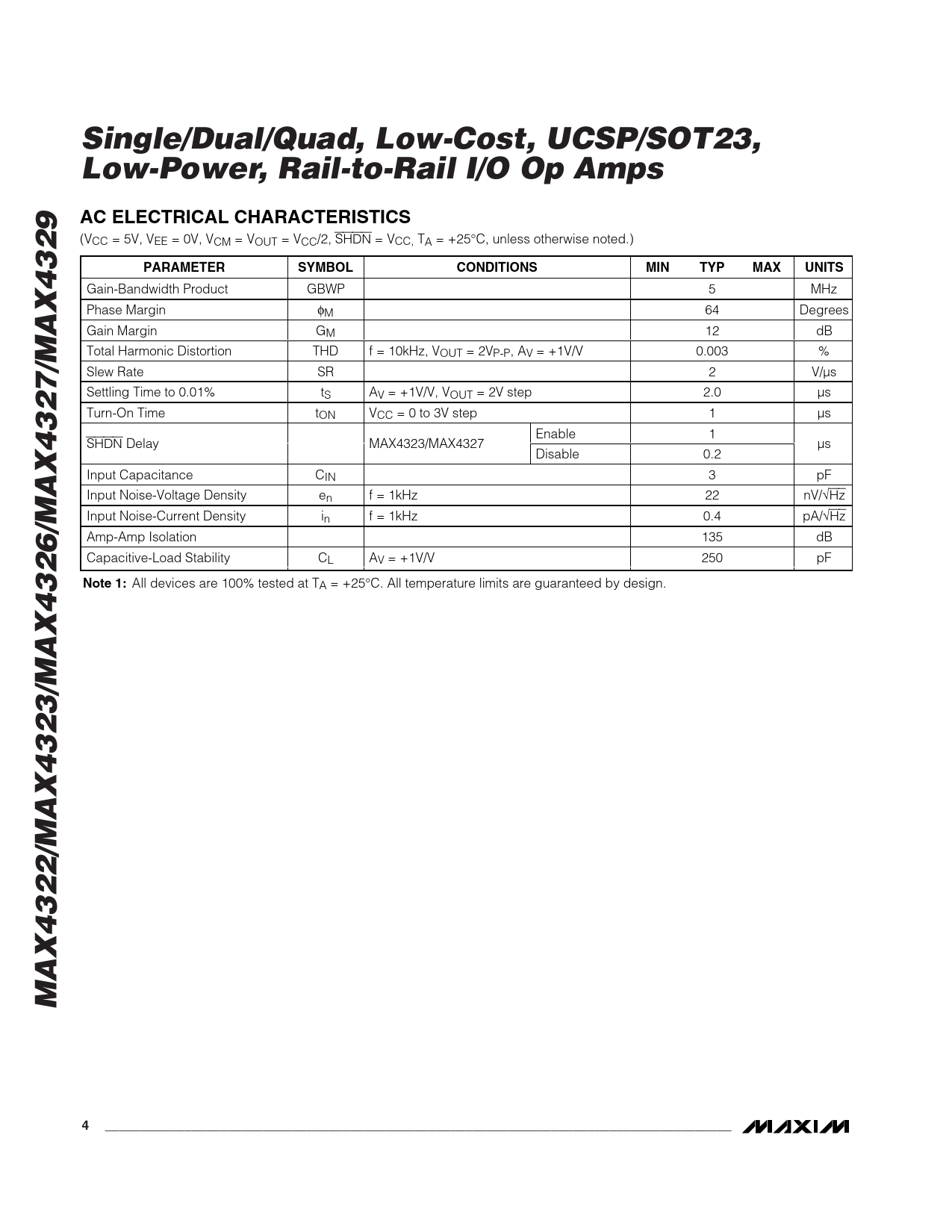

Single/Dual/Quad, Low-Cost, UCSP/SOT23, Low-Power, Rail-to-Rail I/O Op Amps AC ELECTRICAL CHARACTERISTICS
(VCC = 5V, VEE = 0V, VCM = VOUT = VCC/2, SHDN = VCC, TA = +25°C, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Gain-Bandwidth Product GBWP 5 MHz Phase Margin φM 64 Degrees Gain Margin GM 12 dB Total Harmonic Distortion THD f = 10kHz, VOUT = 2VP-P, AV = +1V/V 0.003 % Slew Rate SR 2 V/µs Settling Time to 0.01% tS AV = +1V/V, VOUT = 2V step 2.0 µs Turn-On Time tON VCC = 0 to 3V step 1 µs Enable 1 SHDN Delay MAX4323/MAX4327 µs Disable 0.2 Input Capacitance CIN 3 pF Input Noise-Voltage Density en f = 1kHz 22 nV/√Hz Input Noise-Current Density in f = 1kHz 0.4 pA/√Hz Amp-Amp Isolation 135 dB Capacitive-Load Stability CL AV = +1V/V 250 pF
Note 1:
All devices are 100% tested at TA = +25°C. All temperature limits are guaranteed by design.
MAX4322/MAX4323/MAX4326/MAX4327/MAX4329 4 _______________________________________________________________________________________
(VCC = 5V, VEE = 0V, VCM = VOUT = VCC/2, SHDN = VCC, TA = +25°C, unless otherwise noted.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Gain-Bandwidth Product GBWP 5 MHz Phase Margin φM 64 Degrees Gain Margin GM 12 dB Total Harmonic Distortion THD f = 10kHz, VOUT = 2VP-P, AV = +1V/V 0.003 % Slew Rate SR 2 V/µs Settling Time to 0.01% tS AV = +1V/V, VOUT = 2V step 2.0 µs Turn-On Time tON VCC = 0 to 3V step 1 µs Enable 1 SHDN Delay MAX4323/MAX4327 µs Disable 0.2 Input Capacitance CIN 3 pF Input Noise-Voltage Density en f = 1kHz 22 nV/√Hz Input Noise-Current Density in f = 1kHz 0.4 pA/√Hz Amp-Amp Isolation 135 dB Capacitive-Load Stability CL AV = +1V/V 250 pF
Note 1:
All devices are 100% tested at TA = +25°C. All temperature limits are guaranteed by design.
MAX4322/MAX4323/MAX4326/MAX4327/MAX4329 4 _______________________________________________________________________________________
