2 N 3906 / MMBT3906 / PZT. Physical Dimensions. 3906 —. P N P Gen. era. l-Purpose. Amplifier
Model Line for this Datasheet
Text Version of Document
2 N 3906 / MMBT3906 / PZT Physical Dimensions

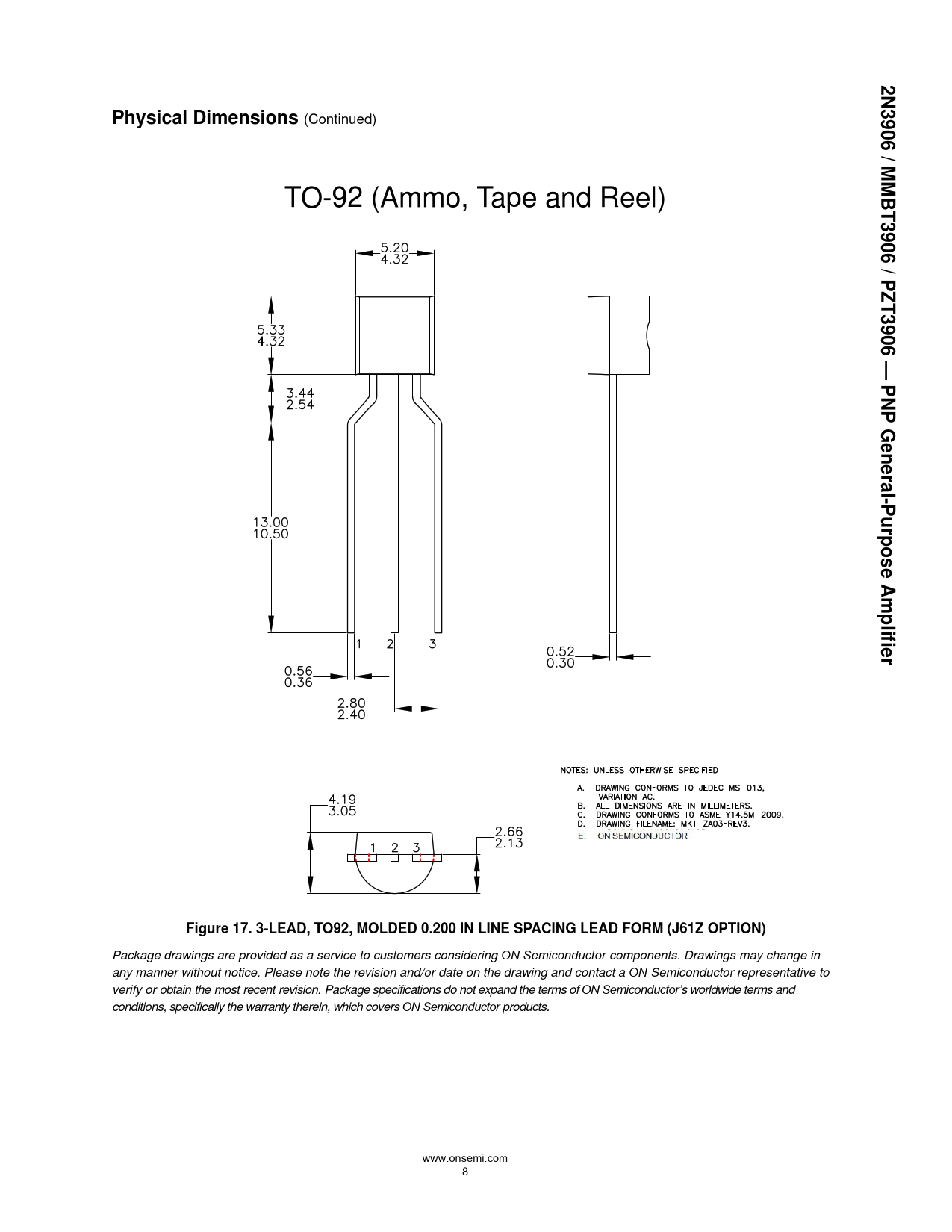

(Continued) TO-92 (Ammo, Tape and Reel)
3906 — P N P Gen era l-Purpose Amplifier Figure 17. 3-LEAD, TO92, MOLDED 0.200 IN LINE SPACING LEAD FORM (J61Z OPTION)
Package drawings are provided as a service to customers considering ON Semiconductor components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a ON Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of ON Semiconductor’s worldwide terms and conditions, specifically the warranty therein, which covers ON Semiconductor products. www.onsemi.com 8
