2 N 3906 / MMBT3906 / PZT. Physical Dimensions. 3906 —. P N P Gen. era. l-Purpose. Amplifier
Model Line for this Datasheet
Text Version of Document
2 N 3906 / MMBT3906 / PZT Physical Dimensions
(Continued) SOT-23 2.92±0.20 0.95 3 1.40
3906 —
1.30+0.20 -0.15 2.20
P N P Gen
1 2 (0.29) 0.60 0.37 0.95
era
0.20 A B 1.00 1.90 1.90
l-Purpose
LAND PATTERN RECOMMENDATION 1.20 MAX SEE DETAIL A
Amplifier
(0.93) 0.10 0.00 0.10 C C 2.40±0.30 NOTES: UNLESS OTHERWISE SPECIFIED GAGE PLANE A) REFERENCE JEDEC REGISTRATION TO-236, VARIATION AB, ISSUE H. B) ALL DIMENSIONS ARE IN MILLIMETERS. 0.23 0.08 C) DIMENSIONS ARE INCLUSIVE OF BURRS, 0.25 MOLD FLASH AND TIE BAR EXTRUSIONS. D) DIMENSIONING AND TOLERANCING PER ASME Y14.5M - 1994. 0.20 MIN SEATING E) DRAWING FILE NAME: MA03DREV10 (0.55) PLANE SCALE: 2X

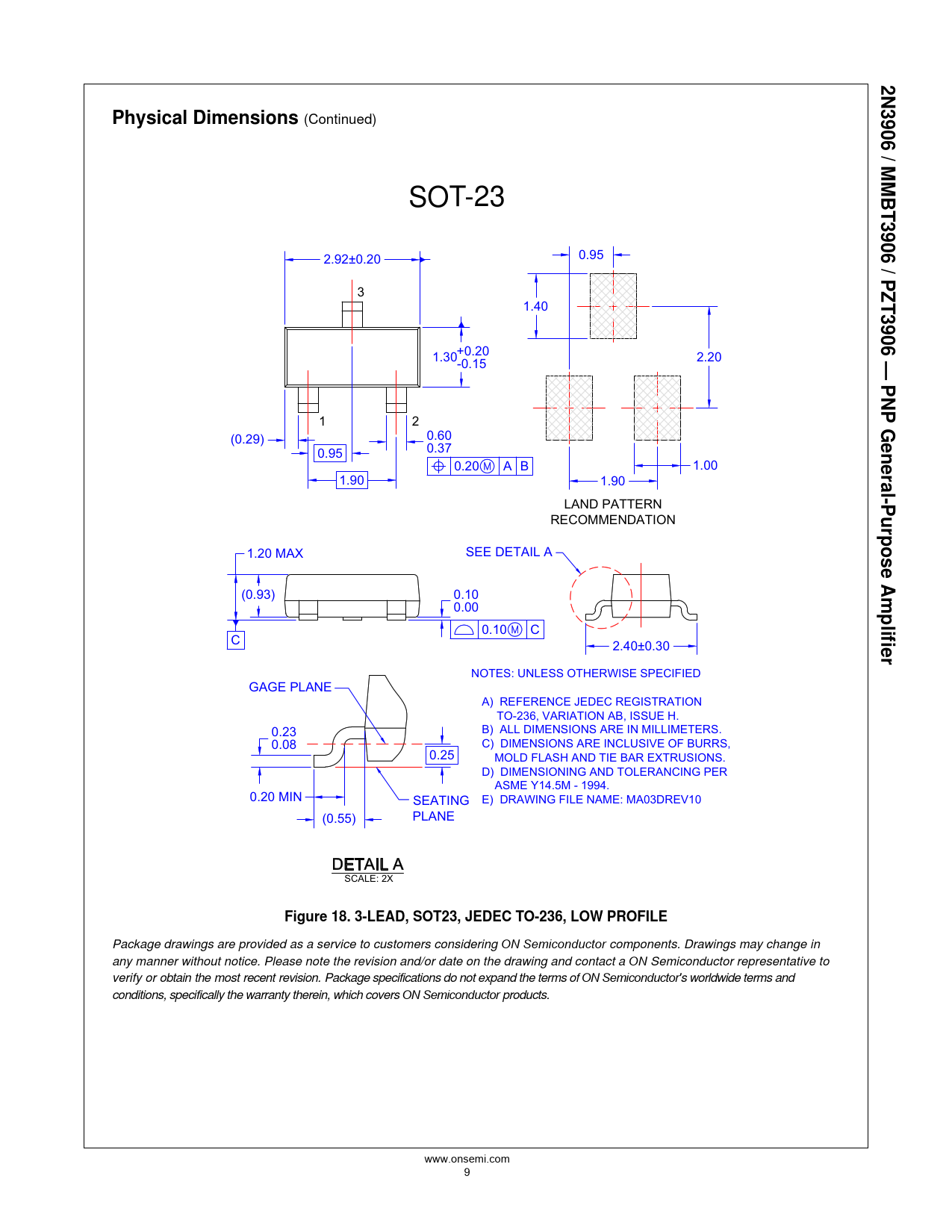

Figure 18. 3-LEAD, SOT23, JEDEC TO-236, LOW PROFILE
Package drawings are provided as a service to customers considering ON Semiconductor components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a ON Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of ON Semiconductor's worldwide terms and conditions, specifically the warranty therein, which covers ON Semiconductor products. www.onsemi.com 9
