Datasheet AS6500 (AustriaMicroSystems) - 7
| Manufacturer | AustriaMicroSystems |
| Description | Time-to-Digital Converter 4-channel TDC with CMOS inputs |
| Pages / Page | 56 / 7 — Pin. Not. Pin Name. Pin Type. Description. Number. Used |
| Revision | 3-00 |
| File Format / Size | PDF / 1.9 Mb |
| Document Language | English |
Pin. Not. Pin Name. Pin Type. Description. Number. Used
Model Line for this Datasheet
Text Version of Document

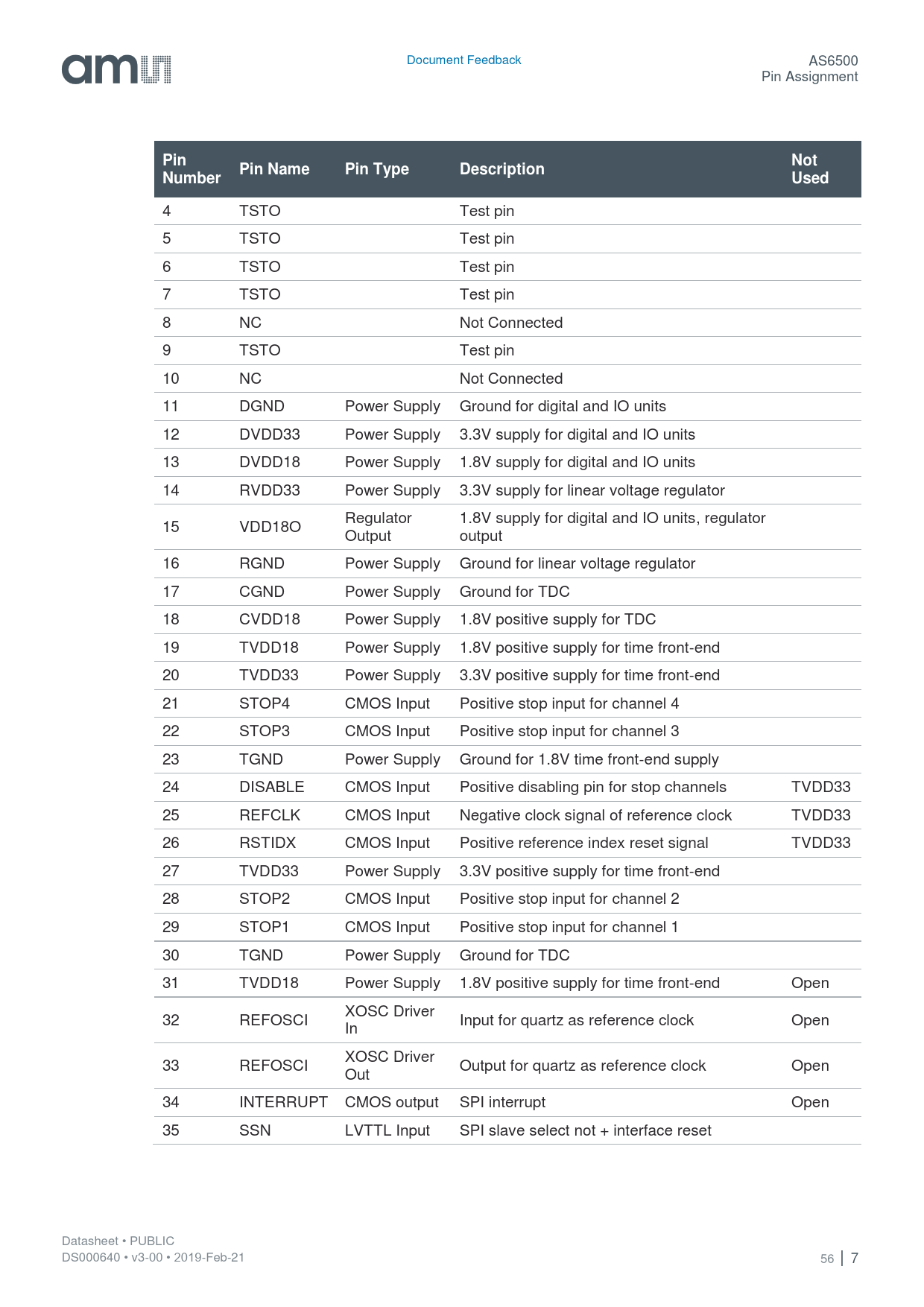

Document Feedback AS6500 Pin Assignment
Pin Not Pin Name Pin Type Description Number Used
4 TSTO Test pin 5 TSTO Test pin 6 TSTO Test pin 7 TSTO Test pin 8 NC Not Connected 9 TSTO Test pin 10 NC Not Connected 11 DGND Power Supply Ground for digital and IO units 12 DVDD33 Power Supply 3.3V supply for digital and IO units 13 DVDD18 Power Supply 1.8V supply for digital and IO units 14 RVDD33 Power Supply 3.3V supply for linear voltage regulator Regulator 1.8V supply for digital and IO units, regulator 15 VDD18O Output output 16 RGND Power Supply Ground for linear voltage regulator 17 CGND Power Supply Ground for TDC 18 CVDD18 Power Supply 1.8V positive supply for TDC 19 TVDD18 Power Supply 1.8V positive supply for time front-end 20 TVDD33 Power Supply 3.3V positive supply for time front-end 21 STOP4 CMOS Input Positive stop input for channel 4 22 STOP3 CMOS Input Positive stop input for channel 3 23 TGND Power Supply Ground for 1.8V time front-end supply 24 DISABLE CMOS Input Positive disabling pin for stop channels TVDD33 25 REFCLK CMOS Input Negative clock signal of reference clock TVDD33 26 RSTIDX CMOS Input Positive reference index reset signal TVDD33 27 TVDD33 Power Supply 3.3V positive supply for time front-end 28 STOP2 CMOS Input Positive stop input for channel 2 29 STOP1 CMOS Input Positive stop input for channel 1 30 TGND Power Supply Ground for TDC 31 TVDD18 Power Supply 1.8V positive supply for time front-end Open XOSC Driver 32 REFOSCI Input for quartz as reference clock Open In XOSC Driver 33 REFOSCI Output for quartz as reference clock Open Out 34 INTERRUPT CMOS output SPI interrupt Open 35 SSN LVTTL Input SPI slave select not + interface reset Datasheet • PUBLIC DS000640 • v3-00 • 2019-Feb-21 56 │ 7 Document Outline Content Guide 1 General Description 1.1 Key Benefits & Features 1.2 Applications 1.3 Block Diagram 2 Ordering Information 3 Pin Assignment 3.1 Pin Diagram 3.2 Pin Description 4 Absolute Maximum Ratings 5 Recommended Operation Conditions 6 Typical Characteristics 6.1 Converter Characteristics 6.2 Power Supply Characteristics 6.3 Reference Clock and Stop Input Requirements 6.4 Serial Communication Interface 6.5 Typical Operating Characteristics 7 Register Description 7.1 Register Overview 7.2 Detailed Register Description 7.2.1 CFG0 Register (Address 0) 7.2.2 CFG1 Register (Address 1) 7.2.3 CFG2 Register (Address 2) 7.2.4 CFG3, CFG4, CFG5 Registers (Addresses 3 to 5) 7.2.5 CFG6 Register (Address 6) 7.2.6 CFG7 Register (Address 7) 7.2.7 CFG8 to CFG15 Register (Addresses 8 to 15) 7.2.8 CFG16 Register (Address 16) 7.2.9 CHANNEL1 Result Register (Addresses 8 to 13) 7.2.10 CHANNEL2 Result Register (Addresses 14 to 19) 7.2.11 CHANNEL3 Result Register (Addresses 20 to 25) 7.2.12 CHANNEL4 Result Register (Addresses 26 to 31) 8 Detailed Description 8.1 Time Measurements and Results 8.1.1 Measurements of AS6500 8.1.2 Output Results 8.1.3 Calculation of Time Differences GENERAL APPROACH 8.2 Resolution 8.2.1 RMS-Resolution versus Effective Resolution 8.2.2 High Resolution 8.3 Combining Two Stop Channels 8.3.1 Channel Combination for Low Pulse-to-Pulse Spacing 8.3.2 Channel Combination for Pulse Width Measurement 8.4 Input Pins for Time Measurement 8.4.1 REFCLK: Reference Clock Input 8.4.2 RSTIDX: Reference Index Counter Reset 8.4.3 STOP1 to STOP4: Stop Channels 8.4.4 DISABLE: Stop Disable SOFTWARE ENABLE (HIT_ENA_STOP1…4) PIN ENABLE (PIN_ENA_XXX) 8.5 SPI Communication Interface 8.5.1 General 8.5.2 Detailed Pin Description 8.5.3 Communication Commands (Opcodes) 8.5.4 Data Readout via SPI Interface 8.6 Coding of Results 8.6.1 Configuration of LSB by REFCLK_DIVISIONS 8.6.2 Examples for Codes of Time Measurements Results 8.6.3 Maximum Time Differences 8.7 Conversion Latency and Conversion Rate Converter Latency 8.8 Conversion Rate 8.8.1 Peak Conversion Rate 8.8.2 Read-Out Rate 8.8.3 Average Conversion Rate 8.8.4 FIFOs for Adapting Peak and Average Conversion Rate 9 Application Information 9.1 Configuration Examples 9.2 Example C++ Code 9.3 Schematic 9.4 External Components 10 Package Drawings & Markings 11 Reel Information 12 Soldering & Storage Information 13 Revision Information 14 Legal Information
Pin Not Pin Name Pin Type Description Number Used
4 TSTO Test pin 5 TSTO Test pin 6 TSTO Test pin 7 TSTO Test pin 8 NC Not Connected 9 TSTO Test pin 10 NC Not Connected 11 DGND Power Supply Ground for digital and IO units 12 DVDD33 Power Supply 3.3V supply for digital and IO units 13 DVDD18 Power Supply 1.8V supply for digital and IO units 14 RVDD33 Power Supply 3.3V supply for linear voltage regulator Regulator 1.8V supply for digital and IO units, regulator 15 VDD18O Output output 16 RGND Power Supply Ground for linear voltage regulator 17 CGND Power Supply Ground for TDC 18 CVDD18 Power Supply 1.8V positive supply for TDC 19 TVDD18 Power Supply 1.8V positive supply for time front-end 20 TVDD33 Power Supply 3.3V positive supply for time front-end 21 STOP4 CMOS Input Positive stop input for channel 4 22 STOP3 CMOS Input Positive stop input for channel 3 23 TGND Power Supply Ground for 1.8V time front-end supply 24 DISABLE CMOS Input Positive disabling pin for stop channels TVDD33 25 REFCLK CMOS Input Negative clock signal of reference clock TVDD33 26 RSTIDX CMOS Input Positive reference index reset signal TVDD33 27 TVDD33 Power Supply 3.3V positive supply for time front-end 28 STOP2 CMOS Input Positive stop input for channel 2 29 STOP1 CMOS Input Positive stop input for channel 1 30 TGND Power Supply Ground for TDC 31 TVDD18 Power Supply 1.8V positive supply for time front-end Open XOSC Driver 32 REFOSCI Input for quartz as reference clock Open In XOSC Driver 33 REFOSCI Output for quartz as reference clock Open Out 34 INTERRUPT CMOS output SPI interrupt Open 35 SSN LVTTL Input SPI slave select not + interface reset Datasheet • PUBLIC DS000640 • v3-00 • 2019-Feb-21 56 │ 7 Document Outline Content Guide 1 General Description 1.1 Key Benefits & Features 1.2 Applications 1.3 Block Diagram 2 Ordering Information 3 Pin Assignment 3.1 Pin Diagram 3.2 Pin Description 4 Absolute Maximum Ratings 5 Recommended Operation Conditions 6 Typical Characteristics 6.1 Converter Characteristics 6.2 Power Supply Characteristics 6.3 Reference Clock and Stop Input Requirements 6.4 Serial Communication Interface 6.5 Typical Operating Characteristics 7 Register Description 7.1 Register Overview 7.2 Detailed Register Description 7.2.1 CFG0 Register (Address 0) 7.2.2 CFG1 Register (Address 1) 7.2.3 CFG2 Register (Address 2) 7.2.4 CFG3, CFG4, CFG5 Registers (Addresses 3 to 5) 7.2.5 CFG6 Register (Address 6) 7.2.6 CFG7 Register (Address 7) 7.2.7 CFG8 to CFG15 Register (Addresses 8 to 15) 7.2.8 CFG16 Register (Address 16) 7.2.9 CHANNEL1 Result Register (Addresses 8 to 13) 7.2.10 CHANNEL2 Result Register (Addresses 14 to 19) 7.2.11 CHANNEL3 Result Register (Addresses 20 to 25) 7.2.12 CHANNEL4 Result Register (Addresses 26 to 31) 8 Detailed Description 8.1 Time Measurements and Results 8.1.1 Measurements of AS6500 8.1.2 Output Results 8.1.3 Calculation of Time Differences GENERAL APPROACH 8.2 Resolution 8.2.1 RMS-Resolution versus Effective Resolution 8.2.2 High Resolution 8.3 Combining Two Stop Channels 8.3.1 Channel Combination for Low Pulse-to-Pulse Spacing 8.3.2 Channel Combination for Pulse Width Measurement 8.4 Input Pins for Time Measurement 8.4.1 REFCLK: Reference Clock Input 8.4.2 RSTIDX: Reference Index Counter Reset 8.4.3 STOP1 to STOP4: Stop Channels 8.4.4 DISABLE: Stop Disable SOFTWARE ENABLE (HIT_ENA_STOP1…4) PIN ENABLE (PIN_ENA_XXX) 8.5 SPI Communication Interface 8.5.1 General 8.5.2 Detailed Pin Description 8.5.3 Communication Commands (Opcodes) 8.5.4 Data Readout via SPI Interface 8.6 Coding of Results 8.6.1 Configuration of LSB by REFCLK_DIVISIONS 8.6.2 Examples for Codes of Time Measurements Results 8.6.3 Maximum Time Differences 8.7 Conversion Latency and Conversion Rate Converter Latency 8.8 Conversion Rate 8.8.1 Peak Conversion Rate 8.8.2 Read-Out Rate 8.8.3 Average Conversion Rate 8.8.4 FIFOs for Adapting Peak and Average Conversion Rate 9 Application Information 9.1 Configuration Examples 9.2 Example C++ Code 9.3 Schematic 9.4 External Components 10 Package Drawings & Markings 11 Reel Information 12 Soldering & Storage Information 13 Revision Information 14 Legal Information
