Datasheet HMC3587LP3BE (Analog Devices) - 6

HMC3587LP3BE
v02.0717
HBT GAIN BLOCK MMIC AMPLIFIER, 4 - 10 GHz Pin Descriptions

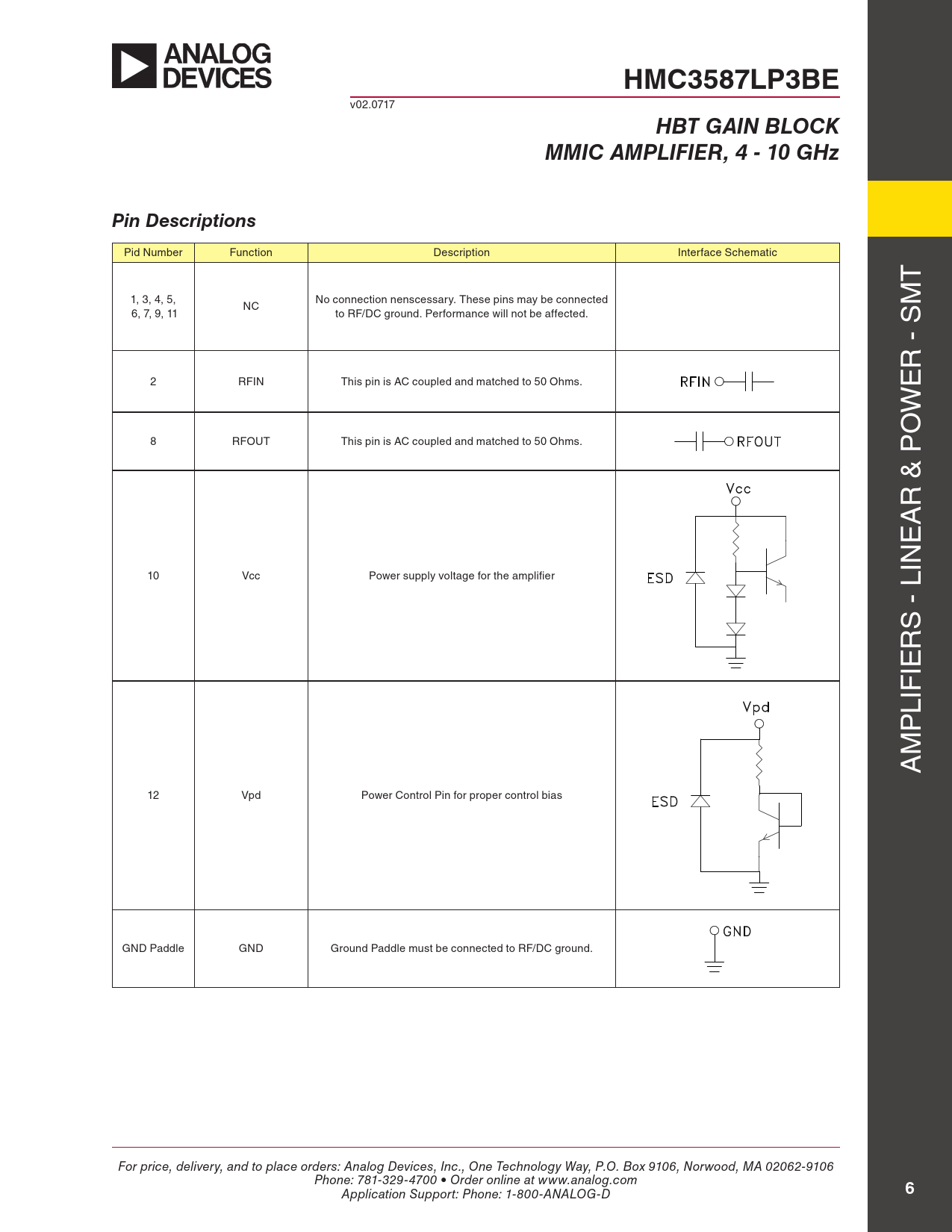

pid number function Description interface schematic T 1, 3, 4, 5, no connection nenscessary. These pins may be connected nC m 6, 7, 9, 11 to rf/DC ground. performance will not be affected. s r - 2 rfin This pin is AC coupled and matched to 50 ohms. e w o 8 rfoUT This pin is AC coupled and matched to 50 ohms. p r & A e 10 Vcc power supply voltage for the amplifier lin s - r ie lif p m A 12 Vpd power Control pin for proper control bias GnD paddle GnD Ground paddle must be connected to rf/DC ground. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
