Datasheet SM8S-Q (Bourns) - 6
| Manufacturer | Bourns |
| Description | 6600 W TVS Diodes - VWM 16~43 V - DO-218 Package - AEC-Q101 Compliant |
| Pages / Page | 8 / 6 — SM8S-Q Transient Voltage Suppressor Diode Series. Physical … |
| File Format / Size | PDF / 523 Kb |
| Document Language | English |

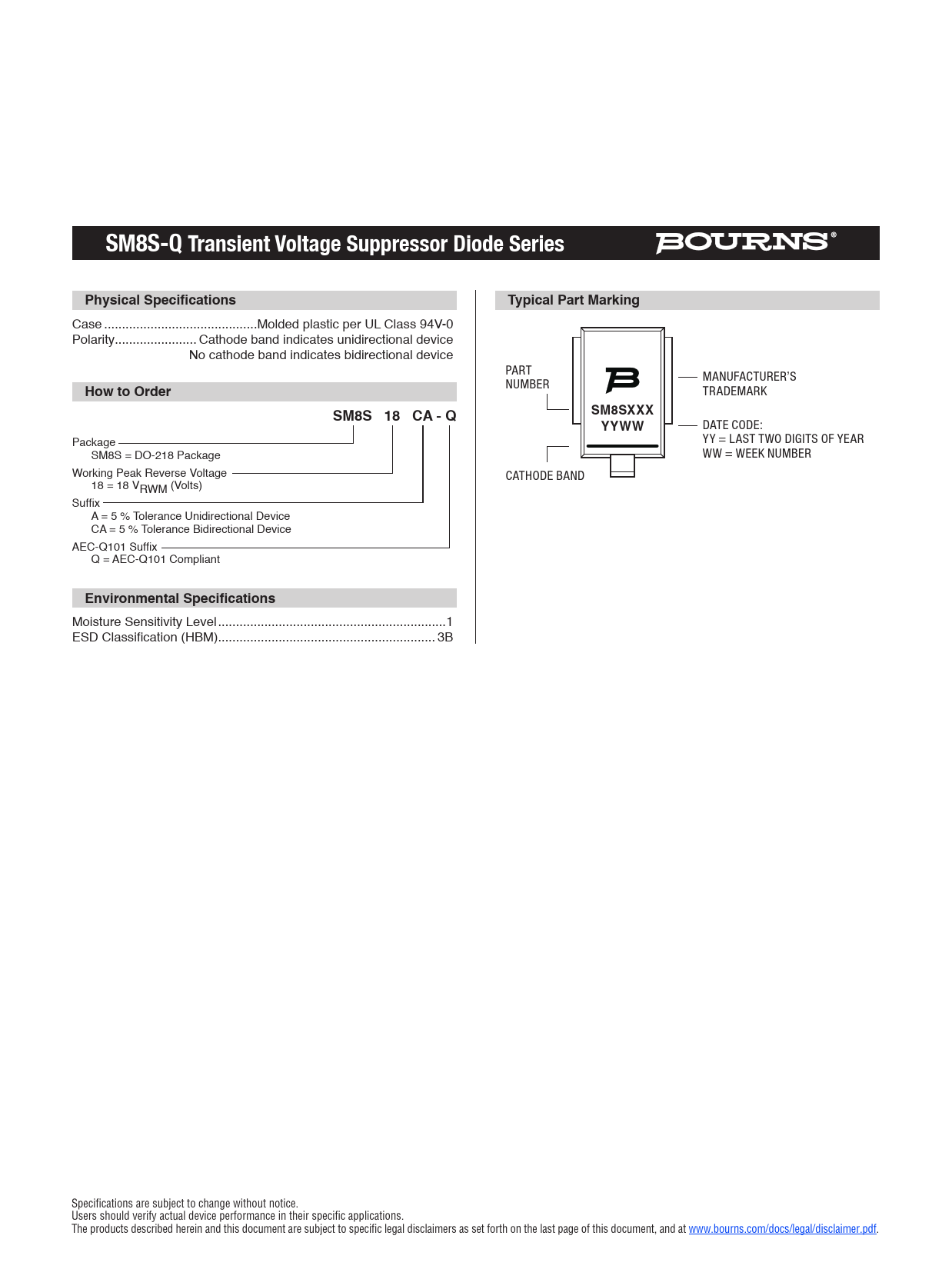

SM8S-Q Transient Voltage Suppressor Diode Series. Physical Specifications. Typical Part Marking. How to Order. SM8S 18 CA - Q
Model Line for this Datasheet
- SM8S16A SM8S16A-Q SM8S16CA SM8S16CA-Q SM8S17A SM8S17A-Q SM8S17CA SM8S17CA-Q SM8S18A SM8S18A-Q SM8S18CA SM8S18CA-Q SM8S20A SM8S20A-Q SM8S20CA SM8S20CA-Q SM8S22A SM8S22A-Q SM8S22CA SM8S22CA-Q SM8S24A SM8S24A-Q SM8S24CA SM8S24CA-Q SM8S26A SM8S26A-Q SM8S26CA SM8S26CA-Q SM8S28A SM8S28A-Q SM8S28CA SM8S28CA-Q SM8S30A SM8S30A-Q SM8S30CA SM8S30CA-Q SM8S33A SM8S33A-Q SM8S33CA SM8S33CA-Q SM8S36A SM8S36A-Q SM8S36CA SM8S36CA-Q SM8S40A SM8S40A-Q SM8S40CA SM8S40CA-Q SM8S43A SM8S43A-Q SM8S43CA SM8S43CA-Q
Text Version of Document
SM8S-Q Transient Voltage Suppressor Diode Series Physical Specifications Typical Part Marking
Case ...Molded plastic per UL Class 94V-0 Polarity... Cathode band indicates unidirectional device No cathode band indicates bidirectional device PART MANUFACTURER’S
How to Order
NUMBER TRADEMARK
SM8S 18 CA - Q SM8SXXX YYWW
DATE CODE: Package YY = LAST TWO DIGITS OF YEAR SM8S = DO-218 Package WW = WEEK NUMBER Working Peak Reverse Voltage CATHODE BAND 18 = 18 VRWM (Volts) Suffix A = 5 % Tolerance Unidirectional Device CA = 5 % Tolerance Bidirectional Device AEC-Q101 Suffix Q = AEC-Q101 Compliant
Environmental Specifications
Moisture Sensitivity Level ..1 ESD Classification (HBM)... 3B Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.
