Datasheet ADUM3123 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | Isolated Precision Gate Driver, 4 A Output |
| Pages / Page | 15 / 9 — Data Sheet. ADuM3123. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VDD1 … |
| File Format / Size | PDF / 493 Kb |
| Document Language | English |

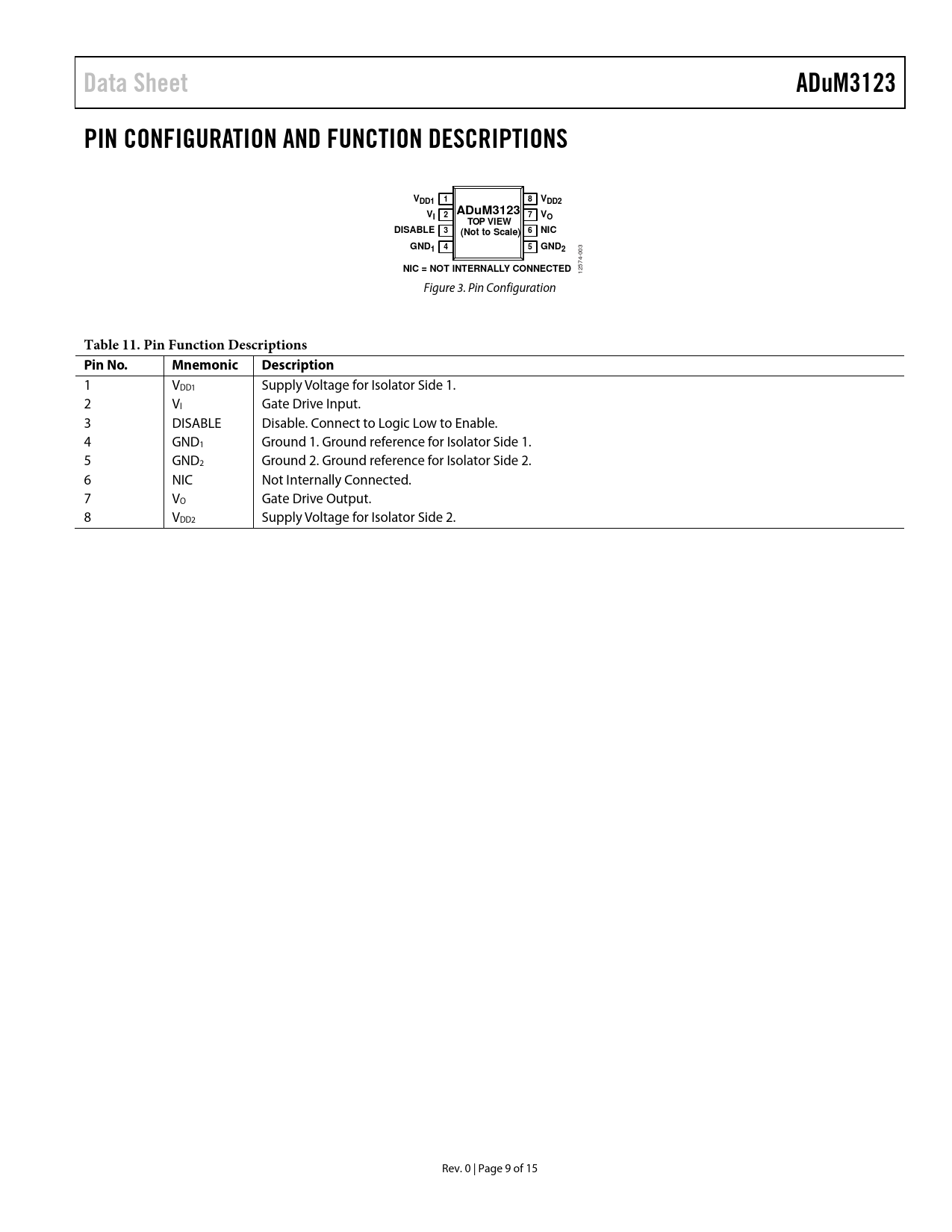

Data Sheet. ADuM3123. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VDD1 1. VDD2. TOP VIEW. DISABLE. NIC. (Not to Scale). GND1 4. GND2
Model Line for this Datasheet
Text Version of Document
Data Sheet ADuM3123 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS VDD1 1 8 VDD2 V ADuM3123 2 V I 7 O TOP VIEW DISABLE 3 6 NIC (Not to Scale) GND1 4 5 GND2
003
NIC = NOT INTERNALLY CONNECTED
12574- Figure 3. Pin Configuration
Table 11. Pin Function Descriptions Pin No. Mnemonic Description
