Data Sheet. ADuM5230. PACKAGE CHARACTERISTICS. Table 2. Parameter. Symbol. Min. Typ. Max. Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
link to page 5

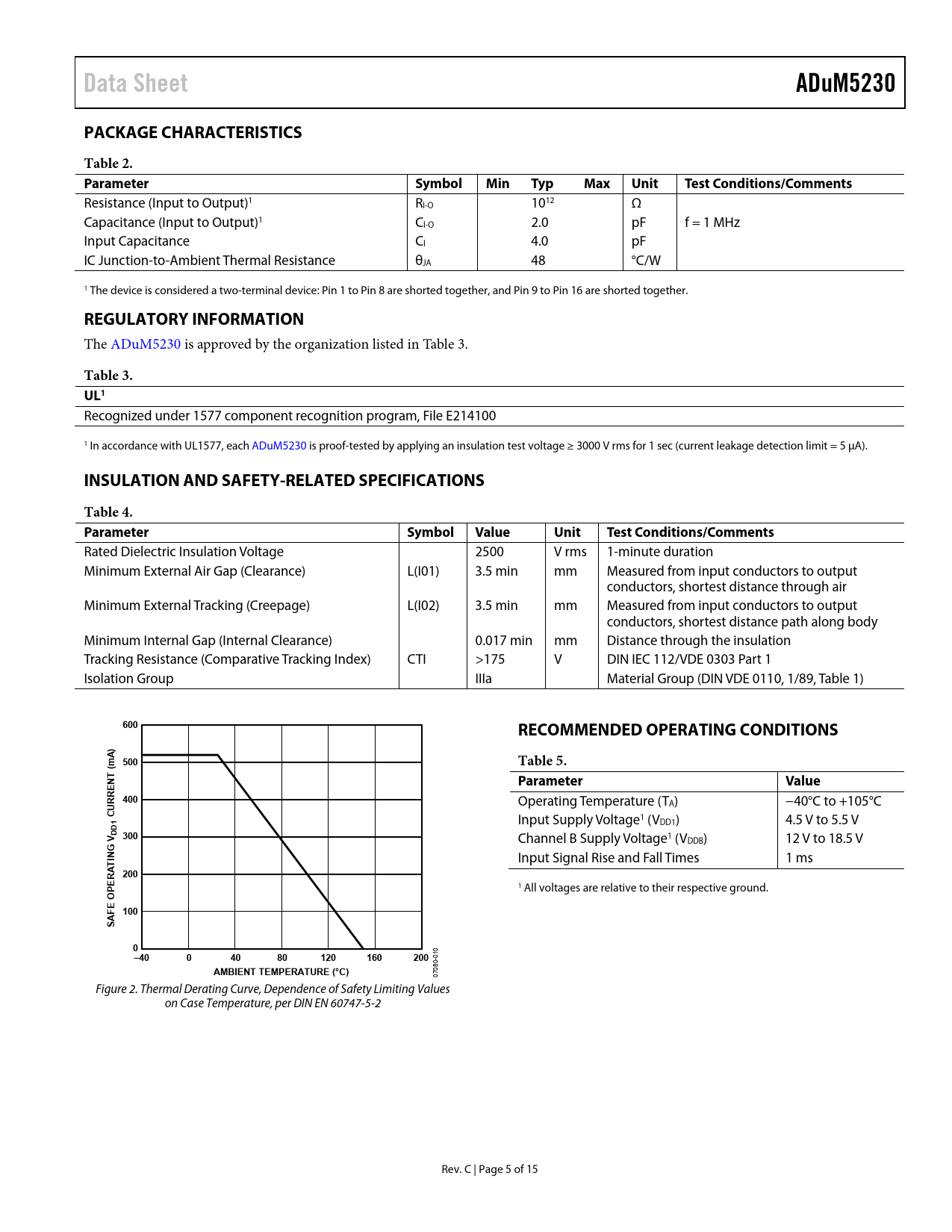

Data Sheet ADuM5230 PACKAGE CHARACTERISTICS Table 2. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
Resistance (Input to Output)1 RI-O 1012 Ω Capacitance (Input to Output)1 CI-O 2.0 pF f = 1 MHz Input Capacitance CI 4.0 pF IC Junction-to-Ambient Thermal Resistance θJA 48 °C/W 1 The device is considered a two-terminal device: Pin 1 to Pin 8 are shorted together, and Pin 9 to Pin 16 are shorted together.
REGULATORY INFORMATION
The ADuM5230 is approved by the organization listed in Table 3.
Table 3. UL1
Recognized under 1577 component recognition program, File E214100 1 In accordance with UL1577, each ADuM5230 is proof-tested by applying an insulation test voltage ≥ 3000 V rms for 1 sec (current leakage detection limit = 5 μA).
INSULATION AND SAFETY-RELATED SPECIFICATIONS Table 4. Parameter Symbol Value Unit Test Conditions/Comments
Rated Dielectric Insulation Voltage 2500 V rms 1-minute duration Minimum External Air Gap (Clearance) L(I01) 3.5 min mm Measured from input conductors to output conductors, shortest distance through air Minimum External Tracking (Creepage) L(I02) 3.5 min mm Measured from input conductors to output conductors, shortest distance path along body Minimum Internal Gap (Internal Clearance) 0.017 min mm Distance through the insulation Tracking Resistance (Comparative Tracking Index) CTI >175 V DIN IEC 112/VDE 0303 Part 1 Isolation Group IIIa Material Group (DIN VDE 0110, 1/89, Table 1)
600 RECOMMENDED OPERATING CONDITIONS A) 500 Table 5. (m NT Parameter Value 400
Operating Temperature (TA) −40°C to +105°C
CURRE
Input Supply Voltage1 (VDD1) 4.5 V to 5.5 V
DD1 300
Channel B Supply Voltage1 (VDDB) 12 V to 18.5 V
G V IN T
Input Signal Rise and Fall Times 1 ms
A 200 R E P
1 All voltages are relative to their respective ground.
O E F 100 A S 0–40 0 40 80 120 160 200
0100-
AMBIENT TEMPERATURE (°C)
08 07 Figure 2. Thermal Derating Curve, Dependence of Safety Limiting Values on Case Temperature, per DIN EN 60747-5-2 Rev. C | Page 5 of 15 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS PACKAGE CHARACTERISTICS REGULATORY INFORMATION INSULATION AND SAFETY-RELATED SPECIFICATIONS RECOMMENDED OPERATING CONDITIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFOMANCE CHARACTERISTICS APPLICATIONS INFORMATION THEORY OF OPERATION PRINTED CIRCUIT BOARD (PCB) LAYOUT THERMAL ANALYSIS PROPAGATION DELAY-RELATED PARAMETERS DC CORRECTNESS AND MAGNETIC FIELD IMMUNITY POWER CONSUMPTION INCREASING AND DECREASING AVAILABLE POWER COMMON-MODE TRANSIENT IMMUNITY TYPICAL APPLICATION USAGE INSULATION LIFETIME OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
