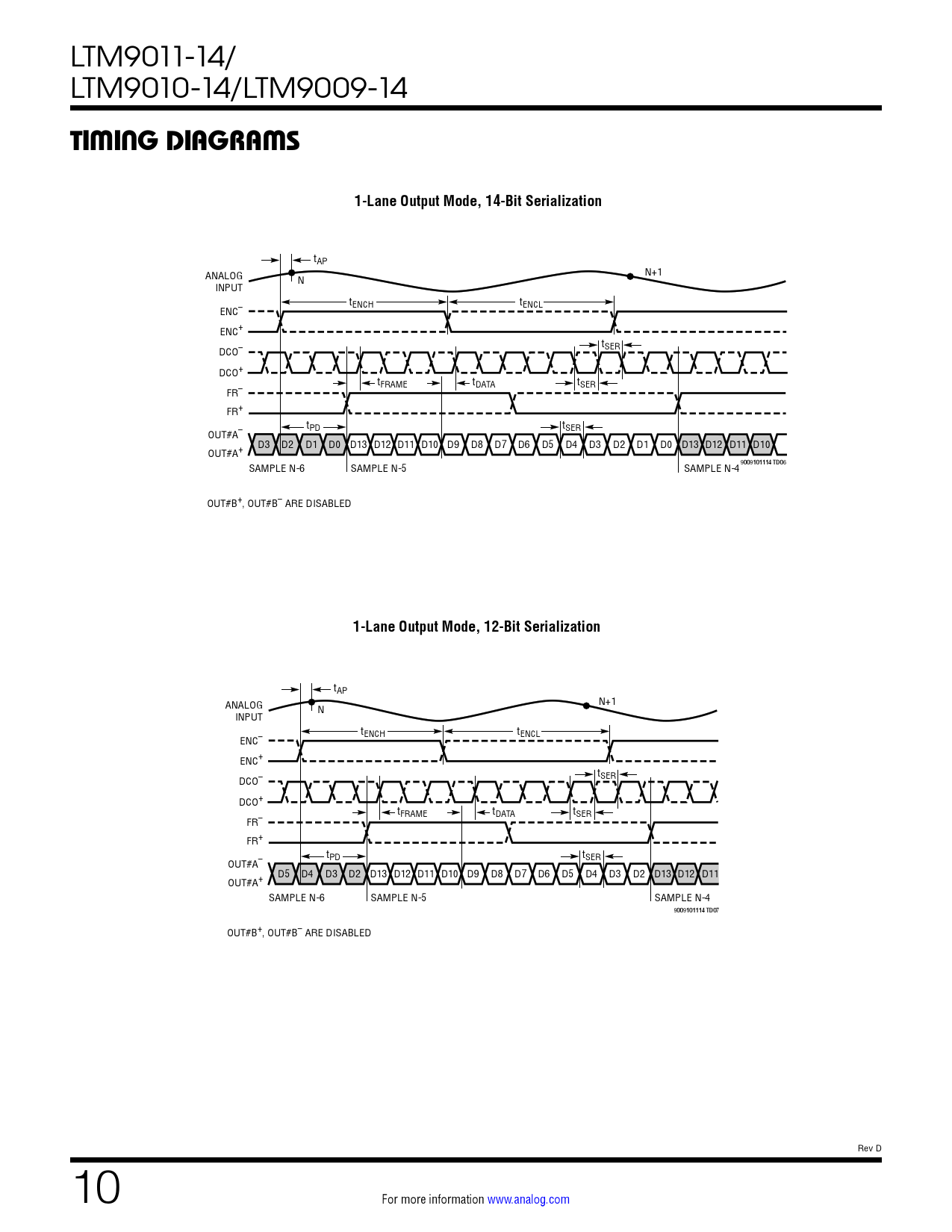

LTM9011-14/ LTM9010-14/LTM9009-14 TIMING DIAGRAMS
1-Lane Output Mode, 14-Bit Serialization
tAP ANALOG N+1 N INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D3 D2 D1 D0 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 D13 D12 D11 D10 OUT#A+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-49009101114 TD06 OUT#B+, OUT#B– ARE DISABLED
1-Lane Output Mode, 12-Bit Serialization
tAP ANALOG N+1 N INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D5 D4 D3 D2 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D13 D12 D11 OUT#A+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 9009101114 TD07 OUT#B+, OUT#B– ARE DISABLED Rev D 10 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Pin Configuration Table Functional Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
