Datasheet RH1021-10 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Precision 10V Reference |
| Pages / Page | 6 / 6 — TYPICAL PERFORMANCE CHARACTERISTICS. Output Voltage. Load Regulation … |
| Revision | F |
| File Format / Size | PDF / 667 Kb |
| Document Language | English |

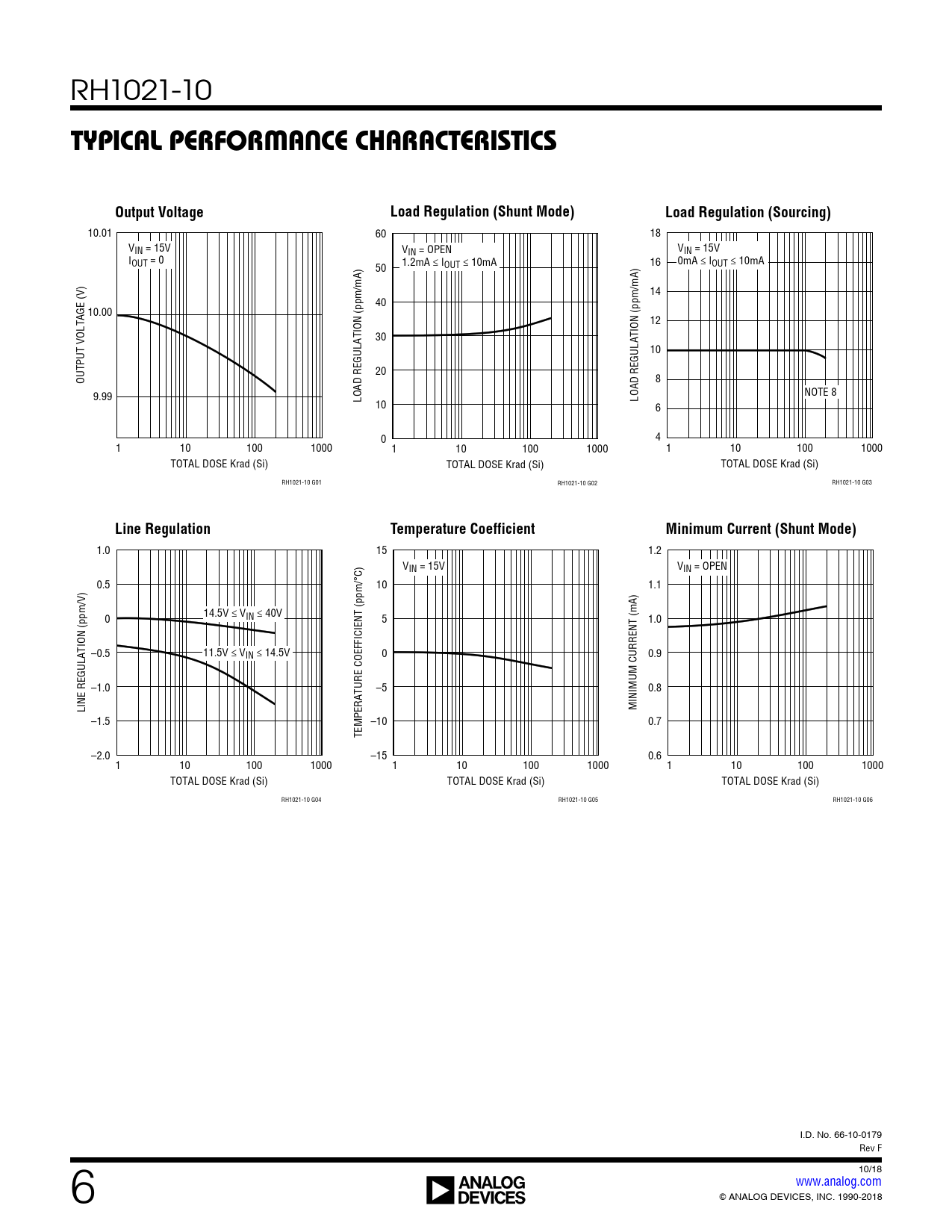

TYPICAL PERFORMANCE CHARACTERISTICS. Output Voltage. Load Regulation (Shunt Mode). Load Regulation (Sourcing). Line Regulation
Model Line for this Datasheet
Text Version of Document
RH1021-10
TYPICAL PERFORMANCE CHARACTERISTICS Output Voltage Load Regulation (Shunt Mode) Load Regulation (Sourcing)
10.01 60 18 VIN = 15V VIN = OPEN VIN = 15V IOUT = 0 0mA ≤ I 50 1.2mA ≤ IOUT ≤ 10mA 16 OUT ≤ 10mA 14 40 10.00 12 30 10 20 OUTPUT VOLTAGE (V) 8 9.99 LOAD REGULATION (ppm/mA) LOAD REGULATION (ppm/mA) NOTE 8 10 6 0 4 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) RH1021-10 G01 RH1021-10 G02 RH1021-10 G03
Line Regulation Temperature Coefficient Minimum Current (Shunt Mode)
1.0 15 1.2 VIN = 15V VIN = OPEN 0.5 10 1.1 0 14.5V ≤ VIN ≤ 40V 5 1.0 –0.5 11.5V ≤ VIN ≤ 14.5V 0 0.9 –1.0 –5 0.8 LINE REGULATION (ppm/V) MINIMUM CURRENT (mA) –1.5 –10 0.7 TEMPERATURE COEFFICIENT (ppm/°C) –2.0 –15 0.6 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) TOTAL DOSE Krad (Si) RH1021-10 G04 RH1021-10 G05 RH1021-10 G06 I.D. No. 66-10-0179 Rev F 6 10/18 www.analog.com ANALOG DEVICES, INC. 1990-2018 Document Outline Description Absolute Maximum Ratings Burn-In Circuits Pin Configuration Order Information Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Table 2: Electrical Test Requirements Total Dose Bias Circuit Revision History Typical Performance Characteristics
