Datasheet BC856W, BC857W, BC858W, BC859W, BC860W (Infineon)
| Manufacturer | Infineon |
| Description | PNP Silicon AF Transistors SOT-323 |
| Pages / Page | 11 / 1 — BC856W...BC860W. PNP Silicon AF Transistors. Type. Marking. Pin … |
| File Format / Size | PDF / 187 Kb |
| Document Language | English |

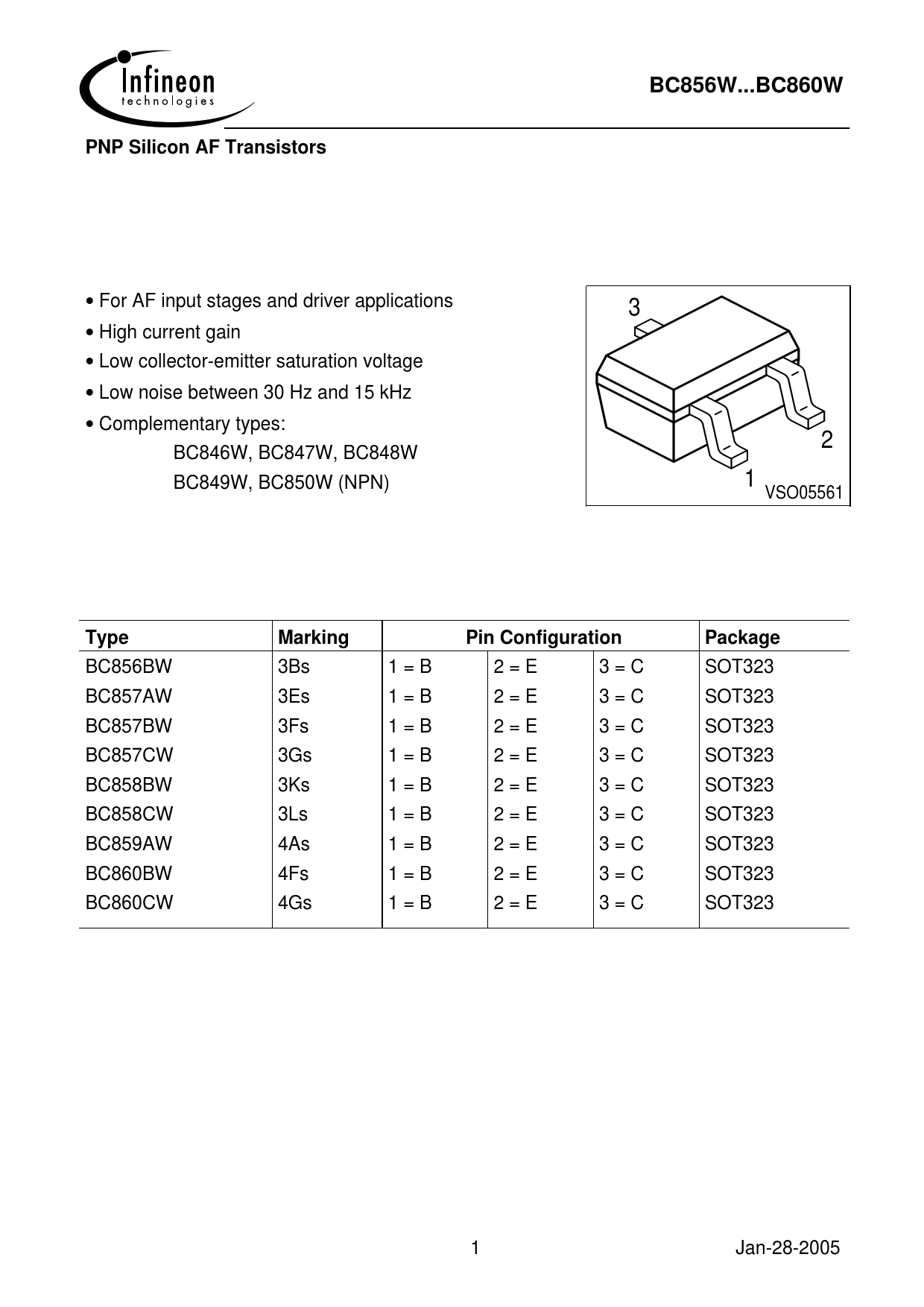

BC856W...BC860W. PNP Silicon AF Transistors. Type. Marking. Pin Configuration. Package
Model Line for this Datasheet
Text Version of Document
BC856W...BC860W PNP Silicon AF Transistors
• For AF input stages and driver applications 3 • High current gain • Low collector-emitter saturation voltage • Low noise between 30 Hz and 15 kHz • Complementary types: 2 BC846W, BC847W, BC848W BC849W, BC850W (NPN) 1 VSO05561
Type Marking Pin Configuration Package
BC856BW 3Bs 1 = B 2 = E 3 = C SOT323 BC857AW 3Es 1 = B 2 = E 3 = C SOT323 BC857BW 3Fs 1 = B 2 = E 3 = C SOT323 BC857CW 3Gs 1 = B 2 = E 3 = C SOT323 BC858BW 3Ks 1 = B 2 = E 3 = C SOT323 BC858CW 3Ls 1 = B 2 = E 3 = C SOT323 BC859AW 4As 1 = B 2 = E 3 = C SOT323 BC860BW 4Fs 1 = B 2 = E 3 = C SOT323 BC860CW 4Gs 1 = B 2 = E 3 = C SOT323 1 Jan-28-2005
• For AF input stages and driver applications 3 • High current gain • Low collector-emitter saturation voltage • Low noise between 30 Hz and 15 kHz • Complementary types: 2 BC846W, BC847W, BC848W BC849W, BC850W (NPN) 1 VSO05561
Type Marking Pin Configuration Package
BC856BW 3Bs 1 = B 2 = E 3 = C SOT323 BC857AW 3Es 1 = B 2 = E 3 = C SOT323 BC857BW 3Fs 1 = B 2 = E 3 = C SOT323 BC857CW 3Gs 1 = B 2 = E 3 = C SOT323 BC858BW 3Ks 1 = B 2 = E 3 = C SOT323 BC858CW 3Ls 1 = B 2 = E 3 = C SOT323 BC859AW 4As 1 = B 2 = E 3 = C SOT323 BC860BW 4Fs 1 = B 2 = E 3 = C SOT323 BC860CW 4Gs 1 = B 2 = E 3 = C SOT323 1 Jan-28-2005
