Datasheet AD8213 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Dual, High Voltage Current Shunt Monitor |
| Pages / Page | 14 / 5 — Data Sheet. AD8213. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN2 1. … |
| Revision | D |
| File Format / Size | PDF / 412 Kb |
| Document Language | English |

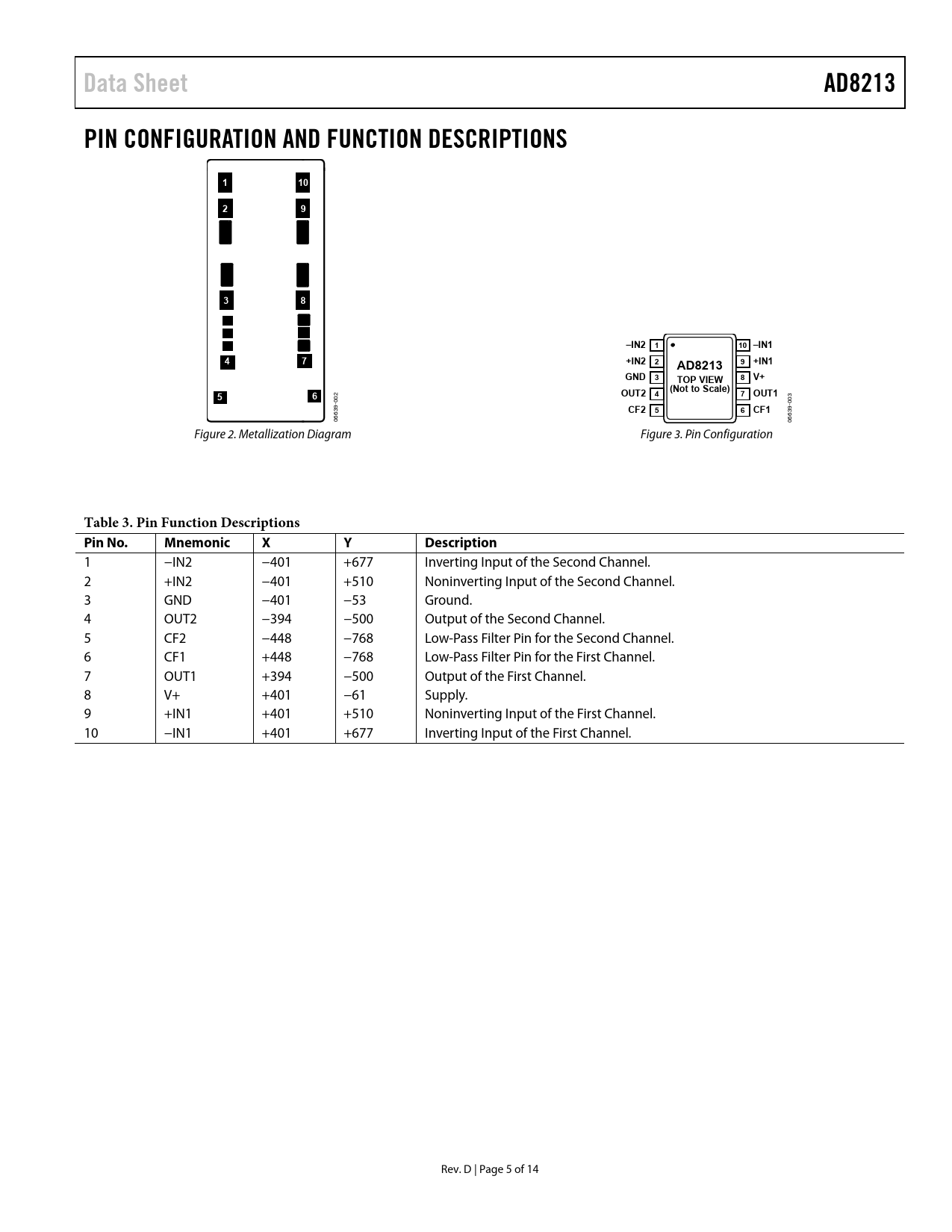

Data Sheet. AD8213. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. –IN2 1. 10 –IN1. +IN2 2. 9 +IN1. GND 3. 8 V+. TOP VIEW. (Not to Scale)
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8213 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 10 2 9 3 8 –IN2 1 10 –IN1 4 7 +IN2 2 9 +IN1 AD8213 GND 3 8 V+ TOP VIEW (Not to Scale) 5 6 OUT2 4 7 OUT1
02 3 0 00 9-
CF2 5 6 CF1
9- 63 63 06 06 Figure 2. Metallization Diagram Figure 3. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic X Y Description
1 −IN2 −401 +677 Inverting Input of the Second Channel. 2 +IN2 −401 +510 Noninverting Input of the Second Channel. 3 GND −401 −53 Ground. 4 OUT2 −394 −500 Output of the Second Channel. 5 CF2 −448 −768 Low-Pass Filter Pin for the Second Channel. 6 CF1 +448 −768 Low-Pass Filter Pin for the First Channel. 7 OUT1 +394 −500 Output of the First Channel. 8 V+ +401 −61 Supply. 9 +IN1 +401 +510 Noninverting Input of the First Channel. 10 −IN1 +401 +677 Inverting Input of the First Channel. Rev. D | Page 5 of 14 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATION NOTES OUTPUT LINEARITY LOW-PASS FILTERING APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSE WITH A LOW-SIDE SWITCH HIGH-SIDE CURRENT SENSING LOW-SIDE CURRENT SENSING BIDIRECTIONAL CURRENT SENSING OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
