Datasheet AD8305 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 100 dB-range (10nA-1mA) Logarithmic Converter |
| Pages / Page | 24 / 4 — AD8305. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revision | C |
| File Format / Size | PDF / 567 Kb |
| Document Language | English |

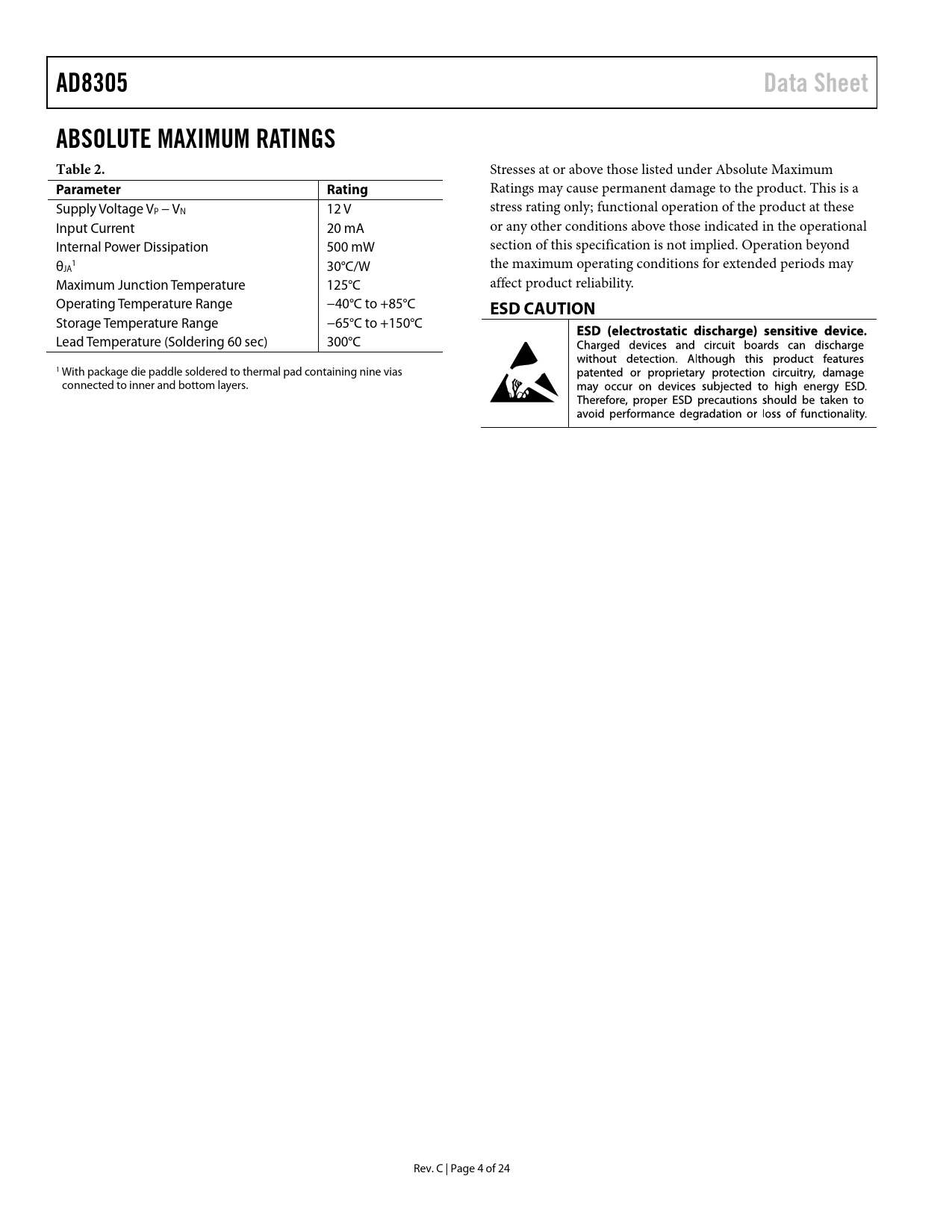

AD8305. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
AD8305 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage VP − VN 12 V stress rating only; functional operation of the product at these Input Current 20 mA or any other conditions above those indicated in the operational Internal Power Dissipation 500 mW section of this specification is not implied. Operation beyond θ 1 JA 30°C/W the maximum operating conditions for extended periods may Maximum Junction Temperature 125°C affect product reliability. Operating Temperature Range −40°C to +85°C
ESD CAUTION
Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering 60 sec) 300°C 1 With package die paddle soldered to thermal pad containing nine vias connected to inner and bottom layers. Rev. C | Page 4 of 24 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics General Structure Theory Managing Intercept and Slope Response Time and Noise Considerations Power Supply Sequencing Applications Information Calibration Using a Negative Supply Log-Ratio Applications Reversing The Input Polarity Characterization Methods Evaluation Board Outline Dimensions Ordering Guide
