Datasheet AD8305 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 100 dB-range (10nA-1mA) Logarithmic Converter |
| Pages / Page | 24 / 5 — Data Sheet. AD8305. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. 16 CO. … |
| Revision | C |
| File Format / Size | PDF / 567 Kb |
| Document Language | English |
Data Sheet. AD8305. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. 16 CO. 15 CO. 14 CO. 13 CO. VRDZ 1. 12 VOUT. VREF 2. 11 SCAL. TOP VIEW. IREF 3
Model Line for this Datasheet
Text Version of Document
link to page 14

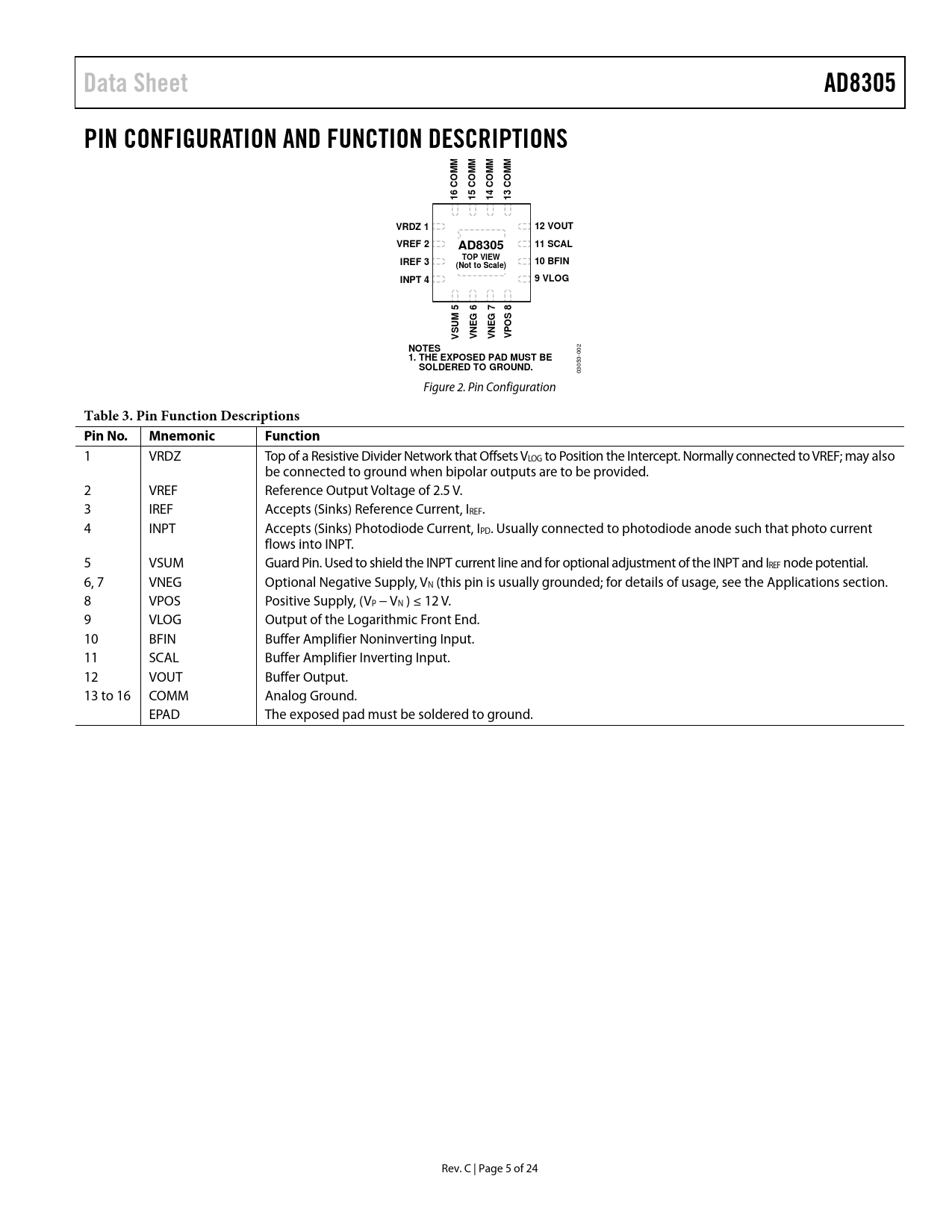

Data Sheet AD8305 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS M M M M M M M M 16 CO 15 CO 14 CO 13 CO VRDZ 1 12 VOUT VREF 2 11 SCAL AD8305 TOP VIEW IREF 3 10 BFIN (Not to Scale) INPT 4 9 VLOG 6 7 M 5 S 8 EG EG VSU VN VN VPO NOTES
002
1. THE EXPOSED PAD MUST BE SOLDERED TO GROUND.
03053- Figure 2. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic Function
1 VRDZ Top of a Resistive Divider Network that Offsets VLOG to Position the Intercept. Normal y connected to VREF; may also be connected to ground when bipolar outputs are to be provided. 2 VREF Reference Output Voltage of 2.5 V. 3 IREF Accepts (Sinks) Reference Current, IREF. 4 INPT Accepts (Sinks) Photodiode Current, IPD. Usually connected to photodiode anode such that photo current flows into INPT. 5 VSUM Guard Pin. Used to shield the INPT current line and for optional adjustment of the INPT and IREF node potential. 6, 7 VNEG Optional Negative Supply, VN (this pin is usually grounded; for details of usage, see the Applications section. 8 VPOS Positive Supply, (VP − VN ) ≤ 12 V. 9 VLOG Output of the Logarithmic Front End. 10 BFIN Buffer Amplifier Noninverting Input. 11 SCAL Buffer Amplifier Inverting Input. 12 VOUT Buffer Output. 13 to 16 COMM Analog Ground. EPAD The exposed pad must be soldered to ground. Rev. C | Page 5 of 24 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics General Structure Theory Managing Intercept and Slope Response Time and Noise Considerations Power Supply Sequencing Applications Information Calibration Using a Negative Supply Log-Ratio Applications Reversing The Input Polarity Characterization Methods Evaluation Board Outline Dimensions Ordering Guide
