BM83. Device Overview. 2.1. BM83 Module Pin Diagram. Figure 2-2. BM83 Module Pin Diagram. Datasheet
Model Line for this Datasheet
Text Version of Document
BM83 Device Overview 2.1 BM83 Module Pin Diagram

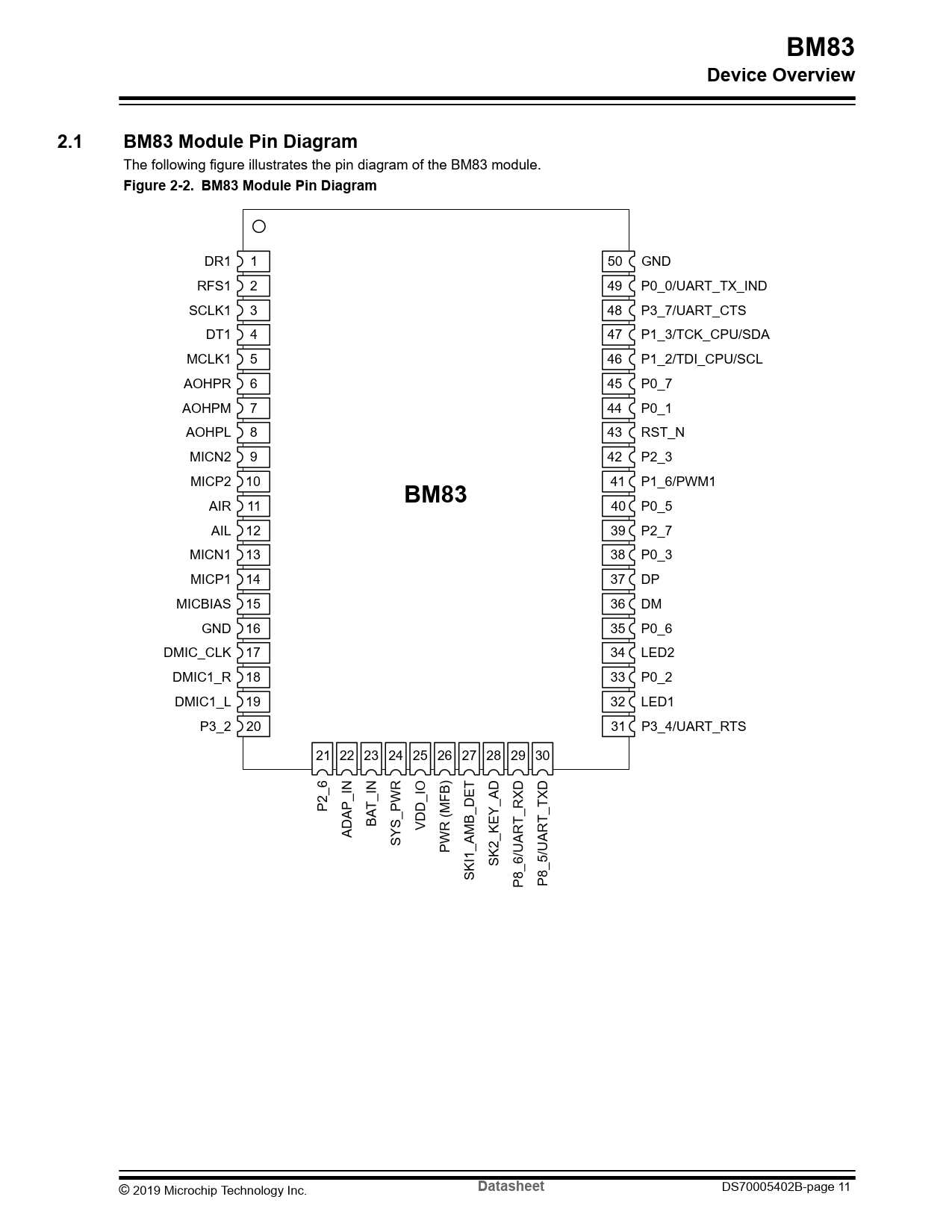

The following figure illustrates the pin diagram of the BM83 module.
Figure 2-2. BM83 Module Pin Diagram
DR1 1 50 GND RFS1 2 49 P0_0/UART_TX_IND SCLK1 3 48 P3_7/UART_CTS DT1 4 47 P1_3/TCK_CPU/SDA MCLK1 5 46 P1_2/TDI_CPU/SCL AOHPR 6 45 P0_7 AOHPM 7 44 P0_1 AOHPL 8 43 RST_N MICN2 9 42 P2_3 MICP2 10 41 P1_6/PWM1
BM83
AIR 11 40 P0_5 AIL 12 39 P2_7 MICN1 13 38 P0_3 MICP1 14 37 DP MICBIAS 15 36 DM GND 16 35 P0_6 DMIC_CLK 17 34 LED2 DMIC1_R 18 33 P0_2 DMIC1_L 19 32 LED1 P3_2 20 31 P3_4/UART_RTS 21 22 23 24 25 26 27 28 29 30 P2_6 T_IN BA T_RXD VDD_IO T_TXD ADAP_IN SYS_PWR PWR (MFB) SK2_KEY_AD SKI1_AMB_DET P8_6/UAR P8_5/UAR © 2019 Microchip Technology Inc.
