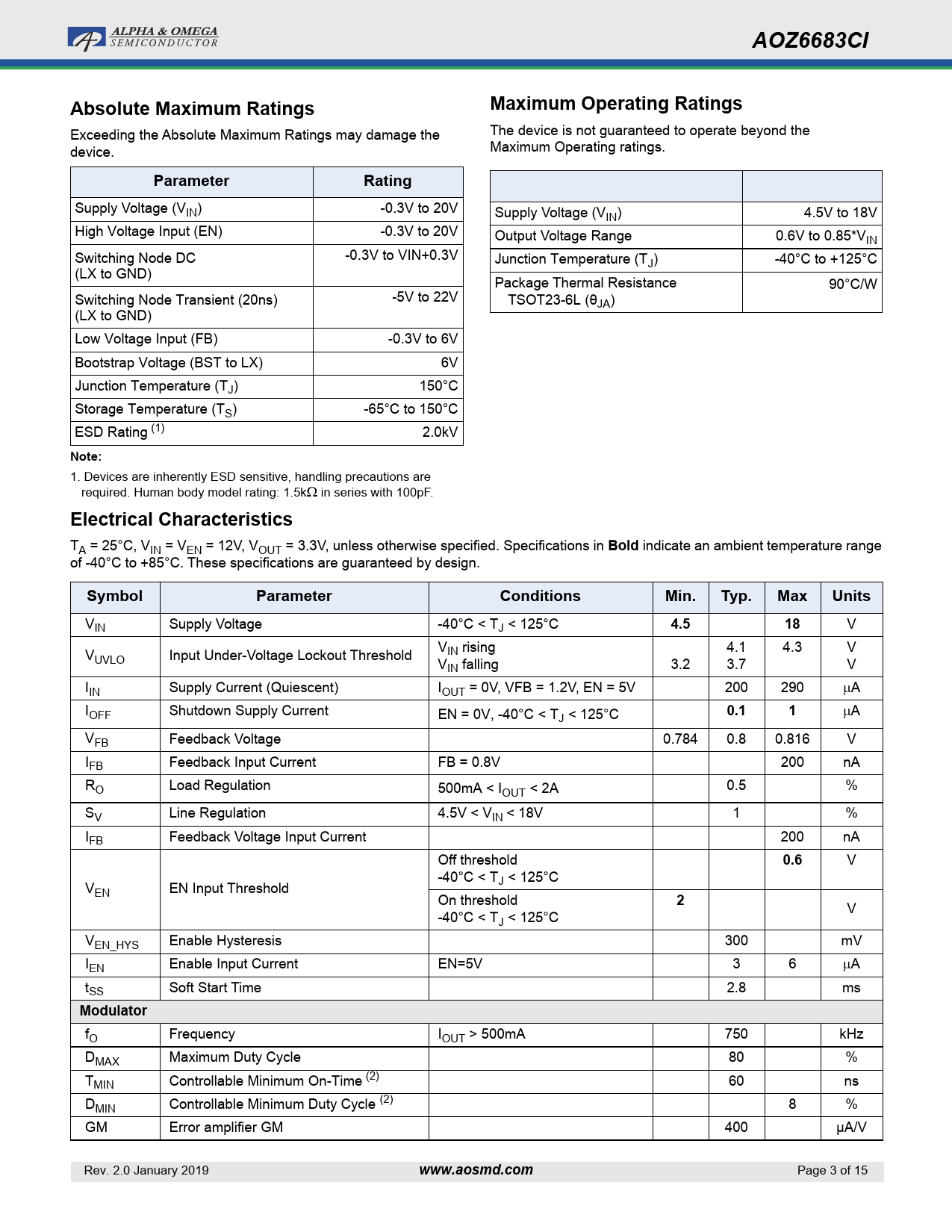

AOZ6683CIAbsolute Maximum RatingsMaximum Operating Ratings Exceeding the Absolute Maximum Ratings may damage the The device is not guaranteed to operate beyond the device. Maximum Operating ratings. ParameterRating Supply Voltage (VIN) -0.3V to 20V Supply Voltage (VIN) 4.5V to 18V High Voltage Input (EN) -0.3V to 20V Output Voltage Range 0.6V to 0.85*VIN Switching Node DC -0.3V to VIN+0.3V Junction Temperature (TJ) -40°C to +125°C (LX to GND) Package Thermal Resistance 90°C/W Switching Node Transient (20ns) -5V to 22V TSOT23-6L (θJA) (LX to GND) Low Voltage Input (FB) -0.3V to 6V Bootstrap Voltage (BST to LX) 6V Junction Temperature (TJ) 150°C Storage Temperature (TS) -65°C to 150°C ESD Rating (1) 2.0kV Note: 1. Devices are inherently ESD sensitive, handling precautions are required. Human body model rating: 1.5k in series with 100pF. Electrical Characteristics TA = 25°C, VIN = VEN = 12V, VOUT = 3.3V, unless otherwise specified. Specifications in Bold indicate an ambient temperature range of -40°C to +85°C. These specifications are guaranteed by design. SymbolParameterConditionsMin.Typ.MaxUnits VIN Supply Voltage -40°C < TJ < 125°C 4.518 V V 4.1 4.3 V V IN rising UVLO Input Under-Voltage Lockout Threshold VIN falling 3.2 3.7 V IIN Supply Current (Quiescent) IOUT = 0V, VFB = 1.2V, EN = 5V 200 290 A IOFF Shutdown Supply Current EN = 0V, -40°C < TJ < 125°C 0.11 A VFB Feedback Voltage 0.784 0.8 0.816 V IFB Feedback Input Current FB = 0.8V 200 nA RO Load Regulation 500mA < IOUT < 2A 0.5 % SV Line Regulation 4.5V < VIN < 18V 1 % IFB Feedback Voltage Input Current 200 nA Off threshold 0.6 V -40°C < T V J < 125°C EN EN Input Threshold On threshold 2 V -40°C < TJ < 125°C VEN_HYS Enable Hysteresis 300 mV IEN Enable Input Current EN=5V 3 6 A tSS Soft Start Time 2.8 ms Modulator fO Frequency IOUT > 500mA 750 kHz DMAX Maximum Duty Cycle 80 % TMIN Controllable Minimum On-Time (2) 60 ns DMIN Controllable Minimum Duty Cycle (2) 8 % GM Error amplifier GM 400 µA/V Rev. 2.0 January 2019 www.aosmd.com Page 3 of 15
