Datasheet AOZ6683CI (Alpha & Omega) - 4
| Manufacturer | Alpha & Omega |
| Description | EZBuck 3A Synchronous Buck Regulator |
| Pages / Page | 15 / 4 — AOZ6683CI. Electrical Characteristics. Bold. Symbol. Parameter. … |
| File Format / Size | PDF / 631 Kb |
| Document Language | English |

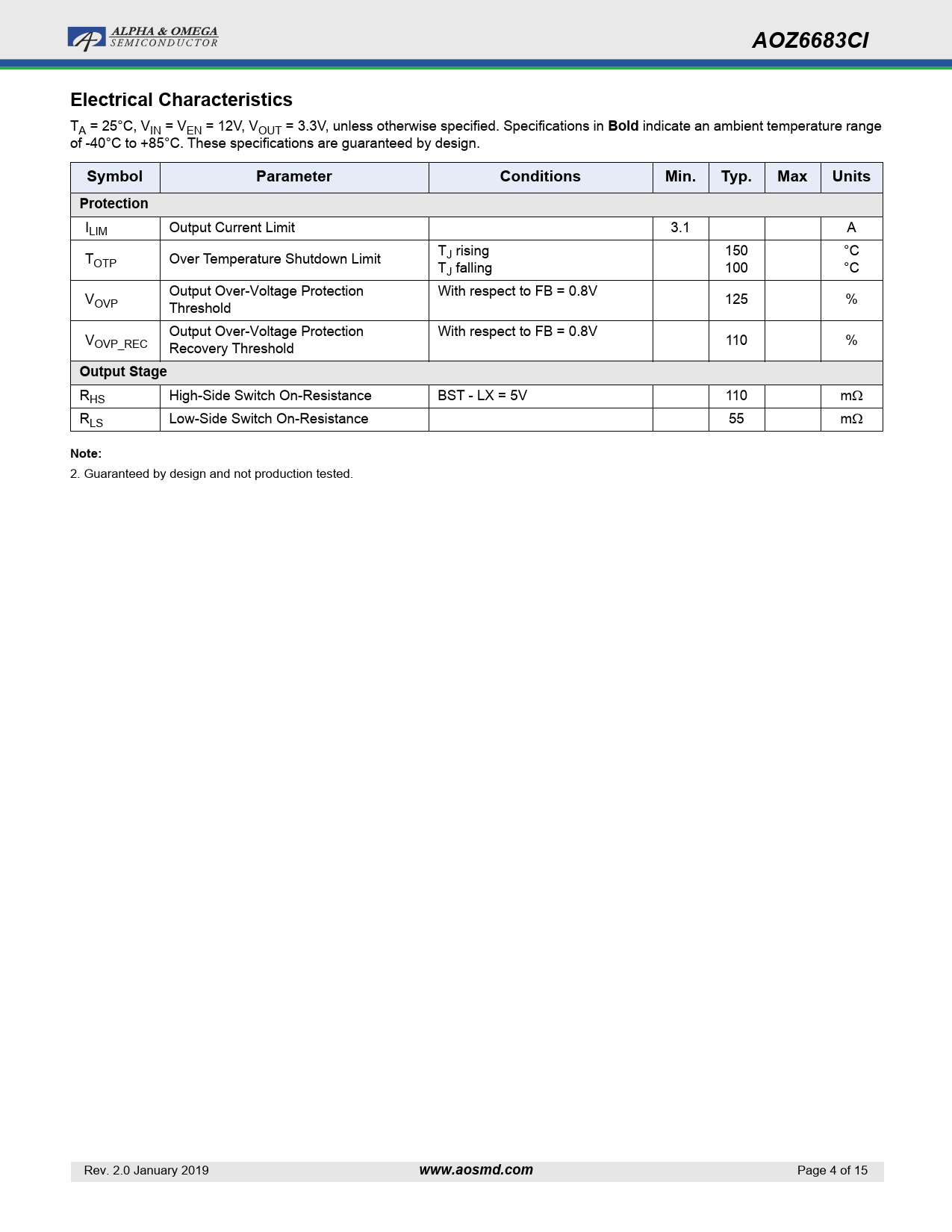

AOZ6683CI. Electrical Characteristics. Bold. Symbol. Parameter. Conditions. Min. Typ. Max. Units. Protection. Output Stage. Note:. www.aosmd.com
Model Line for this Datasheet
Text Version of Document
AOZ6683CI Electrical Characteristics
TA = 25°C, VIN = VEN = 12V, VOUT = 3.3V, unless otherwise specified. Specifications in
Bold
indicate an ambient temperature range of -40°C to +85°C. These specifications are guaranteed by design.
Symbol Parameter Conditions Min. Typ. Max Units Protection
ILIM Output Current Limit 3.1 A T 150 °C T J rising OTP Over Temperature Shutdown Limit TJ falling 100 °C Output Over-Voltage Protection With respect to FB = 0.8V VOVP 125 % Threshold Output Over-Voltage Protection With respect to FB = 0.8V VOVP_REC 110 % Recovery Threshold
Output Stage
RHS High-Side Switch On-Resistance BST - LX = 5V 110 m RLS Low-Side Switch On-Resistance 55 m
