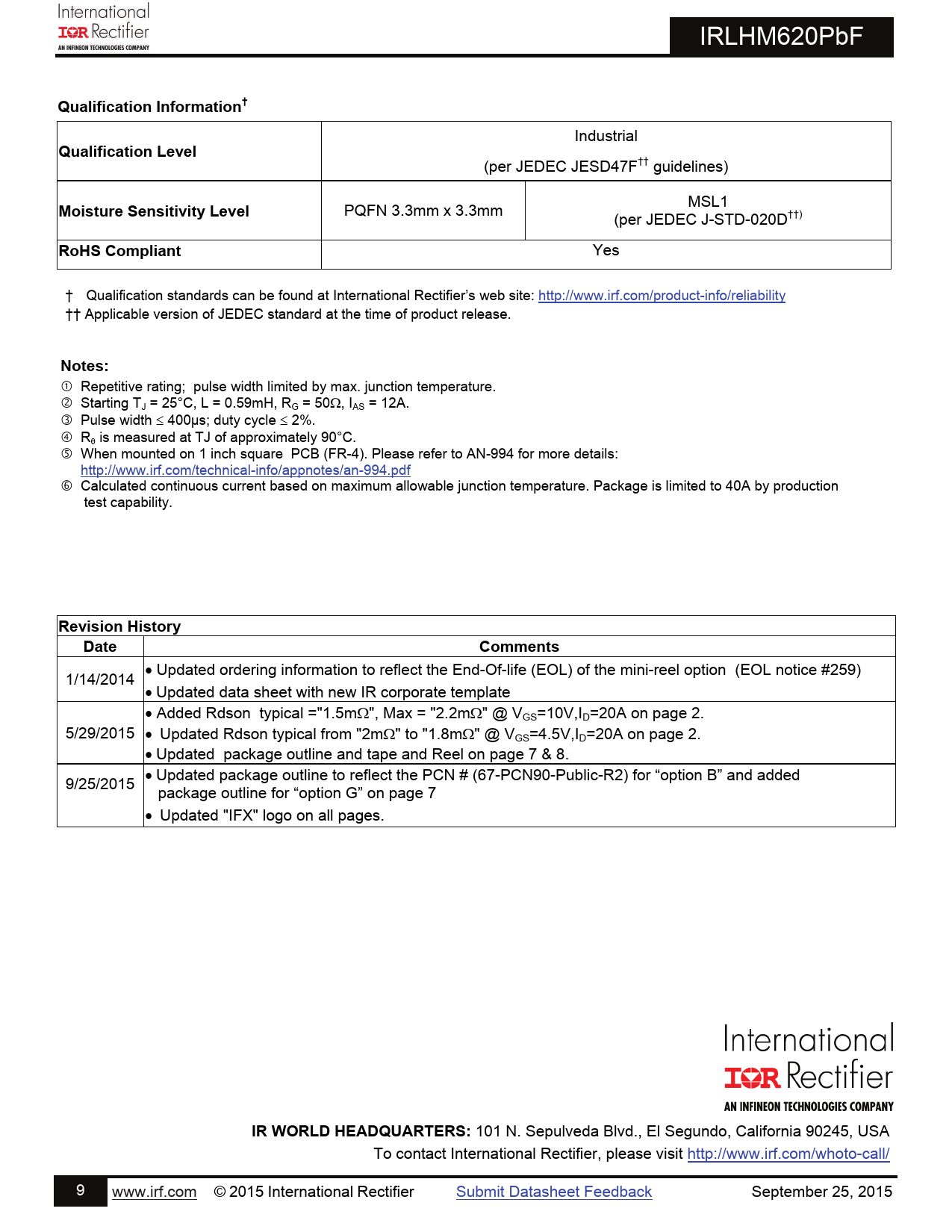

IRLHM620PbF
Qualification Information†
Industrial
Qualification Level
(per JEDEC JESD47F†† guidelines) MSL1
Moisture Sensitivity Level
PQFN 3.3mm x 3.3mm (per JEDEC J-STD-020D††)
RoHS Compliant
Yes † Qualification standards can be found at International Rectifier’s web site: http://www.irf.com/product-info/reliability †† Applicable version of JEDEC standard at the time of product release.
Notes:
Repetitive rating; pulse width limited by max. junction temperature. Starting TJ = 25°C, L = 0.59mH, RG = 50, IAS = 12A. Pulse width 400µs; duty cycle 2%. R is measured at TJ of approximately 90°C. When mounted on 1 inch square PCB (FR-4). Please refer to AN-994 for more details: http://www.irf.com/technical-info/appnotes/an-994.pdf Calculated continuous current based on maximum allowable junction temperature. Package is limited to 40A by production test capability.
Revision History Date Comments
Updated ordering information to reflect the End-Of-life (EOL) of the mini-reel option (EOL notice #259) 1/14/2014 Updated data sheet with new IR corporate template Added Rdson typical ="1.5m", Max = "2.2m" @ VGS=10V,ID=20A on page 2. 5/29/2015 Updated Rdson typical from "2m" to "1.8m" @ VGS=4.5V,ID=20A on page 2. Updated package outline and tape and Reel on page 7 & 8. 9/25/2015 Updated package outline to reflect the PCN # (67-PCN90-Public-R2) for “option B” and added package outline for “option G” on page 7 Updated "IFX" logo on all pages.
