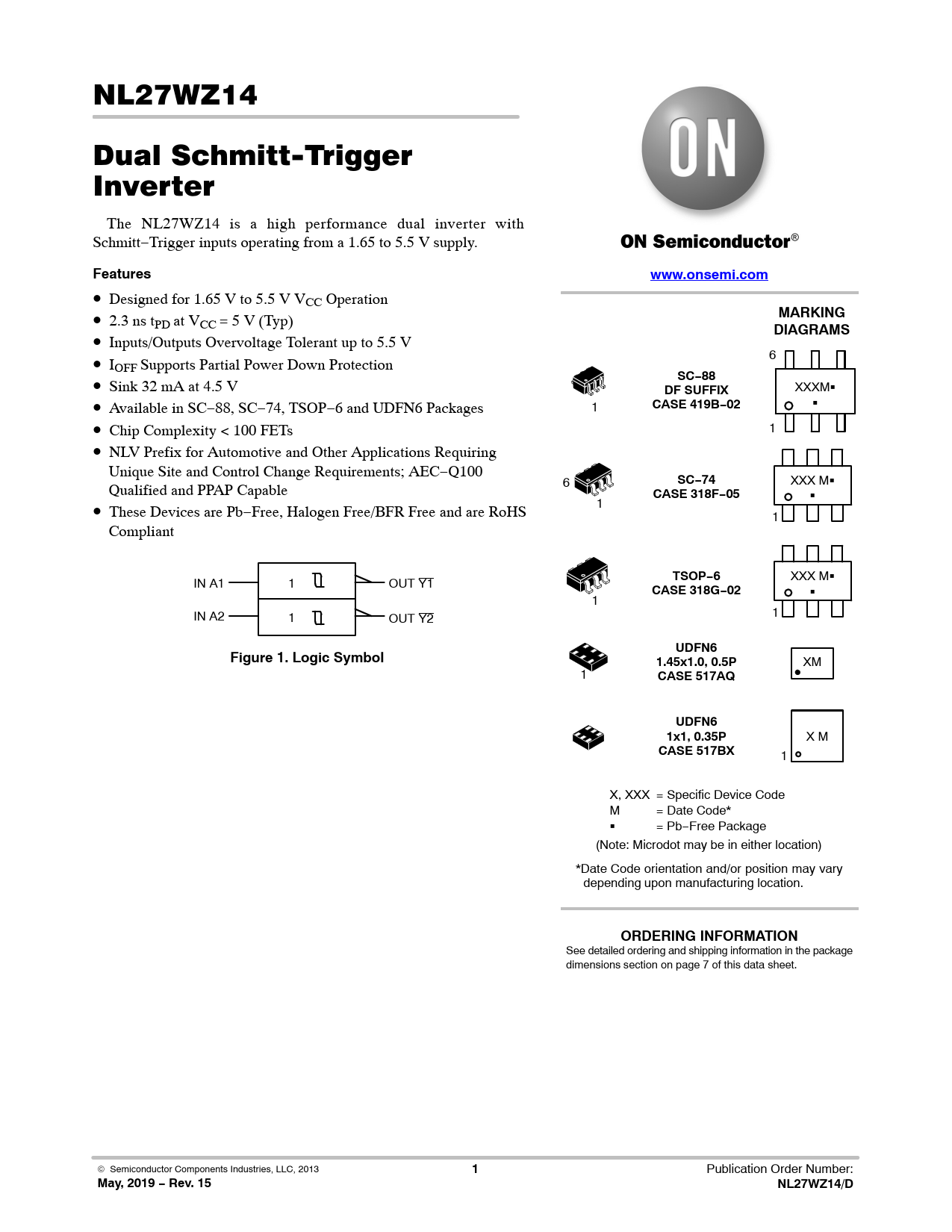

Features. www.onsemi.com. MARKING. DIAGRAMS. SC−88. DF SUFFIX. CASE 419B−02. SC−74. CASE 318F−05. TSOP−6. CASE 318G−02. UDFN6
Model Line for this Datasheet
Text Version of Document
link to page 7 NL27WZ14 Dual Schmitt-Trigger Inverter The NL27WZ14 is a high performance dual inverter with Schmitt−Trigger inputs operating from a 1.65 to 5.5 V supply.
Features www.onsemi.com
• Designed for 1.65 V to 5.5 V VCC Operation • 2.3 ns t
MARKING
PD at VCC = 5 V (Typ) •
DIAGRAMS
Inputs/Outputs Overvoltage Tolerant up to 5.5 V • 6 IOFF Supports Partial Power Down Protection •
SC−88
Sink 32 mA at 4.5 V
DF SUFFIX
XXXMG • Available in SC−88, SC−74, TSOP−6 and UDFN6 Packages 1
CASE 419B−02
G • Chip Complexity < 100 FETs 1 • NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100
SC−74
6 XXX MG Qualified and PPAP Capable
CASE 318F−05
G • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS 1 1 Compliant
TSOP−6
XXX M IN A1 1 OUT Y1 G
CASE 318G−02
G 1 IN A2 1 OUT Y2 1
UDFN6 Figure 1. Logic Symbol 1.45x1.0, 0.5P
XM 1
CASE 517AQ UDFN6 1x1, 0.35P
X M
CASE 517BX
1 X, XXX = Specific Device Code M = Date Code* G = Pb−Free Package (Note: Microdot may be in either location) *Date Code orientation and/or position may vary depending upon manufacturing location.
ORDERING INFORMATION
See detailed ordering and shipping information in the package dimensions section on page 7 of this data sheet. © Semiconductor Components Industries, LLC, 2013
1
Publication Order Number:
May, 2019 − Rev. 15 NL27WZ14/D
