Datasheet NL27WZ14 (ON Semiconductor) - 2
| Manufacturer | ON Semiconductor |
| Description | Dual Inverter with Schmitt Trigger Input |
| Pages / Page | 12 / 2 — NL27WZ14. (SC−88/SC−74/TSOP−6). UDFN6. Figure 2. Pinout. PIN ASSIGNMENT. … |
| Revision | 15 |
| File Format / Size | PDF / 190 Kb |
| Document Language | English |
NL27WZ14. (SC−88/SC−74/TSOP−6). UDFN6. Figure 2. Pinout. PIN ASSIGNMENT. FUNCTION TABLE. Pin. Function. A Input. Y Output. www.onsemi.com
Model Line for this Datasheet
Text Version of Document
NL27WZ14
A1 1 6 Y1 IN A1 1 6 OUT Y1 GND 2 5 VCC GND 2 5 VCC IN A2 3 4 OUT Y2 A2 3 4 Y2

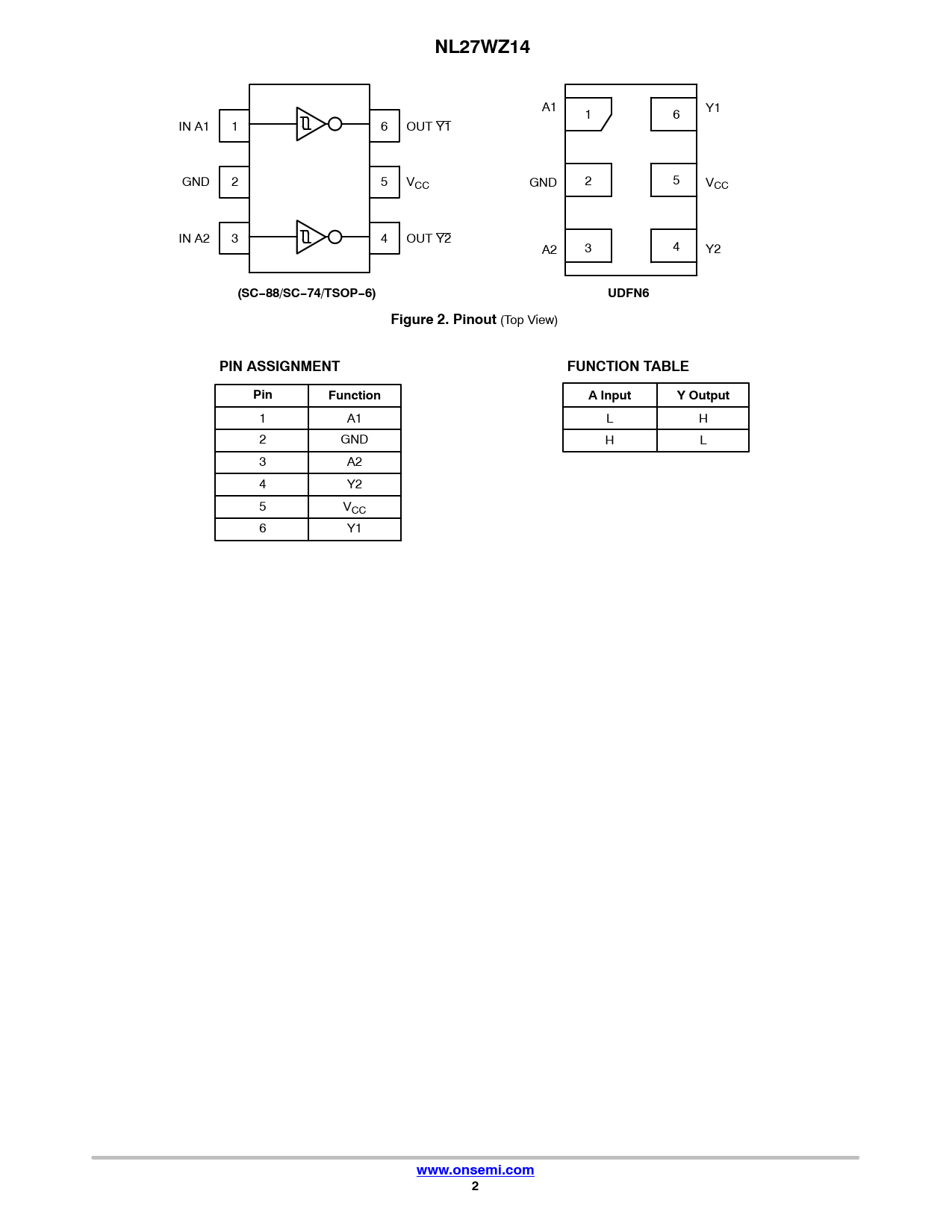

(SC−88/SC−74/TSOP−6) UDFN6 Figure 2. Pinout
(Top View)
PIN ASSIGNMENT FUNCTION TABLE Pin Function A Input Y Output
1 A1 L H 2 GND H L 3 A2 4 Y2 5 VCC 6 Y1
www.onsemi.com 2
A1 1 6 Y1 IN A1 1 6 OUT Y1 GND 2 5 VCC GND 2 5 VCC IN A2 3 4 OUT Y2 A2 3 4 Y2
(SC−88/SC−74/TSOP−6) UDFN6 Figure 2. Pinout
(Top View)
PIN ASSIGNMENT FUNCTION TABLE Pin Function A Input Y Output
1 A1 L H 2 GND H L 3 A2 4 Y2 5 VCC 6 Y1
www.onsemi.com 2
