BLOCK DIAGRAM
Model Line for this Datasheet
- LT8330EDDB#TRMPBF LT8330EDDB#TRPBF LT8330EDDB#WTRMPBF LT8330EDDB#WTRPBF LT8330ES6#TRMPBF LT8330ES6#TRPBF LT8330HDDB#TRMPBF LT8330HDDB#TRPBF LT8330HDDB#WTRMPBF LT8330HDDB#WTRPBF LT8330HS6#TRMPBF LT8330HS6#TRPBF LT8330IDDB#TRMPBF LT8330IDDB#TRPBF LT8330IDDB#WTRMPBF LT8330IDDB#WTRPBF LT8330IS6#TRMPBF LT8330IS6#TRPBF
Text Version of Document
LT8330

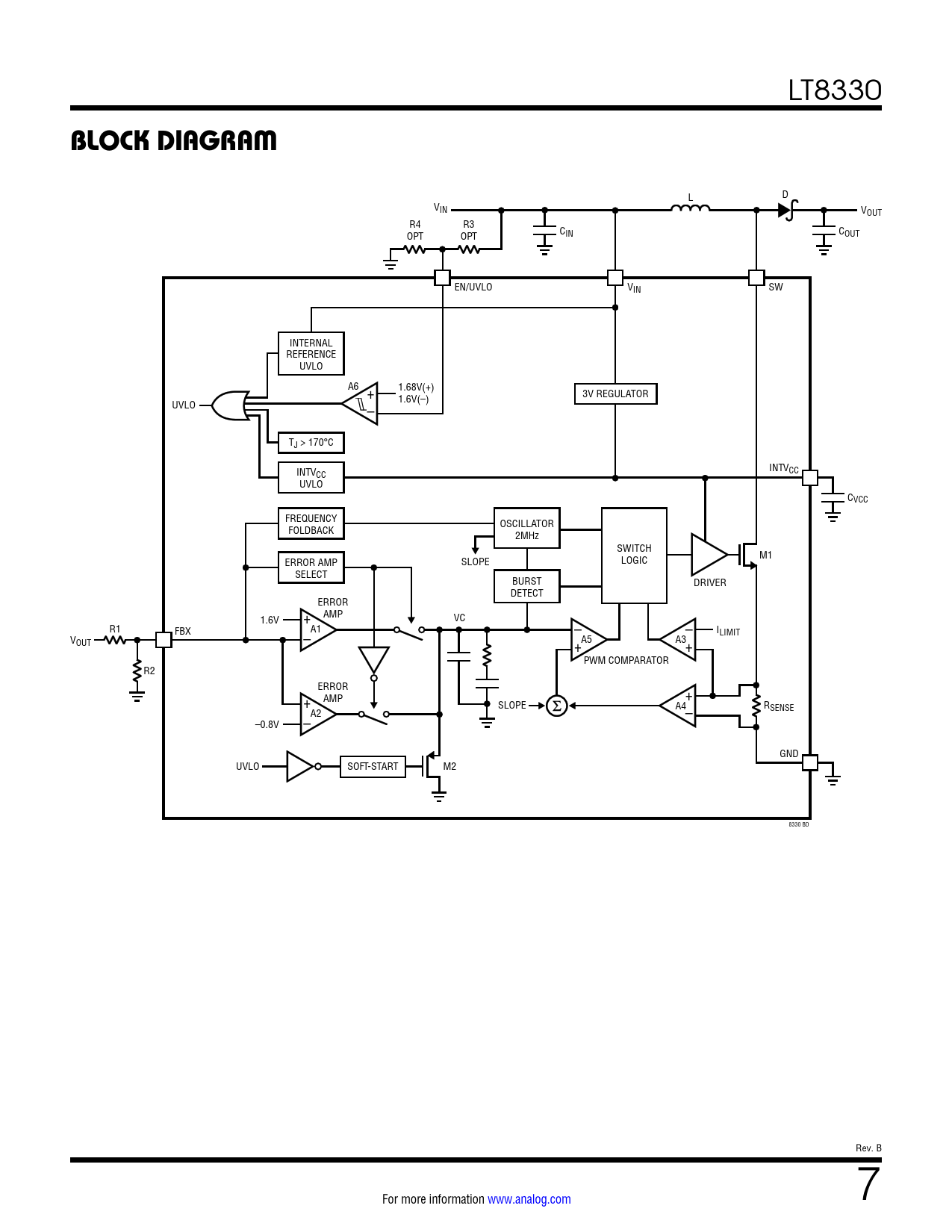

BLOCK DIAGRAM
