Datasheet LTM8063 (Analog Devices) - 9
| Manufacturer | Analog Devices |
| Description | 40VIN, 2A Silent Switcher µModule Regulator |
| Pages / Page | 24 / 9 — TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. … |
| Revision | C |
| File Format / Size | PDF / 2.6 Mb |
| Document Language | English |

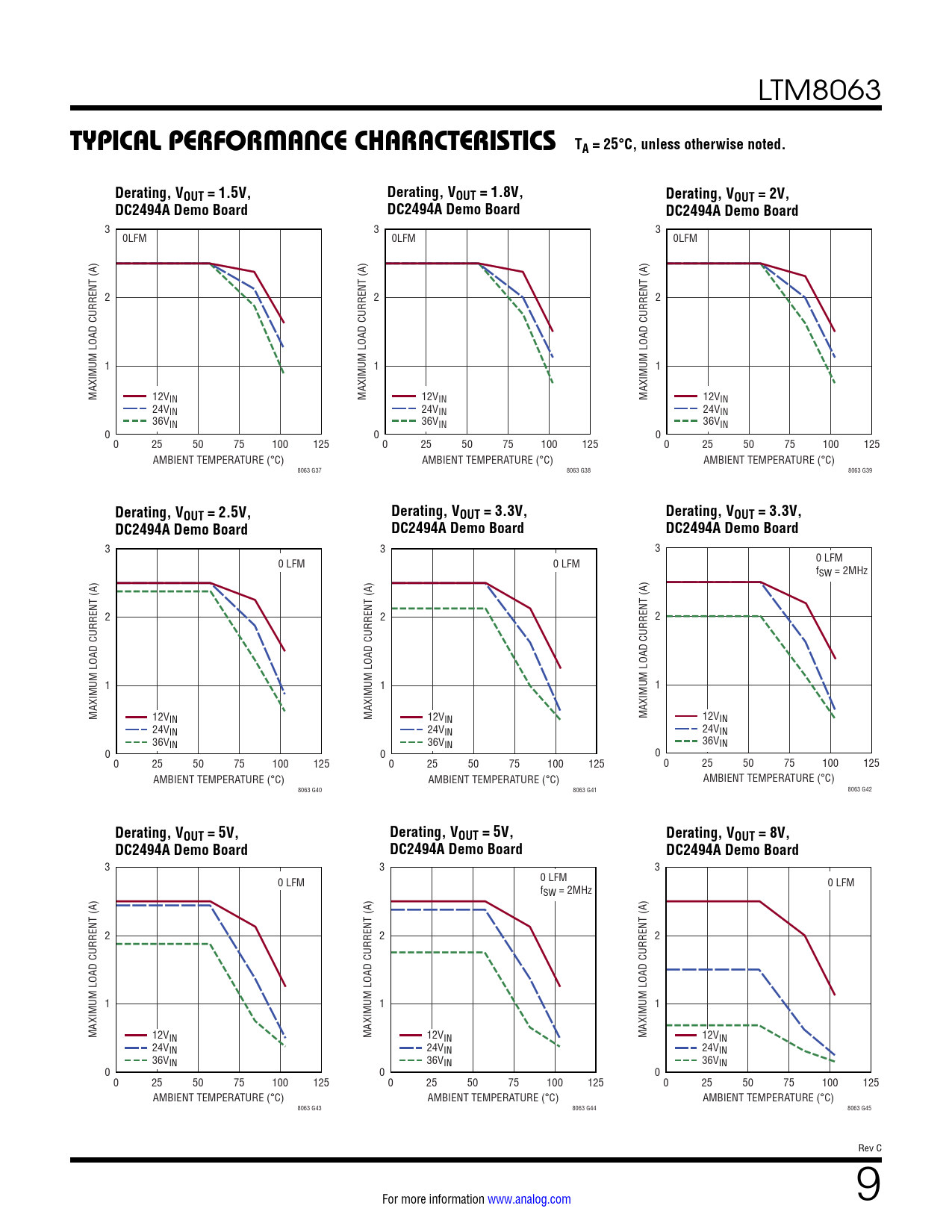

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Derating, VOUT = 1.5V,. Derating, VOUT = 1.8V,
Model Line for this Datasheet
Text Version of Document
LTM8063
TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Derating, VOUT = 1.5V, Derating, VOUT = 1.8V, Derating, VOUT = 2V, DC2494A Demo Board DC2494A Demo Board DC2494A Demo Board
3 3 3 0LFM 0LFM 0LFM 2 2 2 1 1 1 MAXIMUM LOAD CURRENT (A) 12VIN MAXIMUM LOAD CURRENT (A) 12VIN MAXIMUM LOAD CURRENT (A) 12VIN 24VIN 24VIN 24VIN 36VIN 36VIN 36VIN 0 0 0 0 25 50 75 100 125 0 25 50 75 100 125 0 25 50 75 100 125 AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) 8063 G37 8063 G38 8063 G39
Derating, VOUT = 2.5V, Derating, VOUT = 3.3V, Derating, VOUT = 3.3V, DC2494A Demo Board DC2494A Demo Board DC2494A Demo Board
3 3 3 0 LFM 0 LFM 0 LFM fSW = 2MHz 2 2 2 1 1 1 MAXIMUM LOAD CURRENT (A) 12VIN MAXIMUM LOAD CURRENT (A) 12VIN MAXIMUM LOAD CURRENT (A) 12VIN 24VIN 24VIN 24VIN 36VIN 36VIN 36VIN 0 0 0 0 25 50 75 100 125 0 25 50 75 100 125 0 25 50 75 100 125 AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) 8063 G40 8063 G41 8063 G42
Derating, VOUT = 5V, Derating, VOUT = 5V, Derating, VOUT = 8V, DC2494A Demo Board DC2494A Demo Board DC2494A Demo Board
3 3 3 0 LFM 0 LFM 0 LFM fSW = 2MHz 2 2 2 1 1 1 MAXIMUM LOAD CURRENT (A) 12VIN MAXIMUM LOAD CURRENT (A) 12VIN MAXIMUM LOAD CURRENT (A) 12VIN 24VIN 24VIN 24VIN 36VIN 36VIN 36VIN 0 0 0 0 25 50 75 100 125 0 25 50 75 100 125 0 25 50 75 100 125 AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) AMBIENT TEMPERATURE (°C) 8063 G43 8063 G44 8063 G45 Rev C For more information www.analog.com 9 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Photo Package Description Revision History Typical Application Related Parts
