Datasheet B320, B330, B340, B350, B360 (Diodes)
| Manufacturer | Diodes |
| Description | 3.0A Surface Mount Schottky Barrier Rectifier |
| Pages / Page | 5 / 1 — B320 - B360. 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER. Product … |
| File Format / Size | PDF / 344 Kb |
| Document Language | English |
B320 - B360. 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER. Product Summary. Features and Benefits. VRRM (V). IO (A). VF max. (V)
Model Line for this Datasheet
Text Version of Document

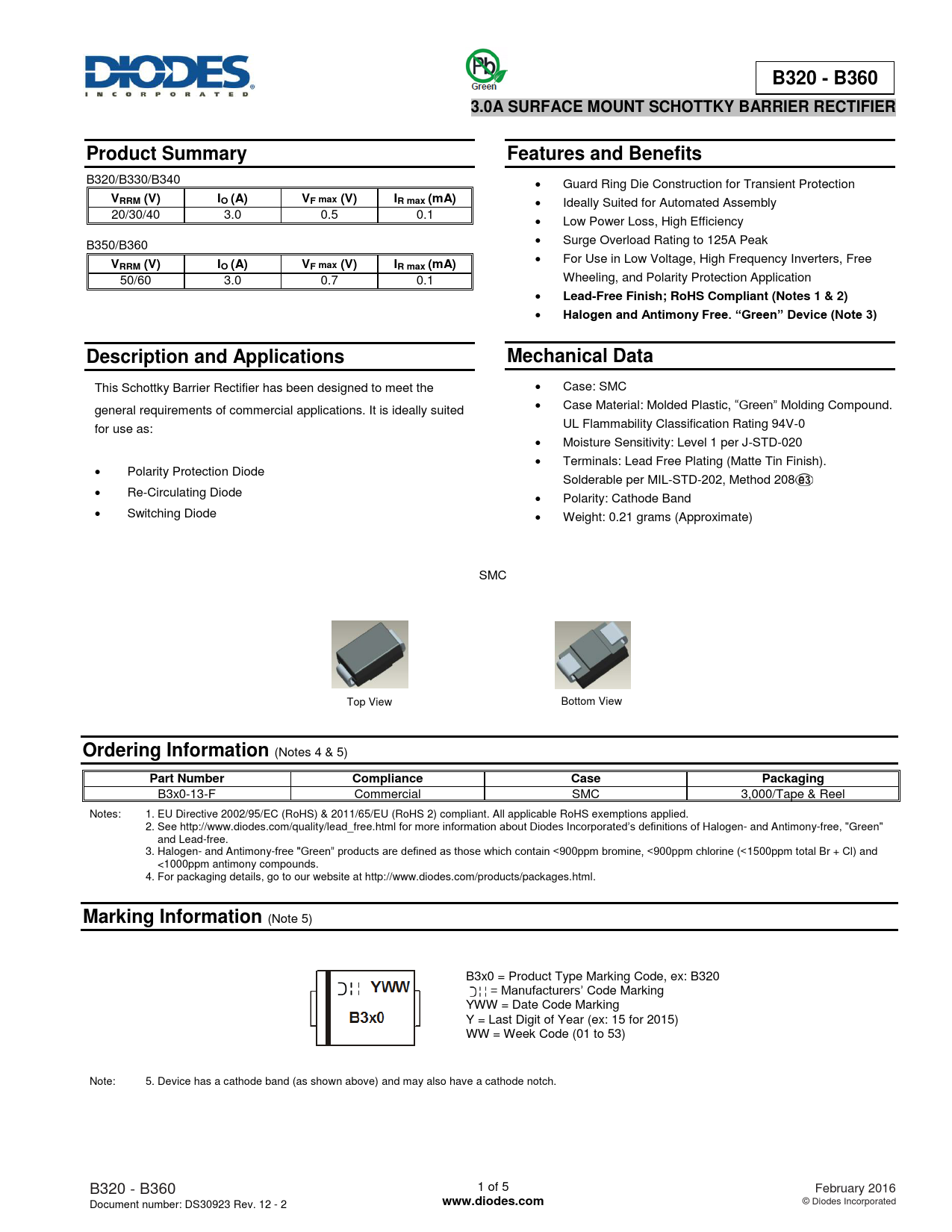

B320 - B360 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Product Summary Features and Benefits
B320/B330/B340 Guard Ring Die Construction for Transient Protection
VRRM (V) IO (A) VF max (V) IR max (mA)
Ideally Suited for Automated Assembly 20/30/40 3.0 0.5 0.1 Low Power Loss, High Efficiency B350/B360 Surge Overload Rating to 125A Peak
V
For Use in Low Voltage, High Frequency Inverters, Free
RRM (V) IO (A) VF max (V) IR max (mA)
50/60 3.0 0.7 0.1 Wheeling, and Polarity Protection Application
Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Description and Applications Mechanical Data
This Schottky Barrier Rectifier has been designed to meet the Case: SMC general requirements of commercial applications. It is ideally suited Case Material: Molded Plastic, “Green” Molding Compound. for use as: UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Lead Free Plating (Matte Tin Finish). Polarity Protection Diode Solderable per MIL-STD-202, Method 208 Re-Circulating Diode Polarity: Cathode Band Switching Diode Weight: 0.21 grams (Approximate) SMC Top View Bottom View
Ordering Information
(Notes 4 & 5)
Part Number Compliance Case Packaging
B3x0-13-F Commercial SMC 3,000/Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
(Note 5) B3x0 = Product Type Marking Code, ex: B320 = Manufacturers’ Code Marking YWW = Date Code Marking Y = Last Digit of Year (ex: 15 for 2015) WW = Week Code (01 to 53) Note: 5. Device has a cathode band (as shown above) and may also have a cathode notch. B320 - B360 1 of 5 February 2016 Document number: DS30923 Rev. 12 - 2
www.diodes.com
© Diodes Incorporated
