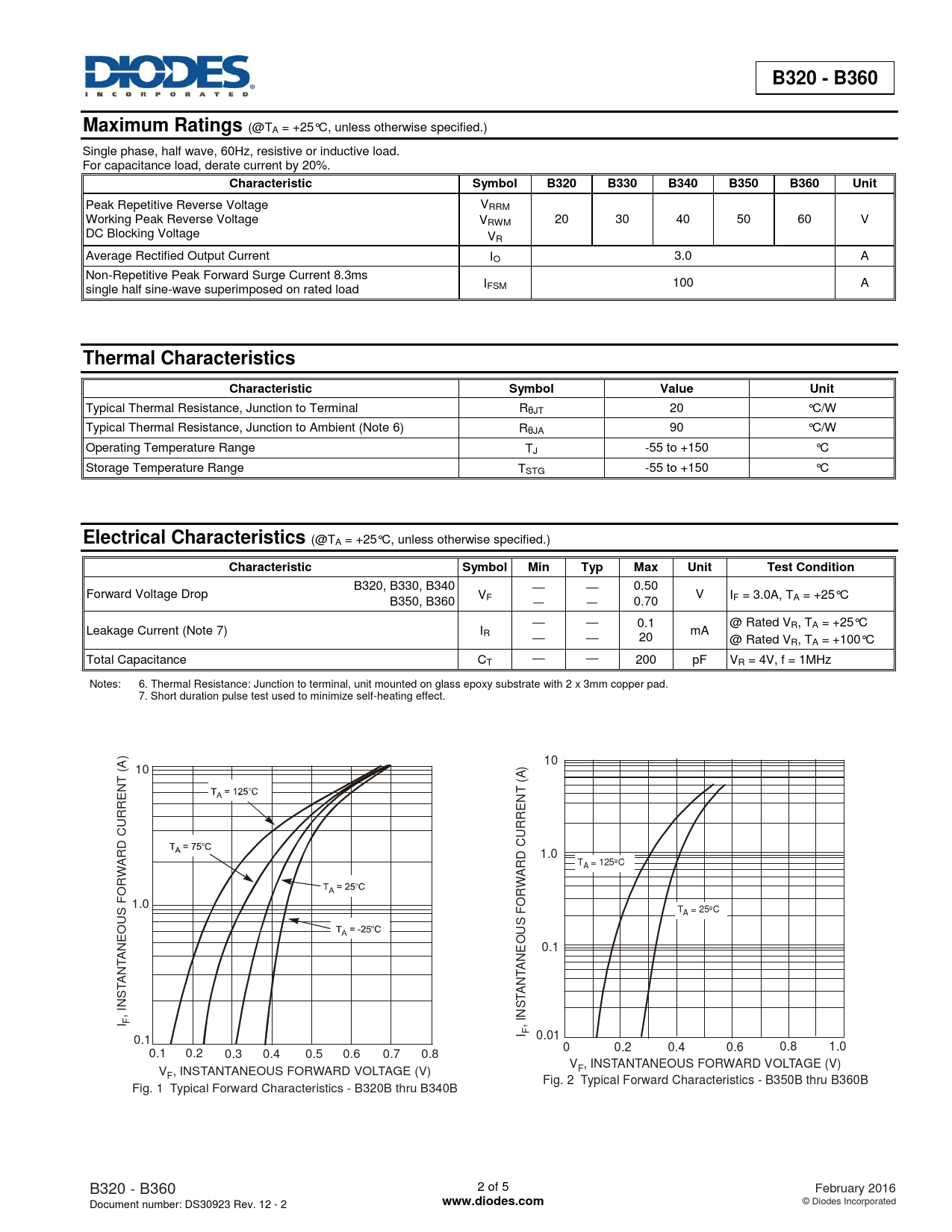

B320 - B360 Maximum Ratings
(@TA = +25°C, unless otherwise specified.) Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%.
Characteristic Symbol B320 B330 B340 B350 B360 Unit
Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 20 30 40 50 60 V DC Blocking Voltage VR Average Rectified Output Current IO 3.0 A Non-Repetitive Peak Forward Surge Current 8.3ms I single half sine-wave superimposed on rated load FSM 100 A
Thermal Characteristics Characteristic Symbol Value Unit
Typical Thermal Resistance, Junction to Terminal RθJT 20 °C/W Typical Thermal Resistance, Junction to Ambient (Note 6) RθJA 90 °C/W Operating Temperature Range TJ -55 to +150 °C Storage Temperature Range TSTG -55 to +150 °C
Electrical Characteristics
(@TA = +25°C, unless otherwise specified.)
Characteristic Symbol Min Typ Max Unit Test Condition
B320, B330, B340 — — 0.50 Forward Voltage Drop V V I B350, B360 F — — 0.70 F = 3.0A, TA = +25°C — — 0.1 @ Rated VR, TA = +25°C Leakage Current (Note 7) IR — mA — 20 @ Rated VR, TA = +100°C Total Capacitance CT — — 200 pF VR = 4V, f = 1MHz Notes: 6. Thermal Resistance: Junction to terminal, unit mounted on glass epoxy substrate with 2 x 3mm copper pad. 7. Short duration pulse test used to minimize self-heating effect. ) A 10 ( 10 ) T A( N T E N R E R R U R C U D C R D 1.0 A R T = 125ºC A W A R W O R F 1.0 O S F T = 25ºC A U S O U E O N E 0.1 A T N N A T A T N S A T NI S , N I F I , I F 0.1 0.01 0 0.2 0.4 0.6 0.8 1.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 V , INSTANTANEOUS FORWARD VOLTAGE (V) V , INSTANTANEOUS FORWARD VOLTAGE (V) F F Fig. 2 Typical Forward Characteristics - B350B thru B360B Fig. 1 Typical Forward Characteristics - B320B thru B340B B320 - B360 2 of 5 February 2016 Document number: DS30923 Rev. 12 - 2
