EFR32MG22 Wireless Gecko SoC Family Data Sheet Ordering Information

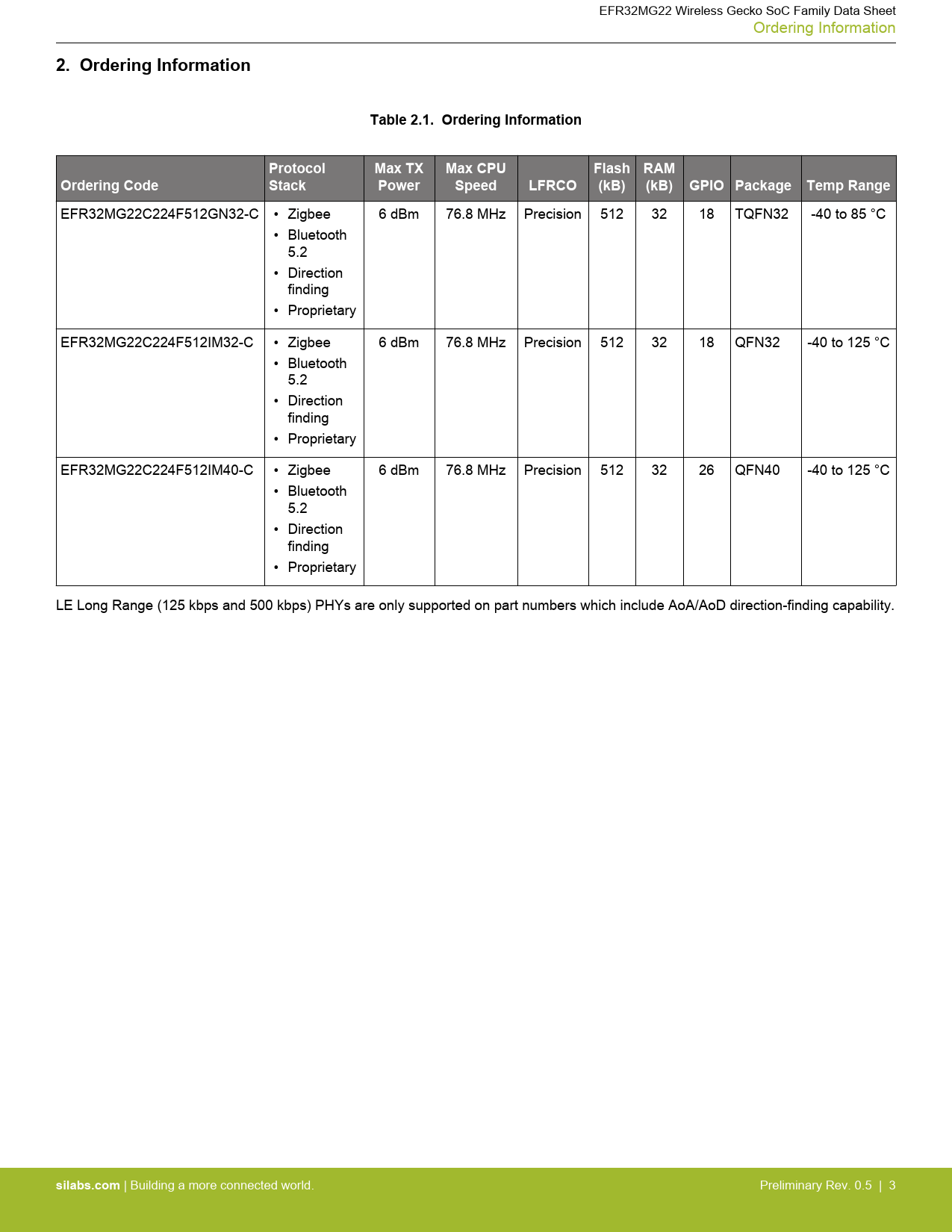

2. Ordering Information Table 2.1. Ordering Information Protocol Max TX Max CPU Flash RAM Ordering Code Stack Power Speed LFRCO (kB) (kB) GPIO Package Temp Range
EFR32MG22C224F512GN32-C • Zigbee 6 dBm 76.8 MHz Precision 512 32 18 TQFN32 -40 to 85 °C • Bluetooth 5.2 • Direction finding • Proprietary EFR32MG22C224F512IM32-C • Zigbee 6 dBm 76.8 MHz Precision 512 32 18 QFN32 -40 to 125 °C • Bluetooth 5.2 • Direction finding • Proprietary EFR32MG22C224F512IM40-C • Zigbee 6 dBm 76.8 MHz Precision 512 32 26 QFN40 -40 to 125 °C • Bluetooth 5.2 • Direction finding • Proprietary LE Long Range (125 kbps and 500 kbps) PHYs are only supported on part numbers which include AoA/AoD direction-finding capability.
