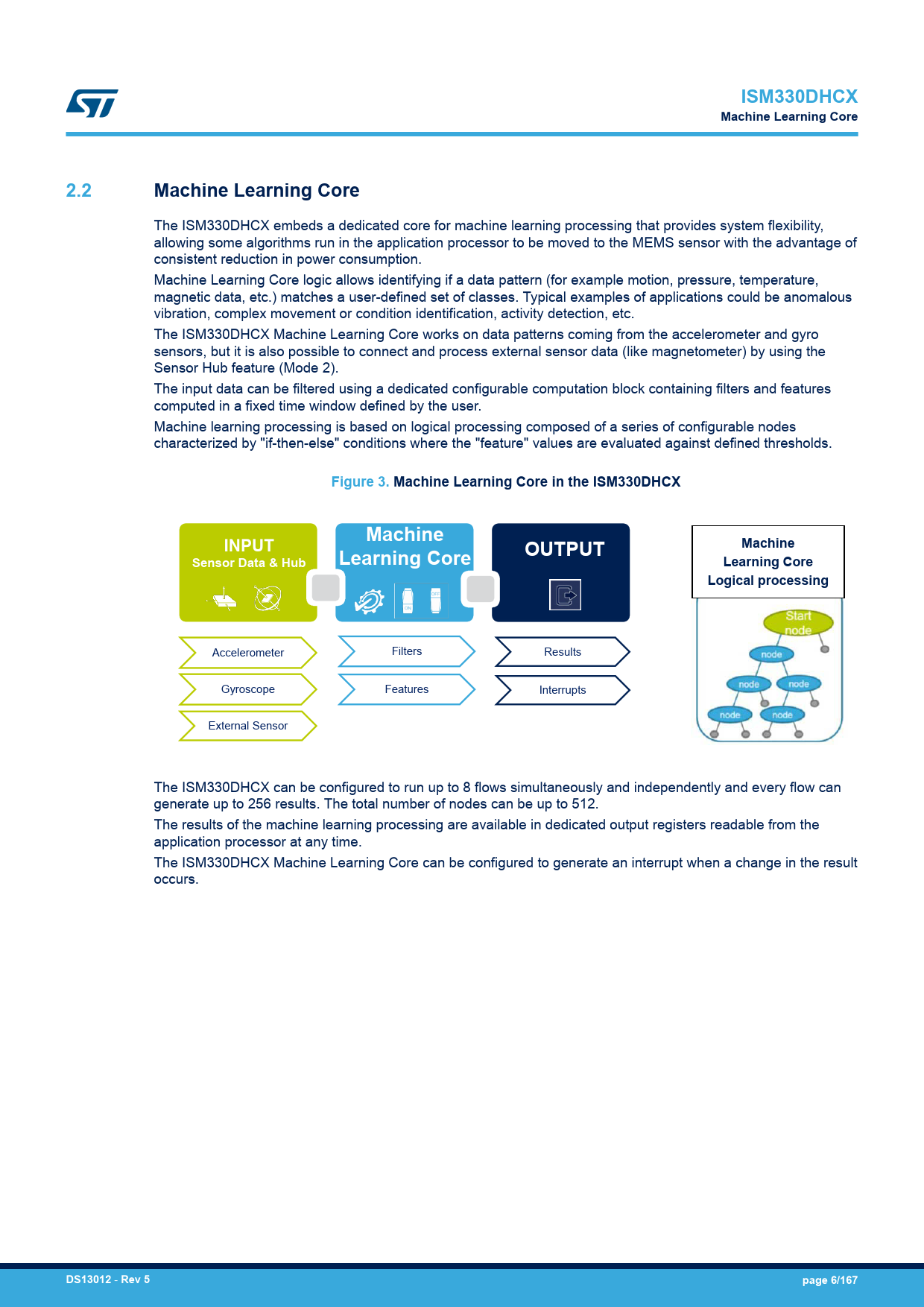

ISM330DHCX. Machine Learning Core. 2.2. Figure 3. Machine Learning Core in the ISM330DHCX. Machine. INPUT. Sensor Data & Hub
Model Line for this Datasheet
Text Version of Document
ISM330DHCX Machine Learning Core 2.2 Machine Learning Core
The ISM330DHCX embeds a dedicated core for machine learning processing that provides system flexibility, allowing some algorithms run in the application processor to be moved to the MEMS sensor with the advantage of consistent reduction in power consumption. Machine Learning Core logic allows identifying if a data pattern (for example motion, pressure, temperature, magnetic data, etc.) matches a user-defined set of classes. Typical examples of applications could be anomalous vibration, complex movement or condition identification, activity detection, etc. The ISM330DHCX Machine Learning Core works on data patterns coming from the accelerometer and gyro sensors, but it is also possible to connect and process external sensor data (like magnetometer) by using the Sensor Hub feature (Mode 2). The input data can be filtered using a dedicated configurable computation block containing filters and features computed in a fixed time window defined by the user. Machine learning processing is based on logical processing composed of a series of configurable nodes characterized by "if-then-else" conditions where the "feature" values are evaluated against defined thresholds.
Figure 3. Machine Learning Core in the ISM330DHCX Machine INPUT Machine Sensor Data & Hub Learning Core OUTPUT Learning Core Logical processing
Accelerometer Filters Results Gyroscope Features Interrupts External Sensor The ISM330DHCX can be configured to run up to 8 flows simultaneously and independently and every flow can generate up to 256 results. The total number of nodes can be up to 512. The results of the machine learning processing are available in dedicated output registers readable from the application processor at any time. The ISM330DHCX Machine Learning Core can be configured to generate an interrupt when a change in the result occurs.
DS13012
-
Rev 5 page 6/167
