ISM330DHCX. Finite State Machine. 2.1. Definition of Finite State Machine. Figure 1. Generic state machine
Model Line for this Datasheet
Text Version of Document
link to page 5
ISM330DHCX Finite State Machine 2.1 Finite State Machine
The ISM330DHCX can be configured to generate interrupt signals activated by user-defined motion patterns. To do this, up to 16 embedded finite state machines can be programmed independently for motion detection and decoding.
Definition of Finite State Machine
A state machine is a mathematical abstraction used to design logic connections. It is a behavioral model composed of a finite number of states and transitions between states, similar to a flow chart in which one can inspect the way logic runs when certain conditions are met. The state machine begins with a start state, goes to different states through transitions dependent on the inputs, and can finally end in a specific state (called stop state). The current state is determined by the past states of the system. The following figure shows a generic state machine.

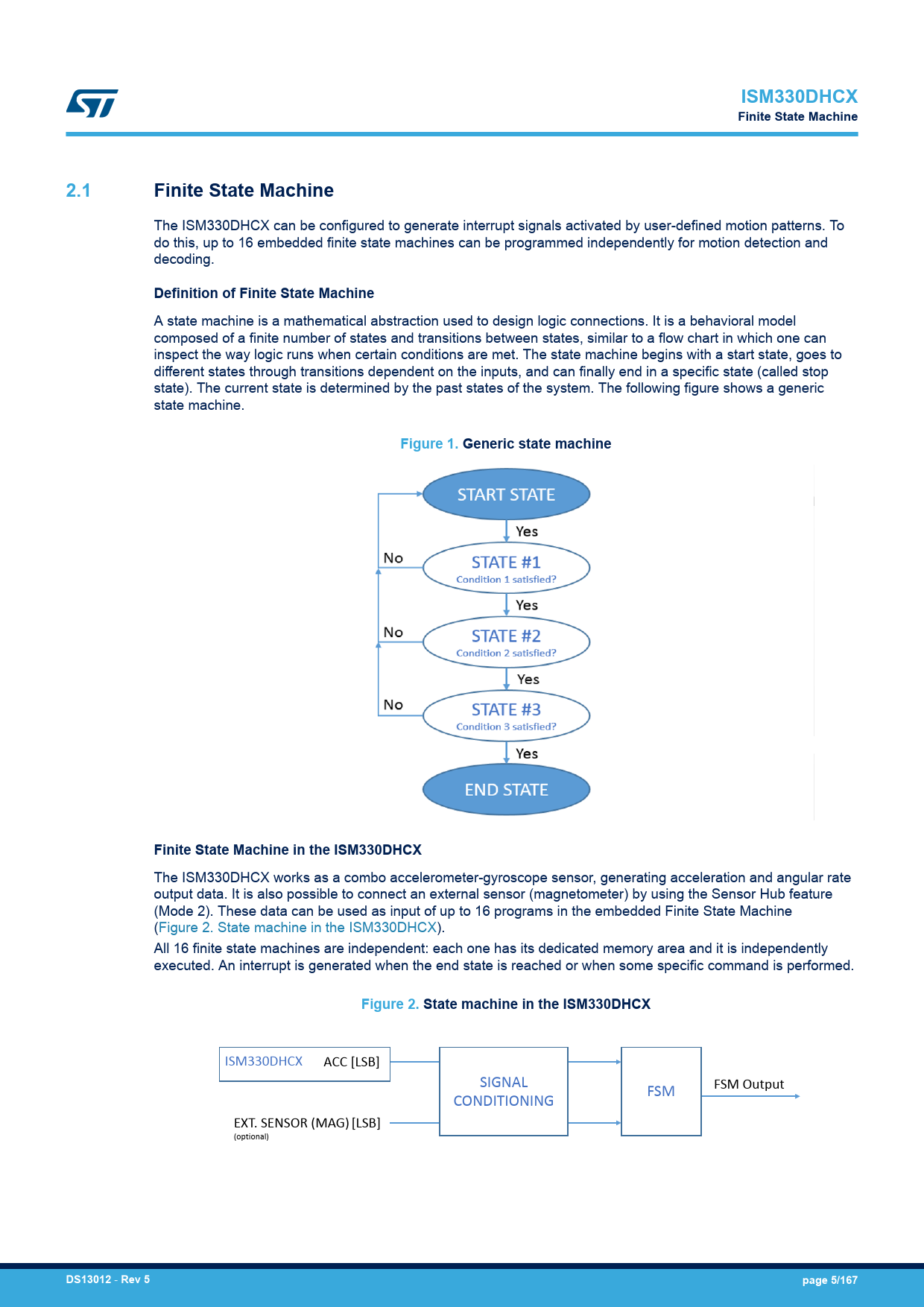

Figure 1. Generic state machine Finite State Machine in the ISM330DHCX
The ISM330DHCX works as a combo accelerometer-gyroscope sensor, generating acceleration and angular rate output data. It is also possible to connect an external sensor (magnetometer) by using the Sensor Hub feature (Mode 2). These data can be used as input of up to 16 programs in the embedded Finite State Machine (Figure 2. State machine in the ISM330DHCX). All 16 finite state machines are independent: each one has its dedicated memory area and it is independently executed. An interrupt is generated when the end state is reached or when some specific command is performed.
Figure 2. State machine in the ISM330DHCX
ISM330DHCX ACC [LSB] SIGNAL CONDITIONING FSM FSM Output EXT. SENSOR (MAG) [LSB] (optional)
DS13012
-
Rev 5 page 5/167
