Datasheet ADA4084-1, ADA4084-2, ADA4084-4 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | 30 V, Low Noise, Rail-to-Rail Input/Output, Low Power Operational Single Amplifier |
| Pages / Page | 36 / 8 — ADA4084-1/ADA4084-2/ADA4084-4. Data Sheet. PIN CONFIGURATIONS AND … |
| Revision | I |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |
ADA4084-1/ADA4084-2/ADA4084-4. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. NIC. –IN. ADA4084-1 7 V+. +IN. TOP VIEW. OUT
Model Line for this Datasheet
Text Version of Document

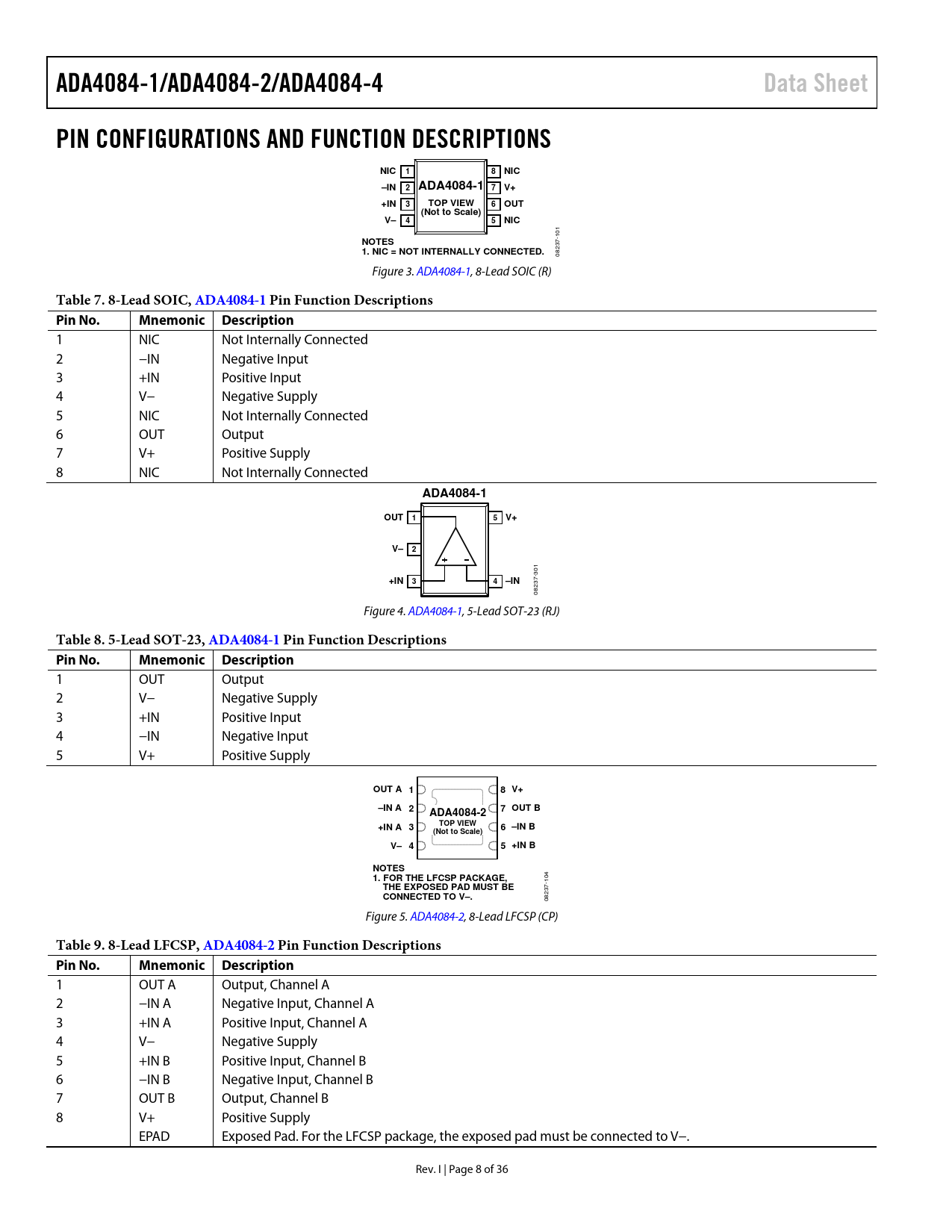

ADA4084-1/ADA4084-2/ADA4084-4 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS NIC 1 8 NIC –IN 2 ADA4084-1 7 V+ +IN 3 TOP VIEW 6 OUT (Not to Scale) V– 4 5 NIC
101
NOTES 1. NIC = NOT INTERNALLY CONNECTED.
08237- Figure 3. ADA4084-1, 8-Lead SOIC (R)
Table 7. 8-Lead SOIC, ADA4084-1 P in Function Descriptions Pin No. Mnemonic Description
1 NIC Not Internally Connected 2 −IN Negative Input 3 +IN Positive Input 4 V− Negative Supply 5 NIC Not Internally Connected 6 OUT Output 7 V+ Positive Supply 8 NIC Not Internally Connected
ADA4084-1 OUT 1 5 V+ V– 2
301
+IN 3 4 –IN
08237- Figure 4. ADA4084-1, 5-Lead SOT-23 (RJ)
Table 8. 5-Lead SOT-23, ADA4084-1 Pin Function Descriptions Pin No. Mnemonic Description
1 OUT Output 2 V− Negative Supply 3 +IN Positive Input 4 −IN Negative Input 5 V+ Positive Supply
OUT A 1 8 V+ –IN A 2 7 OUT B ADA4084-2 +IN A 3 TOP VIEW 6 –IN B (Not to Scale) V– 4 5 +IN B NOTES 1. FOR THE LFCSP PACKAGE,
104
THE EXPOSED PAD MUST BE CONNECTED TO V–.
08237- Figure 5. ADA4084-2, 8-Lead LFCSP (CP)
Table 9. 8-Lead LFCSP, ADA4084-2 P in Function Descriptions Pin No. Mnemonic Description
1 OUT A Output, Channel A 2 −IN A Negative Input, Channel A 3 +IN A Positive Input, Channel A 4 V− Negative Supply 5 +IN B Positive Input, Channel B 6 −IN B Negative Input, Channel B 7 OUT B Output, Channel B 8 V+ Positive Supply EPAD Exposed Pad. For the LFCSP package, the exposed pad must be connected to V−. Rev. I | Page 8 of 36 Document Outline FEATURES APPLICATIONS PIN CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS ±1.5 V CHARACTERISTICS ±5 V CHARACTERISTICS ±15 V CHARACTERISTICS APPLICATIONS INFORMATION FUNCTIONAL DESCRIPTION START-UP CHARACTERISTICS INPUT PROTECTION OUTPUT PHASE REVERSAL DESIGNING LOW NOISE CIRCUITS IN SINGLE-SUPPLY APPLICATIONS COMPARATOR OPERATION LONG-TERM DRIFT TEMPERATURE HYSTERESIS OUTLINE DIMENSIONS ORDERING GUIDE
