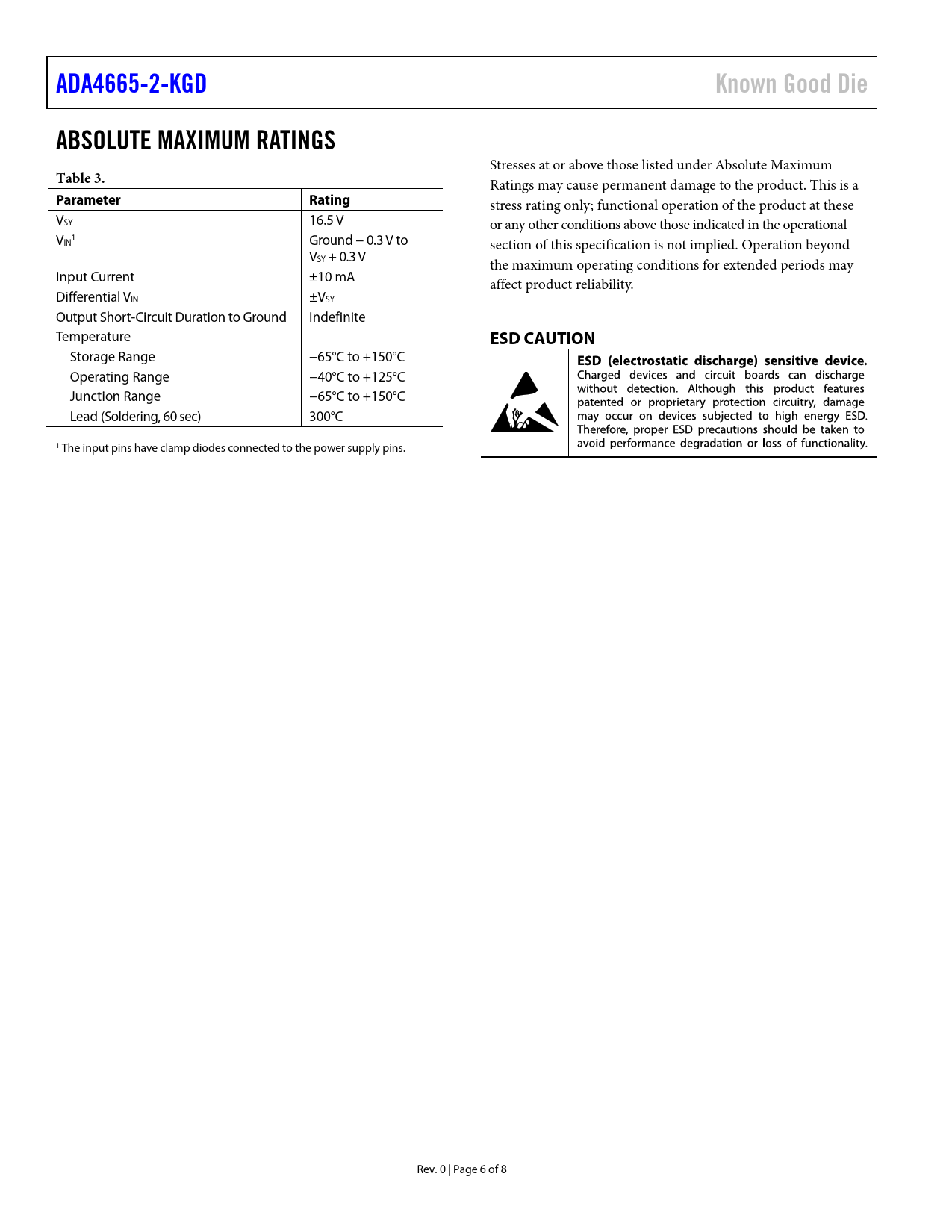

ADA4665-2-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADA4665-2-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 3.
Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these VSY 16.5 V or any other conditions above those indicated in the operational V 1 IN Ground − 0.3 V to section of this specification is not implied. Operation beyond VSY + 0.3 V the maximum operating conditions for extended periods may Input Current ±10 mA affect product reliability. Differential VIN ±VSY Output Short-Circuit Duration to Ground Indefinite Temperature
ESD CAUTION
Storage Range −65°C to +150°C Operating Range −40°C to +125°C Junction Range −65°C to +150°C Lead (Soldering, 60 sec) 300°C 1 The input pins have clamp diodes connected to the power supply pins. Rev. 0 | Page 6 of 8 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—16 V OPERATION ELECTRICAL CHARACTERISTICS—5 V OPERATION ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTION OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
