Datasheet HMC434 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 0.2 GHz to 8 GHz, GaAs, HBT MMIC, Divide by 8 Prescaler |
| Pages / Page | 9 / 5 — Data Sheet. HMC434. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. NIC. … |
| Revision | G |
| File Format / Size | PDF / 348 Kb |
| Document Language | English |

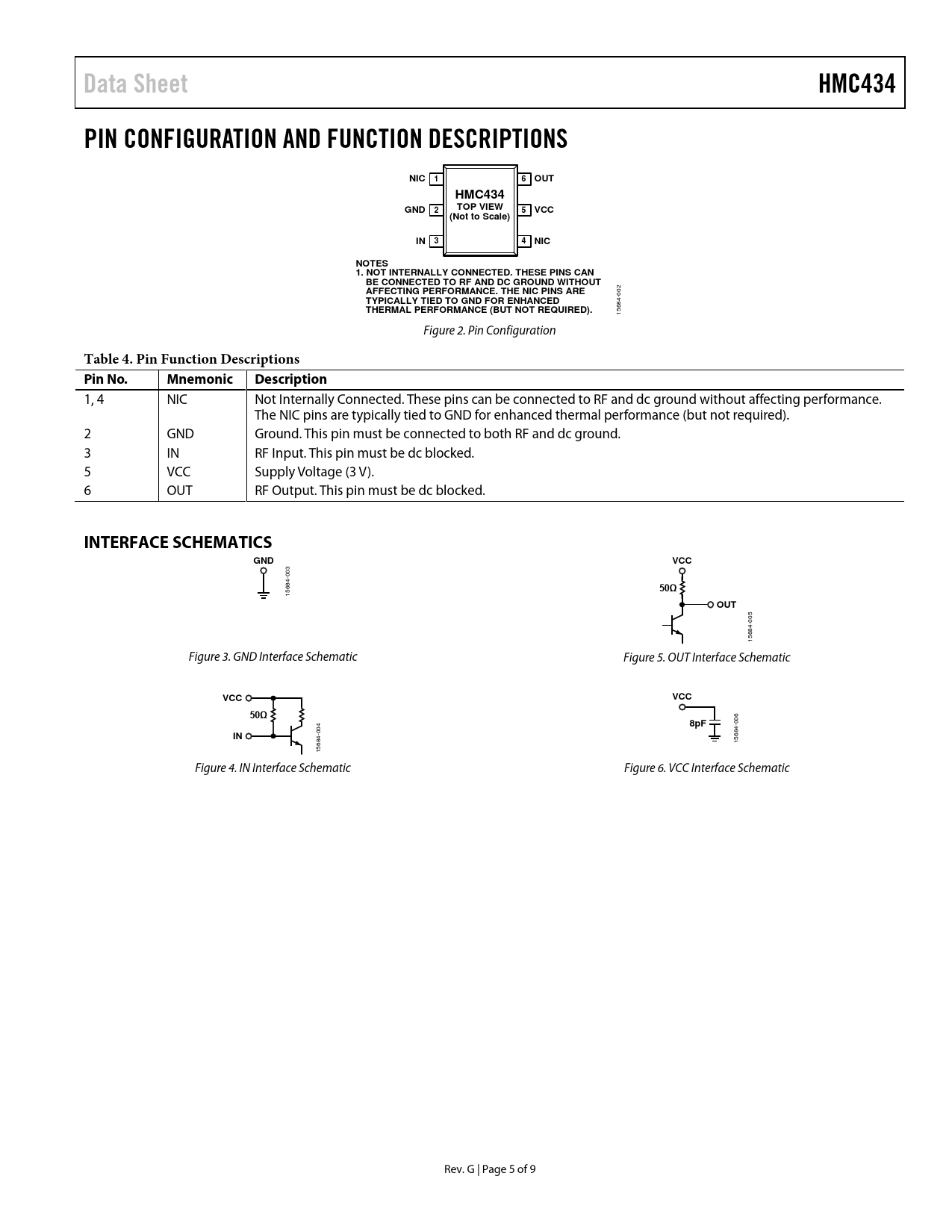

Data Sheet. HMC434. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. NIC. OUT. GND. TOP VIEW. VCC. (Not to Scale)
Model Line for this Datasheet
Text Version of Document
Data Sheet HMC434 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS NIC 1 6 OUT HMC434 GND 2 TOP VIEW 5 VCC (Not to Scale) IN 3 4 NIC NOTES 1. NOT INTERNALLY CONNECTED. THESE PINS CAN BE CONNECTED TO RF AND DC GROUND WITHOUT AFFECTING PERFORMANCE. THE NIC PINS ARE
002
TYPICALLY TIED TO GND FOR ENHANCED THERMAL PERFORMANCE (BUT NOT REQUIRED).
15684- Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1, 4 NIC Not Internally Connected. These pins can be connected to RF and dc ground without affecting performance. The NIC pins are typically tied to GND for enhanced thermal performance (but not required). 2 GND Ground. This pin must be connected to both RF and dc ground. 3 IN RF Input. This pin must be dc blocked. 5 VCC Supply Voltage (3 V). 6 OUT RF Output. This pin must be dc blocked.
INTERFACE SCHEMATICS GND VCC
003
50Ω
15684-
OUT
005 15684- Figure 3. GND Interface Schematic Figure 5. OUT Interface Schematic
VCC VCC 50Ω 8pF
006 004
IN
15684- 15684- Figure 4. IN Interface Schematic Figure 6. VCC Interface Schematic Rev. G | Page 5 of 9 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Applications Information Evaluation Board PCB PCB Material Stackup Outline Dimensions Ordering Guide
