Datasheet LTC5597 (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | 100MHz to 70GHz Linear-in-dB RMS Power Detector with 35dB Dynamic Range |
| Pages / Page | 22 / 4 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| File Format / Size | PDF / 2.3 Mb |
| Document Language | English |
ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC5597
ELECTRICAL CHARACTERISTICS The
l

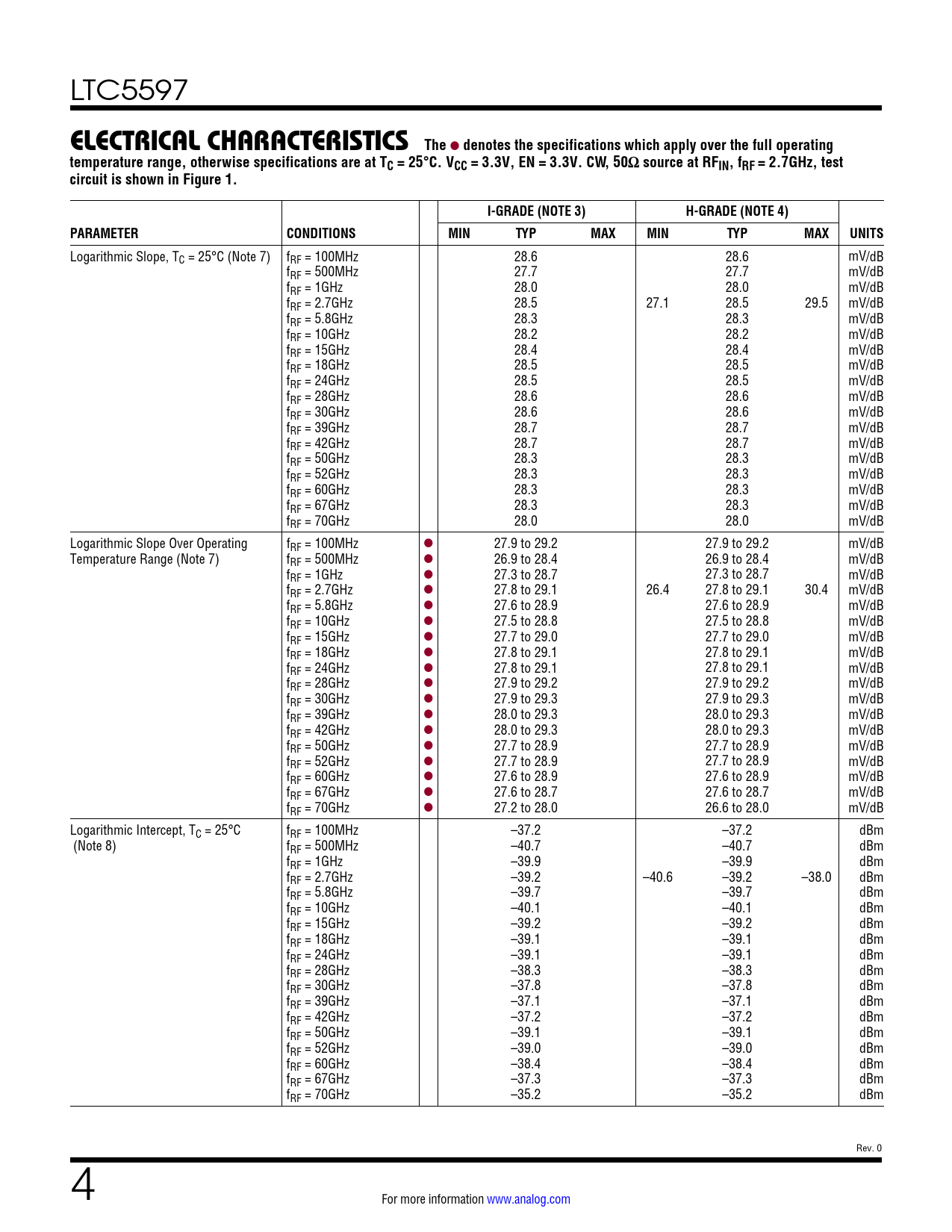

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TC = 25°C. VCC = 3.3V, EN = 3.3V. CW, 50Ω source at RFIN, fRF = 2.7GHz, test circuit is shown in Figure 1. I-GRADE (NOTE 3) H-GRADE (NOTE 4) PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Logarithmic Slope, TC = 25°C (Note 7) fRF = 100MHz 28.6 28.6 mV/dB fRF = 500MHz 27.7 27.7 mV/dB fRF = 1GHz 28.0 28.0 mV/dB fRF = 2.7GHz 28.5 27.1 28.5 29.5 mV/dB fRF = 5.8GHz 28.3 28.3 mV/dB fRF = 10GHz 28.2 28.2 mV/dB fRF = 15GHz 28.4 28.4 mV/dB fRF = 18GHz 28.5 28.5 mV/dB fRF = 24GHz 28.5 28.5 mV/dB fRF = 28GHz 28.6 28.6 mV/dB fRF = 30GHz 28.6 28.6 mV/dB fRF = 39GHz 28.7 28.7 mV/dB fRF = 42GHz 28.7 28.7 mV/dB fRF = 50GHz 28.3 28.3 mV/dB fRF = 52GHz 28.3 28.3 mV/dB fRF = 60GHz 28.3 28.3 mV/dB fRF = 67GHz 28.3 28.3 mV/dB fRF = 70GHz 28.0 28.0 mV/dB Logarithmic Slope Over Operating fRF = 100MHz l 27.9 to 29.2 27.9 to 29.2 mV/dB Temperature Range (Note 7) fRF = 500MHz l 26.9 to 28.4 26.9 to 28.4 mV/dB fRF = 1GHz l 27.3 to 28.7 27.3 to 28.7 mV/dB fRF = 2.7GHz l 27.8 to 29.1 26.4 27.8 to 29.1 30.4 mV/dB fRF = 5.8GHz l 27.6 to 28.9 27.6 to 28.9 mV/dB fRF = 10GHz l 27.5 to 28.8 27.5 to 28.8 mV/dB fRF = 15GHz l 27.7 to 29.0 27.7 to 29.0 mV/dB fRF = 18GHz l 27.8 to 29.1 27.8 to 29.1 mV/dB fRF = 24GHz l 27.8 to 29.1 27.8 to 29.1 mV/dB fRF = 28GHz l 27.9 to 29.2 27.9 to 29.2 mV/dB fRF = 30GHz l 27.9 to 29.3 27.9 to 29.3 mV/dB fRF = 39GHz l 28.0 to 29.3 28.0 to 29.3 mV/dB fRF = 42GHz l 28.0 to 29.3 28.0 to 29.3 mV/dB fRF = 50GHz l 27.7 to 28.9 27.7 to 28.9 mV/dB fRF = 52GHz l 27.7 to 28.9 27.7 to 28.9 mV/dB fRF = 60GHz l 27.6 to 28.9 27.6 to 28.9 mV/dB fRF = 67GHz l 27.6 to 28.7 27.6 to 28.7 mV/dB fRF = 70GHz l 27.2 to 28.0 26.6 to 28.0 mV/dB Logarithmic Intercept, TC = 25°C fRF = 100MHz –37.2 –37.2 dBm (Note 8) fRF = 500MHz –40.7 –40.7 dBm fRF = 1GHz –39.9 –39.9 dBm fRF = 2.7GHz –39.2 –40.6 –39.2 –38.0 dBm fRF = 5.8GHz –39.7 –39.7 dBm fRF = 10GHz –40.1 –40.1 dBm fRF = 15GHz –39.2 –39.2 dBm fRF = 18GHz –39.1 –39.1 dBm fRF = 24GHz –39.1 –39.1 dBm fRF = 28GHz –38.3 –38.3 dBm fRF = 30GHz –37.8 –37.8 dBm fRF = 39GHz –37.1 –37.1 dBm fRF = 42GHz –37.2 –37.2 dBm fRF = 50GHz –39.1 –39.1 dBm fRF = 52GHz –39.0 –39.0 dBm fRF = 60GHz –38.4 –38.4 dBm fRF = 67GHz –37.3 –37.3 dBm fRF = 70GHz –35.2 –35.2 dBm Rev. 0 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Test Circuit Applications Information Package Description Typical Application Related Parts
